Waterproof Binoculars WD76 8x42
The WD76 8x42 is a nitrogen filled roof prism binocular rated IPX7, built for brands that sell into wet weather use. It shares its complete optical system with the non-waterproof version of the same model, so a buyer can run two visually identical SKUs off one proven optical platform. Standard build is BK7 prisms with green+blue coating, a centre focus wheel and twist-up eyecups, and it is not tripod adaptable. The model is manufactured in Chongqing, China, and available in both 8x42 and 10x42 sizes.
| Model | WD76 |
|---|---|
| Magnification | 8x |
| Objective Diameter | 42 mm |
| Prism System | Roof, BK7 or BAK4 optional |
| Coating | Green+blue |
| Waterproof and Fogproof | Yes, nitrogen filled, IPX7 |
| Focus System | Centre focus |
| Eyecups | Twist-up |
| Tripod Adaptable | No |
| Net Weight | 0.610 kg |
| Carton Dimensions | 18x15x7 cm |
| Manufactured In | Chongqing, China |
| Standard Quotation Basis | FOB Chongqing Port |
Key Benefits
Waterproof Binoculars WD76 8x42: IPX7 nitrogen filling keeps the interior dry and fog free in rain, spray and sudden temperature swings
Shares an optical platform with the non-waterproof version, so a second housing style needs no new optical tooling
8x magnification with a 42 mm objective gives a steadier hand-held image than a 10x in low light
Twist-up eyecups let eyeglass wearers set eye relief without removing their glasses
Nitrogen purged body sealed to IPX7 allows use in submersion and severe weather
Carton dimensions of 18x15x7 cm are already fixed, which makes freight and FBA cartonisation predictable
Where It Is Used
Waterproof Binoculars WD76 8x42: Fishing and boat use where spray and rain are constant
Birdwatching in forest and wetland light where a wider exit pupil helps
Hunting and wildlife observation in cold or wet seasons
Hiking and mountain use where fogging inside the barrel would end the day
Marine and coastal watching from shore or deck
Who It Is For
- Optics brands that need a waterproof 8x42 anchor model under their own label
- Importers replacing a non-waterproof 42 mm model that gets returned after rain
- Amazon and e-commerce sellers who need an IPX7 claim they can actually defend
- Outdoor and hunting retail chains building a mid tier house brand
- Buyers who already stock the non-waterproof version and want a waterproof variant
Problems It Solves
Waterproof Binoculars WD76 8x42: Internal fogging that makes a binocular useless within minutes of a temperature change
Returns caused by water ingress in models sold as water resistant but not nitrogen filled
The cost of developing a new optical system when only the inside sealing needs to change
Eye relief complaints from customers who wear glasses
Uncertain carton sizing that breaks a freight or FBA cost model
Technical Features
- Waterproof Binoculars WD76 8x42: Roof prism (DCF) layout with BK7 prisms as the standard build
- Green+blue coating across the optical train
- Nitrogen purged body sealed to IPX7
- Centre focus wheel with a right eye dioptre adjustment
- Twist-up eyecups for use with or without glasses
- Not tripod adaptable, so no adapter thread present
- No tripod adapter included
Materials
- Waterproof Binoculars WD76 8x42: BK7 optical glass prisms as the standard specification
- Green+blue coating on the optical elements
- Nitrogen fill inside a sealed body
- Rubber armour housing, the only part that differs from the non-waterproof version
How It Is Made
Waterproof Binoculars WD76 8x42: Optical element grinding and coating to the agreed green+blue recipe
Prism cementing and alignment
Body assembly on the roof binocular line in the Chongqing factory
Nitrogen purge and sealing
Collimation and image check
IPX7 immersion verification before packing
Quality Control
- Waterproof Binoculars WD76 8x42: Collimation checked on every assembled unit before it leaves the line
- Waterproof verification against the IPX7 rating after nitrogen filling
- In-process checks by Shinyzen staff based twenty minutes from the factory
- Buyer led factory audit and pre shipment inspection can be arranged on request
Customisation Options
- Coating changed from the standard green+blue to all blue or all green
- Prism specification changed between BK7 and BAK4
- Coating on prisms and penta prisms specified separately

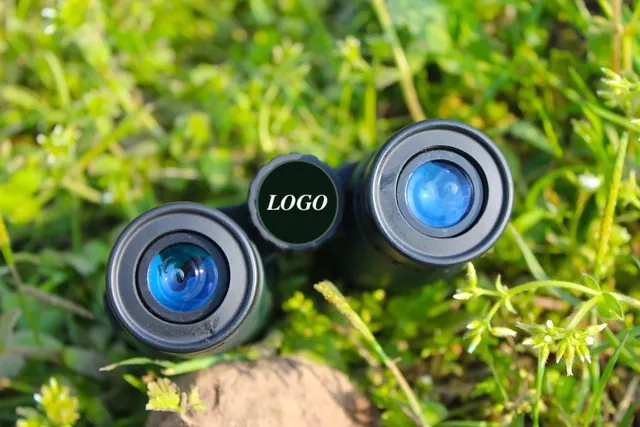

- Own logo, brand name, private label and packing method on the body and packaging
- Packing method and retail box design to the buyer's artwork
- Rubber housing colour, the feature that separates the waterproof from the non-waterproof version
Compared With Other Models
- Non-waterproof version of WD76 8x42
- Identical optical system and identical appearance; the only difference is nitrogen filling and IPX7 sealing, so the waterproof version is not for general use but for wet conditions
- WD76 10x42
- The 10x reaches further but shakes more hand-held and gives a dimmer image at dusk; the 8x is the safer general purpose SKU
- WD67 8x42
- The WD67 has a different housing design and is tripod adaptable; the WD76 is not tripod adaptable and has a different coating standard
- Porro models such as the WP48 10x50
- The porro gathers more light through a 50 mm objective but is bulkier and not waterproof
Use Guide
- Waterproof Binoculars WD76 8x42: Set the barrel spacing until the two images merge into one circle
- Close the right eye and focus the centre wheel until the left image is sharp
- Close the left eye and turn the right dioptre ring until that side matches
- Twist the eyecups down when wearing glasses and up when not
- Rinse salt spray off with fresh water and dry the body before storage
- Do not submerge non-waterproof models; they are only daily-life water resistant
Read Next
Guides
- See the Knowledge Centre
Buyer Types
Questions About the Waterproof Binoculars WD76 8x42
Is the WD76 8x42 really waterproof or only water resistant?
It is nitrogen filled and rated IPX7, which is full waterproof and fogproof in Shinyzen terms. Models described as daily-life water resistant have no nitrogen fill and are a different specification.
What is the difference between the waterproof and non-waterproof version?
They share the same optical system and appearance. The only difference is nitrogen filling and IPX7 sealing, which makes the waterproof version suitable for submersion and severe weather.
Can we put our own brand on it?
Yes. Logo, brand name, private label and packing method are all customisable. Different customisation changes the cost, so send your artwork and we will quote against it.
Can the coating and prism be changed?
Yes. The standard build is green+blue coating with BK7 prisms. All blue or all green coating is available, and BAK4 can replace BK7. Prism and penta prism coatings can be specified separately.
Where is it made and on what terms do you quote?
It is produced in our own factory in Chongqing, China. Quotations are normally based on FOB Chongqing Port unless you ask for other terms.
What are the packing dimensions and weight?
Net weight is 0.610 kg and the box measures 18x15x7 cm. Send your destination and we will work the cartonisation and freight with you.
Can you ship straight to an Amazon warehouse?
Yes. Shipping direct to Amazon warehouses is supported alongside sea freight, air freight and courier.
Quote the Waterproof Binoculars WD76 8x42
Send the quantity, the branding you need and the destination. We reply with a specification sheet and an FOB Chongqing price.
