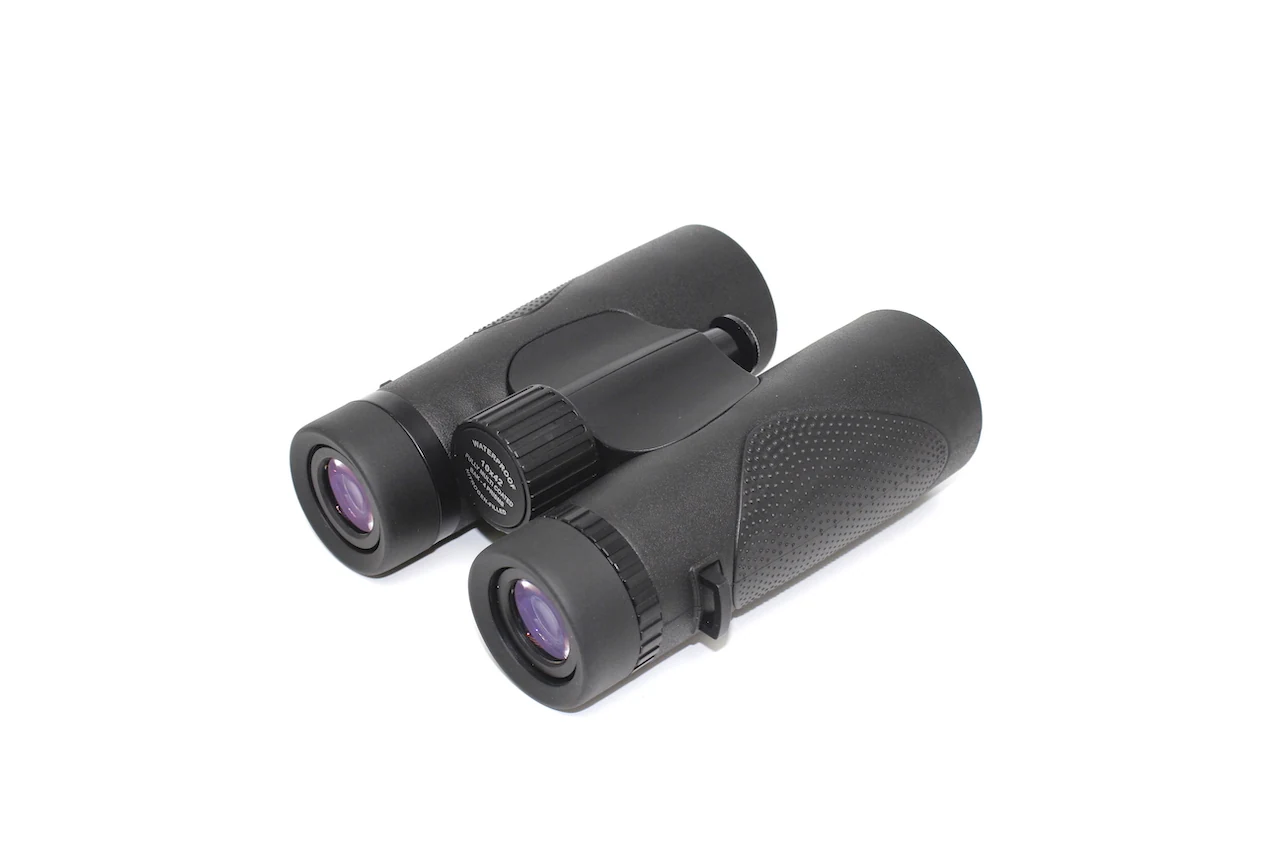

Waterproof Binoculars WD67 10x42
The WD67 10x42 is a nitrogen filled roof prism binocular rated IPX7, built for brands that sell into wet weather or harsh outdoor use. It shares its complete optical system with the WD66 10x42; only the rubber housing differs, so a buyer can run two visually distinct SKUs off one proven optical platform. Standard build is BAK4 roof prisms with FMC broad band green coating, a centre focus wheel and twist-up eyecups, and it takes a tripod adapter for long static sessions.
| Model | WD67 |
|---|---|
| Magnification | 10x |
| Objective Diameter | 42 mm |
| Prism System | Roof, BAK4 |
| Coating | FMC broad band green |
| Waterproof and Fogproof | Yes, nitrogen filled, IPX7 |
| Focus System | Centre focus |
| Eyecups | Twist-up |
| Tripod Adaptable | Yes |
| Net Weight | 0.567 kg |
| Carton Dimensions | 18x15x7 cm |
| Manufactured In | Chongqing, China |
| Standard Quotation Basis | FOB Chongqing Port |
Key Benefits
WD67 10x42: IPX7 nitrogen filling keeps the interior dry and fog free in rain, spray and sudden temperature swings
Shares an optical platform with the WD66 10x42, so a second housing style needs no new optical tooling
10x magnification gives greater reach than 8x in daylight observation
Twist-up eyecups let eyeglass wearers set eye relief without removing their glasses
Tripod adaptable, so the same SKU serves hand-held birding and static observation
Carton dimensions of 18x15x7 cm are already fixed, which makes freight and FBA cartonisation predictable
Where It Is Used
WD67 10x42: Fishing and boat use where spray and rain are constant
Birdwatching in open fields and wetlands where long range is needed
Hunting and wildlife observation in cold or wet seasons
Hiking and mountain use where fogging inside the barrel would end the day
Marine and coastal watching from shore or deck
Who It Is For
- Optics brands that need a waterproof 10x42 model under their own label
- Importers replacing a non-waterproof 42 mm model that gets returned after rain
- Amazon and e-commerce sellers who need an IPX7 claim they can actually defend
- Outdoor and hunting retail chains building a mid tier house brand
- Buyers who already stock the WD66 and want a second housing design
Problems It Solves
WD67 10x42: Internal fogging that makes a binocular useless within minutes of a temperature change
Returns caused by water ingress in models sold as water resistant but not nitrogen filled
The cost of developing a new optical system when only the outside styling needs to change
Eye relief complaints from customers who wear glasses
Uncertain carton sizing that breaks a freight or FBA cost model
Technical Features
- WD67 10x42: Roof prism (DCF) layout with BAK4 prisms as the standard build
- FMC broad band green multi coating across the optical train
- Nitrogen purged body sealed to IPX7
- Centre focus wheel with a right eye dioptre adjustment
- Twist-up eyecups for use with or without glasses
- Tripod adaptable through a standard adapter thread
Materials
- WD67 10x42: BAK4 optical glass prisms as the standard specification
- Rubber armour housing, the only part that differs from the WD66 10x42
- Nitrogen fill inside a sealed body
How It Is Made
WD67 10x42: Optical element grinding and coating to the agreed FMC recipe
Prism cementing and alignment
Body assembly on the roof binocular line in the Chongqing factory
Nitrogen purge and sealing
Collimation and image check
IPX7 immersion verification before packing
Quality Control
- WD67 10x42: Collimation checked on every assembled unit before it leaves the line
- Waterproof verification against the IPX7 rating after nitrogen filling
- In-process checks by Shinyzen staff based twenty minutes from the factory
- Buyer led factory audit and pre shipment inspection can be arranged on request
Customisation Options
- Coating changed from the standard FMC green to all blue or part green
- Prism specification changed between BAK4 and BK7
- Coating on prisms and penta prisms specified separately
- Own logo, brand name and private label on the body and packaging
- Packing method and retail box design to the buyer's artwork
- Rubber housing colour, the feature that separates WD67 from WD66
Compared With Other Models
- WD66 10x42
- Identical optical system and identical performance; choose between them on housing design, not on image quality
- WD67 8x42
- The 8x gives a steadier hand-held image in low light and is less affected by hand shake; the 10x reaches further but is dimmer and more shaky
- Non-waterproof roof models such as the SRB03 10x42
- The SRB03 is daily-life water resistant with BK7 prisms and costs less; it is not nitrogen filled and will fog in a real downpour
- Porro models such as the WP48 10x50
- The porro gathers more light through a 50 mm objective but is bulkier and not waterproof
Use Guide
- WD67 10x42: Set the barrel spacing until the two images merge into one circle
- Close the right eye and focus the centre wheel until the left image is sharp
- Close the left eye and turn the right dioptre ring until that side matches
- Twist the eyecups down when wearing glasses and up when not
- Mount on a tripod through an adapter for observation sessions longer than a few minutes
- Rinse salt spray off with fresh water and dry the body before storage
Read Next
Questions About the Waterproof Binoculars WD67 10x42
Is the WD67 10x42 really waterproof or only water resistant?
It is nitrogen filled and rated IPX7, which is full waterproof and fogproof in Shinyzen terms. Models described as daily-life water resistant have no nitrogen fill and are a different specification.
What is the difference between the WD67 and the WD66?
The optical system is exactly the same. The difference is the design of the rubber housing, so the two models look different but perform identically.
Can we put our own brand on it?
Yes. Logo, brand name, private label and packing method are all customisable. Different customisation changes the cost, so send your artwork and we will quote against it.
Can the coating and prism be changed?
Yes. The standard build is FMC broad band green coating with BAK4 prisms. All blue or part green coating is available, and BK7 can replace BAK4. Prism and penta prism coatings can be specified separately.
Where is it made and on what terms do you quote?
It is produced in our own factory in Chongqing, China. Quotations are normally based on FOB Chongqing Port unless you ask for other terms.
What are the packing dimensions and weight?
Net weight is 0.567 kg and the box measures 18x15x7 cm. Send your destination and we will work the cartonisation and freight with you.
Can you ship straight to an Amazon warehouse?
Yes. Shipping direct to Amazon warehouses is supported alongside sea freight, air freight and courier.
Quote the Waterproof Binoculars WD67 10x42
Send the quantity, the branding you need and the destination. We reply with a specification sheet and an FOB Chongqing price.
