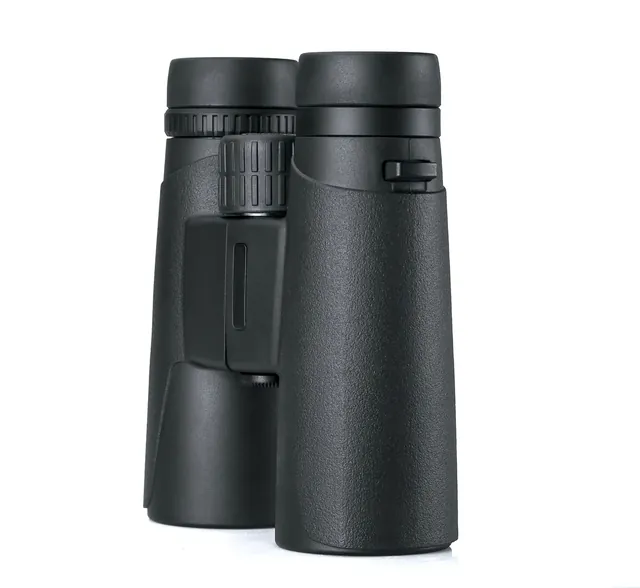

SRB03 Cheap 10x42 Roof Binoculars with Modern Outlook
The SRB03 10x42 is a non-waterproof roof prism binocular with a modern black housing and twist-up eyecups. It uses BK7 prisms and a centre focus system, and is designed for brands seeking a low-cost 10x42 option with a clean, contemporary look. The model is not nitrogen filled and is rated for daily-life water resistance only.
| Model | SRB03 |
|---|---|
| Magnification | 10x |
| Objective Diameter | 42 mm |
| Prism System | Roof, BK7 |
| Waterproof and Fogproof | No, daily-life water resistant only |
| Focus System | Centre focus |
| Eyecups | Twist-up |
| Tripod Adaptable | Yes |
| Net Weight | 0.610 kg |
| Carton Dimensions | 18x15x7 cm |
| Manufactured In | Chongqing, China |
| Standard Quotation Basis | FOB Chongqing Port |
Key Benefits
10x magnification gives greater reach than 8x models for distant viewing
Modern black housing with single hinge design offers a clean, current appearance
SRB03 10x42: Twist-up eyecups allow use with or without glasses
Tripod adaptable through a standard adapter thread
Carton dimensions of 18x15x7 cm are fixed, which supports predictable freight and FBA cartonisation
Where It Is Used
Casual birdwatching in dry, stable weather where light weight and reach matter
Hiking and sightseeing where a modern look appeals to younger users
Outdoor education programs for children aged 4 years and up, where cost is a factor
Retail chains building a low-cost house brand with a contemporary design
E-commerce sellers who need a 10x42 SKU with a modern aesthetic but no waterproof claim
Who It Is For
- Optics brands that need a low-cost 10x42 anchor model under their own label
- Importers replacing a higher-cost model with a budget-friendly alternative
- Amazon and e-commerce sellers who want a modern-looking 10x42 without IPX7 claims
- Outdoor and nature retailers building a value line for entry-level buyers
- Buyers who already stock the WD66 8x42 and want a higher magnification option
Problems It Solves
High cost of a 10x42 model with BAK4 prisms and nitrogen fill
The need for a modern-looking binocular that does not claim waterproof performance
The risk of returns due to fogging in temperature changes when a model is falsely claimed as fogproof
The cost of tooling for a new optical platform when only the housing needs to change
Uncertain carton sizing that disrupts freight or FBA planning
Technical Features
- SRB03 10x42: Roof prism (DCF) layout with BK7 prisms as the standard build
- Centre focus wheel with a right eye dioptre adjustment
- Twist-up eyecups for use with or without glasses
- Tripod adaptable through a standard adapter thread
- Non-waterproof, daily-life water resistant only, no nitrogen fill
- Black rubber housing with single hinge design
Materials
- SRB03 10x42: BK7 optical glass prisms as the standard specification
- Black rubber armour housing with single hinge design
- Plastic body and lens barrels with no nitrogen fill
How It Is Made
Optical element grinding and coating to standard specifications
SRB03 10x42: Prism cementing and alignment using BK7 prisms
Body assembly on the roof binocular line in the Chongqing factory
Centre focus wheel and eyecup installation
Final visual inspection and packaging
Quality Control
- SRB03 10x42: Collimation checked on every assembled unit before it leaves the line
- In-process checks by Shinyzen staff based twenty minutes from the factory
- Buyer led factory audit and pre shipment inspection can be arranged on request
- No IPX7 or nitrogen purge verification, as the model is not rated for waterproofing
Customisation Options
- Coating changed from the standard FMC green to all blue or part green
- Prism specification changed between BAK4 and BK7
- Coating on prisms and penta prisms specified separately
- Own logo, brand name and private label on the body and packaging
- Packing method and retail box design to the buyer's artwork
- Rubber housing colour, the feature that separates this model from others
Compared With Other Models
- WD67 10x42
- The WD67 is nitrogen filled and IPX7 rated; the SRB03 is not, and is only daily-life water resistant
- WD66 8x42
- The WD66 is 8x magnification with better hand-held stability and a wider exit pupil; the SRB03 is 10x but shakes more and performs worse in low light
- SRB03 8x42
- The 8x42 has lower magnification but better image stability and a brighter image in low light; the 10x42 reaches further but is less steady
- Porro models such as the WP48 10x50
- The porro gathers more light through a 50 mm objective but is bulkier and not waterproof; the SRB03 is lighter and more compact
Use Guide
- SRB03 10x42: Set the barrel spacing until the two images merge into one circle
- Close the right eye and focus the centre wheel until the left image is sharp
- Close the left eye and turn the right dioptre ring until that side matches
- Twist the eyecups down when wearing glasses and up when not
- Mount on a tripod through an adapter for observation sessions longer than a few minutes
- Wipe off dust and fingerprints with a soft cloth; avoid submerging in water
Read Next
Questions About the SRB03 Cheap 10x42 Roof Binoculars with Modern Outlook
Is the SRB03 10x42 waterproof or only water resistant?
It is not nitrogen filled and is rated for daily-life water resistance only. It is not IPX7 rated and will fog or fail in rain or sudden temperature changes.
What is the prism type and can it be changed?
The standard build uses BK7 prisms. BAK4 can be used instead. Both are available as a customisation option.
Can we put our own brand on it?
Yes. Logo, brand name, private label and packing method are all customisable. Send your artwork and we will quote accordingly.
Can the coating be changed?
Yes. The standard is FMC broad band green. All blue or part green coating is available. Prism and penta prism coatings can be specified separately.
Where is it made and on what terms do you quote?
It is produced in our own factory in Chongqing, China. Quotations are normally based on FOB Chongqing Port unless you request other terms.
What are the packing dimensions and weight?
Net weight is 0.610 kg and the box measures 18x15x7 cm. Send your destination and we will work the cartonisation and freight with you.
Can you ship straight to an Amazon warehouse?
Yes. Shipping direct to Amazon warehouses is supported alongside sea freight, air freight and courier.
Quote the SRB03 Cheap 10x42 Roof Binoculars with Modern Outlook
Send the quantity, the branding you need and the destination. We reply with a specification sheet and an FOB Chongqing price.
