Qsafe Laryngeal Masks
The Qsafe Laryngeal Mask is a supraglottic airway with an integrated bite block that prevents the tube collapsing if the patient bites down, and a gastric channel for a drainage tube. Sizes…
Product Overview
The Qsafe Laryngeal Mask is a supraglottic airway with an integrated bite block that prevents the tube collapsing if the patient bites down, and a gastric channel for a drainage tube. Sizes 1 to 5 start at size 1 for neonates and infants up to 5 kg, with maximum cuff inflation from 5 ml at size 1 to 40 ml at size 5, and gastric tube capacity from 6Fr to 14Fr. It is used for anaesthesia, emergency and resuscitation.

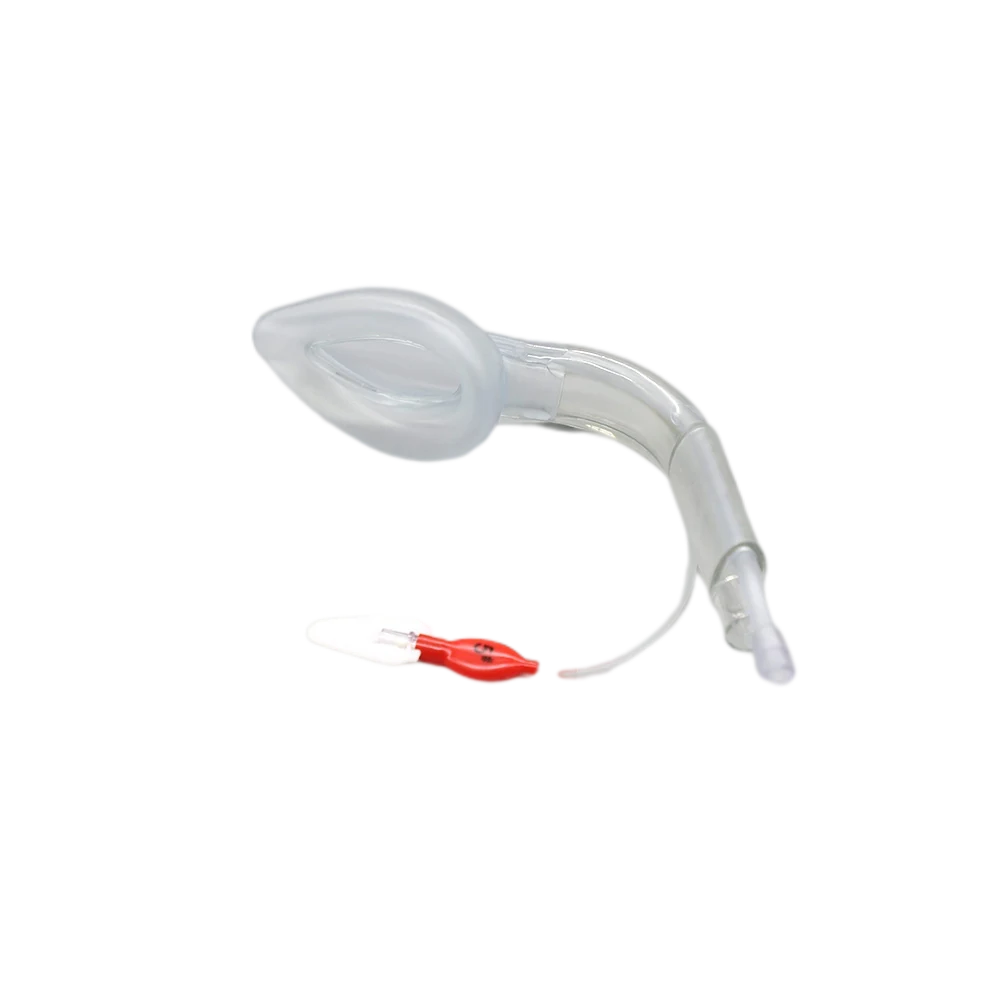

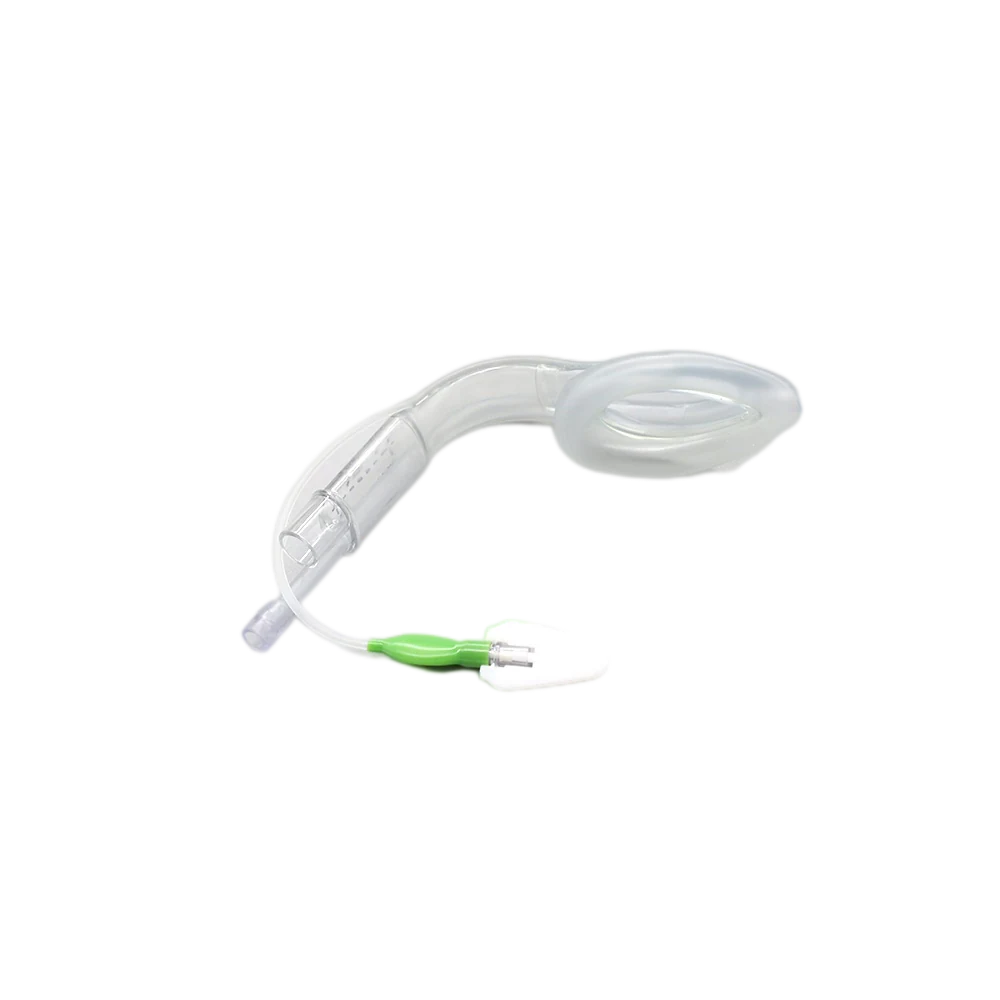

Product Photography
Photographed from the item we ship, not from a rendering.
Key Benefits
- Integrated bite block prevents the airway collapsing under bite pressure
- Gastric channel takes a drainage tube up to 14Fr on sizes 3 to 5
- Five sizes from neonates up to 5 kg through large adult
- Defined maximum cuff inflation volume printed for each size
Problems It Solves
- Airway collapse when a patient bites during emergence
- No route to decompress the stomach through a supraglottic airway
- Cuff over-inflation because the maximum volume is not known
Who It Is For
- Anaesthesia department and theatre buyers
- Emergency and resuscitation trolley stores
- Distributors supplying supraglottic airway devices
Application Scenarios
- General anaesthesia with a supraglottic airway
- Emergency airway management and resuscitation
- Difficult airway rescue where intubation has failed
Specifications
Every figure below is taken from the product specification we supply. Where a value is not listed it is confirmed at quotation rather than estimated here.
| Size | 1, 2, 3, 4, 5, etc. |
|---|---|
| Patient Size | Size 1 for Neonates/infants up to 5kg |
| Max Cuff Inflation volume | Size 1-5ml, Size 2-12ml, Size 3-25ml, Size 4-30ml, Size 5-40ml |
| Max Gastric Tube | Size 1-6Fr, Size 2-10Fr, Size 3, 4, 5-14Fr |
| Features | Integrated bite block prevents collapsion |
| Intended Use | Qsafe Laryngeal Mask is used for anesthesia, emergency and resuscitation. |
Customisation Options
- Size 1, 2, 3, 4 or 5
- Carton quantity on request
- Own-label packing and printing
Use Guide
- Select the size by patient weight, starting at size 1 for up to 5 kg
- Insert along the hard palate until resistance is felt
- Inflate the cuff up to but not beyond the maximum volume for that size
- Pass a gastric tube through the drainage channel within the Fr limit for the size
Compared With Other Options
| Disposable PVC Laryngeal Mask | The plain PVC mask is the lower cost option. Qsafe adds an integrated bite block and a gastric drainage channel. |
|---|
Related Products In Laryngeal Mask
Reusable Silicone Laryngeal Mask Airway
This reusable silicone laryngeal mask is designed to be sterilised and used up to 40 times, so the cost per case…
View Product →
Disposable Reinforced Silicone Laryngeal Mask
The disposable reinforced silicone laryngeal mask combines medical grade silicone with a reinforced airway tube, so…
View Product →
Disposable Silicone Laryngeal Mask
The disposable silicone laryngeal mask is a single use supraglottic airway in medical grade silicone, chosen where…
View Product →
Disposable PVC Laryngeal Mask
The disposable PVC laryngeal mask is the volume option in the supraglottic airway range, made from medical grade PVC…
View Product →Questions About The Qsafe Laryngeal Masks
Which sizes are available?
1, 2, 3, 4 and 5.
What patient size is size 1 for?
Neonates and infants up to 5 kg.
What are the maximum cuff inflation volumes?
5 ml at size 1, 12 ml at size 2, 25 ml at size 3, 30 ml at size 4 and 40 ml at size 5.
What gastric tube can pass through it?
6Fr at size 1, 10Fr at size 2 and 14Fr at sizes 3, 4 and 5.
What does the bite block do?
It is integrated into the device and prevents the airway collapsing if the patient bites down.
What is it used for?
Anaesthesia, emergency and resuscitation.
