2 products in this category
Photoengraving Magnesium Plate for Fast Etching
Magnesium plate for photochemical etching and engraving, lighter than zinc and faster to etch, with blue photoresist coating and green anti-acid backing or a highly polished uncoated surface.
The range
Every Photoengraving Magnesium Plate SGZ Supplies
Coated Magnesium Plate

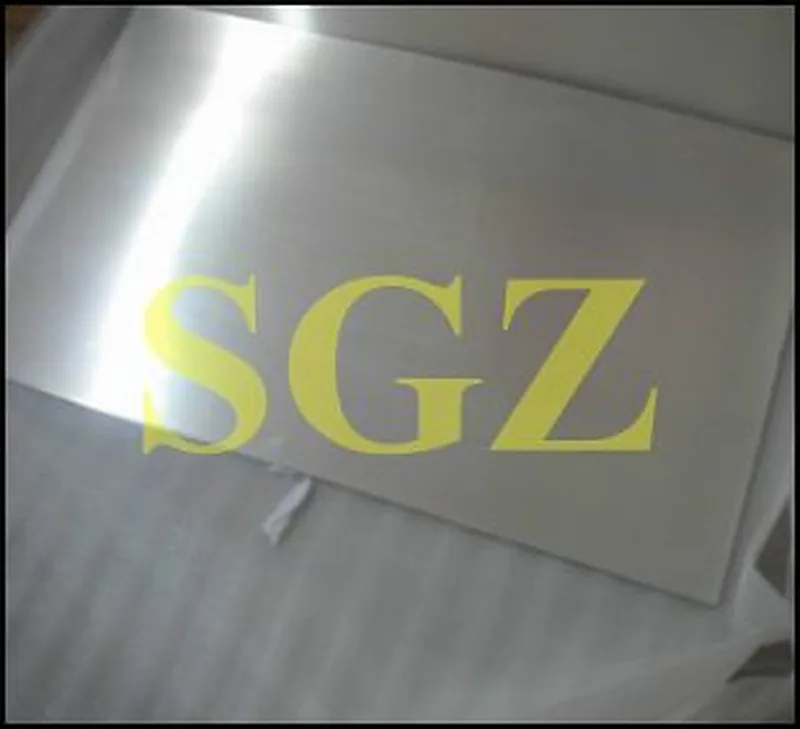

Uncoated Magnesium Plate
The problem
What This Category Is For
Long etch cycles tie up the machine and heat the bath. Magnesium removes metal faster than zinc at the same additive concentration, so the same powderless machine turns out more plates per shift.
Who buys it
- Etching houses running high plate volumes
- Hot-foil stamping and embossing die makers
- Letterpress and flexographic plate makers
- Tooling shops needing light, stable plate stock
Core advantages
Why Buyers Specify SGZ Here
Faster than zinc
Magnesium etches faster and weighs less than zinc plate of the same size, which shortens bath time and makes handling easier.
Blue hydro coating
Coated plate ships with a blue photoresist front free of bubbles and scratches, and a green anti-acid painted back.
Large formats
Uncoated highly polished plate runs up to 2000 mm long and 1500 mm wide, from 0.5 mm thick.
Low manganese option
Magnesium plate with low manganese content gives cleaner etched shoulders.
Industries That Use It
Industry
Awards Medals and Trophies
Award work is the part of the SGZ programme where the etched part itself is the product. Medals, championship belt plates and...
Read more →
Industry
Commercial Printing and Publishing
Banner and wall-calendar work is where SGZ plate started. Zinc, magnesium and copper photoengraving plate, the developer that...
Read more →
Industry
Signage Nameplates and Metal Cards
Nameplates, labels and metal cards are small etched or engraved parts where the metal is visible in the finished product. SGZ...
Read more →
Industry
Vibration Testing and Tooling
Magnesium is specified for tooling when damping, weight and dimensional stability matter more than raw strength. SGZ magnesium...
Read more →Related Sample Work
Sample work
Etched Wrestling Championship Belt Plate
A championship belt plate is much larger and deeper than a medal, with a wide field of detail that has to etch evenly from the...
Read more →
Sample work
Etched Stainless Steel Embossing Plates
An embossing plate is a tool, not a finished part. The pattern has to repeat without a visible seam, and stainless steel is...
Read more →Answers
Photoengraving Magnesium Plate Questions
Why choose magnesium over zinc?
Magnesium is lighter and etches faster than zinc, which shortens bath time and makes large plates easier to handle.
What sizes are stocked?
500 x 1000 mm, 610 x 457 mm and 610 x 914 mm. Other sizes are made to request.
How thick can the coated magnesium plate be?
From 1.0 mm to 10 mm.
Which additive do I need?
A magnesium grade: X-Flex (Fuji Hunt, model E004) or Rev-Flex (MEL, model E003). Zinc additives are not interchangeable.
Can I see it etched before I order?
Yes. SGZ opened a magnesium plate etching demonstration workshop in December 2016 and publishes a complete etching video.
How large can this plate be supplied?
Up to 2000 mm long and 1500 mm wide.
Guides for This Category
Buying Guide
How to Choose an Etching Additive Oil
Four etching additive grades from SGZ: Velv-Etch E002 and the SGZ house oil for zinc, X-Flex E004 and Rev-Flex E003 for...
Read more →
Specification Guide
Plate Size and Thickness Guide
Every SGZ plate size and thickness in one table: zinc, magnesium, brass, copper and magnesium tooling plate, with the maximum...
Read more →Material Guide
Why Shops Move From Zinc to Magnesium Plate
Magnesium plate is lighter and etches faster than zinc, goes to 10 mm coated and 2000x1500 mm uncoated, and needs a...
Read more →Get a Price on Photoengraving Magnesium Plate

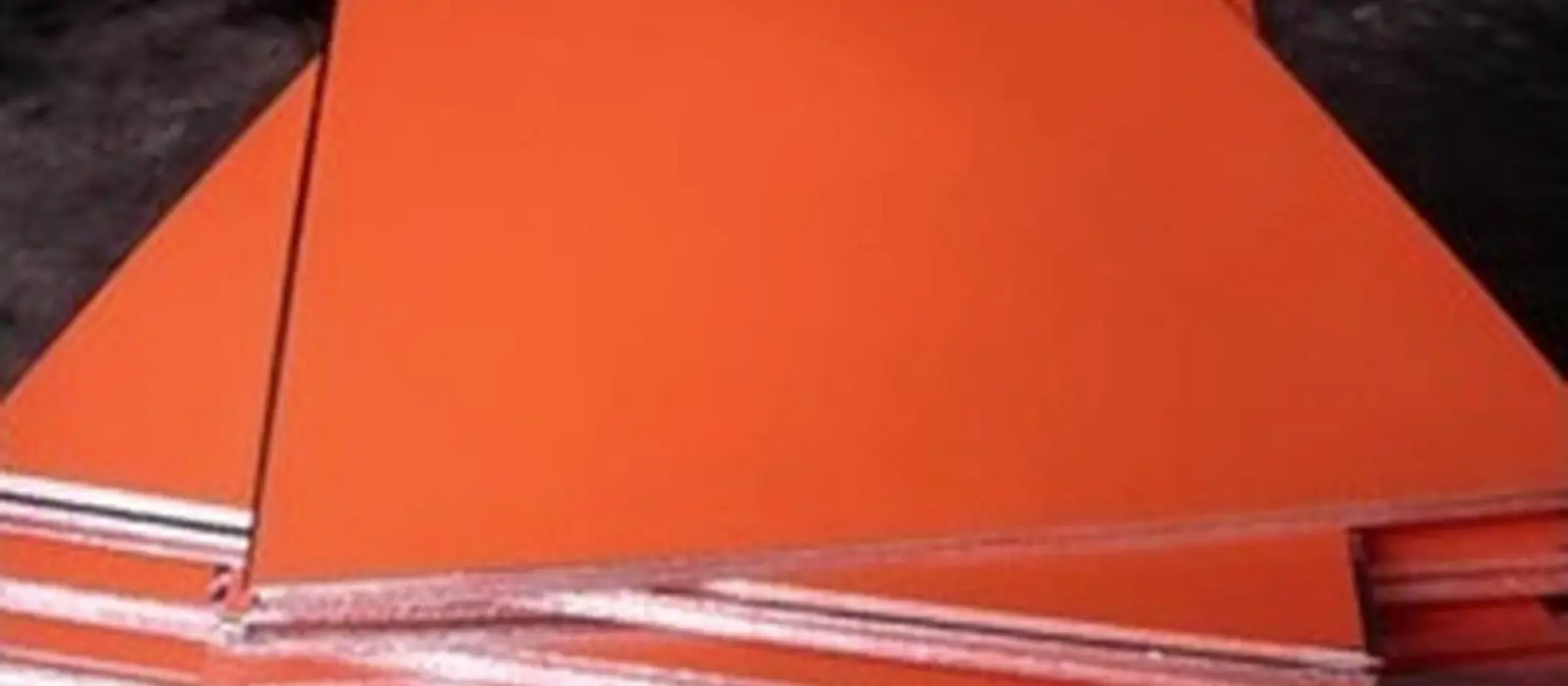

Send the size, thickness and quantity you need. SGZ quotes direct from the factory in Foshan.
