6.00G-16

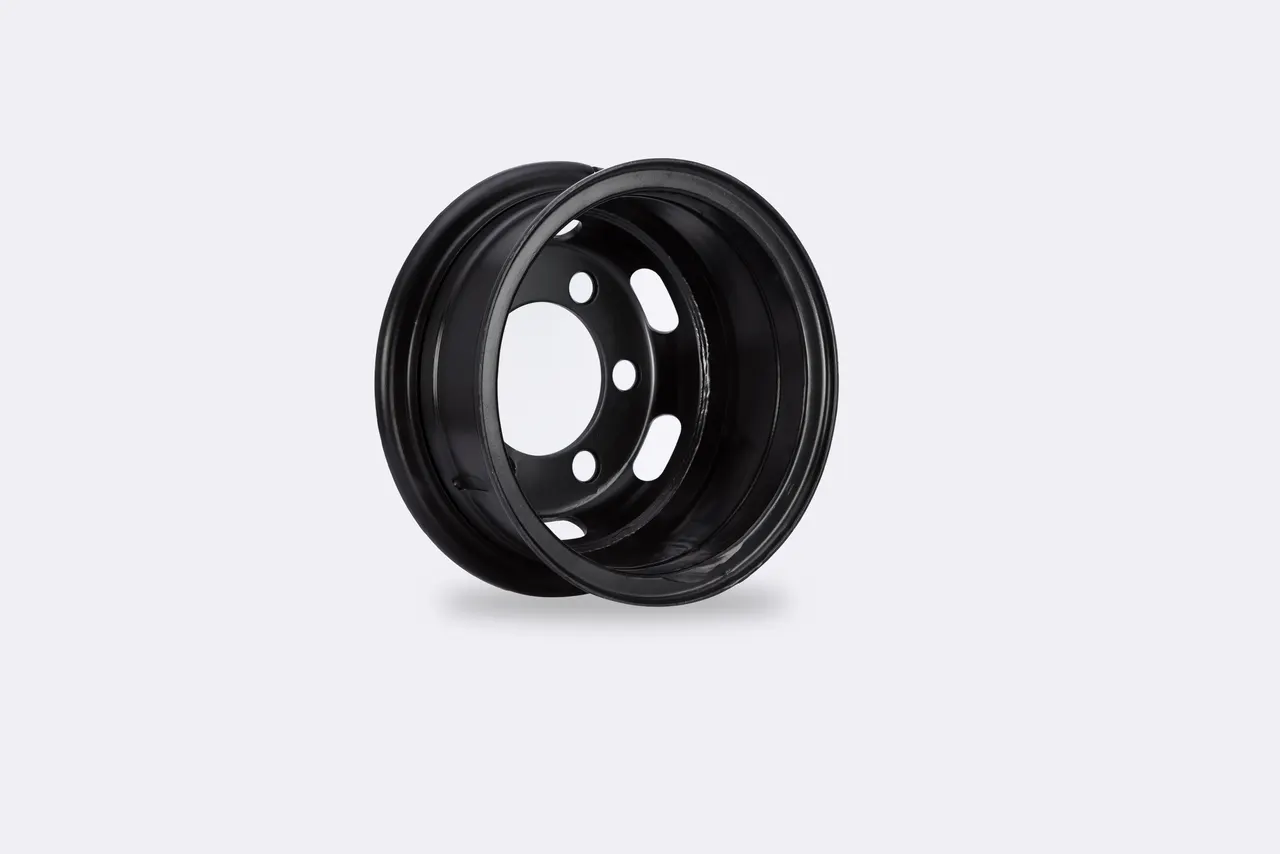

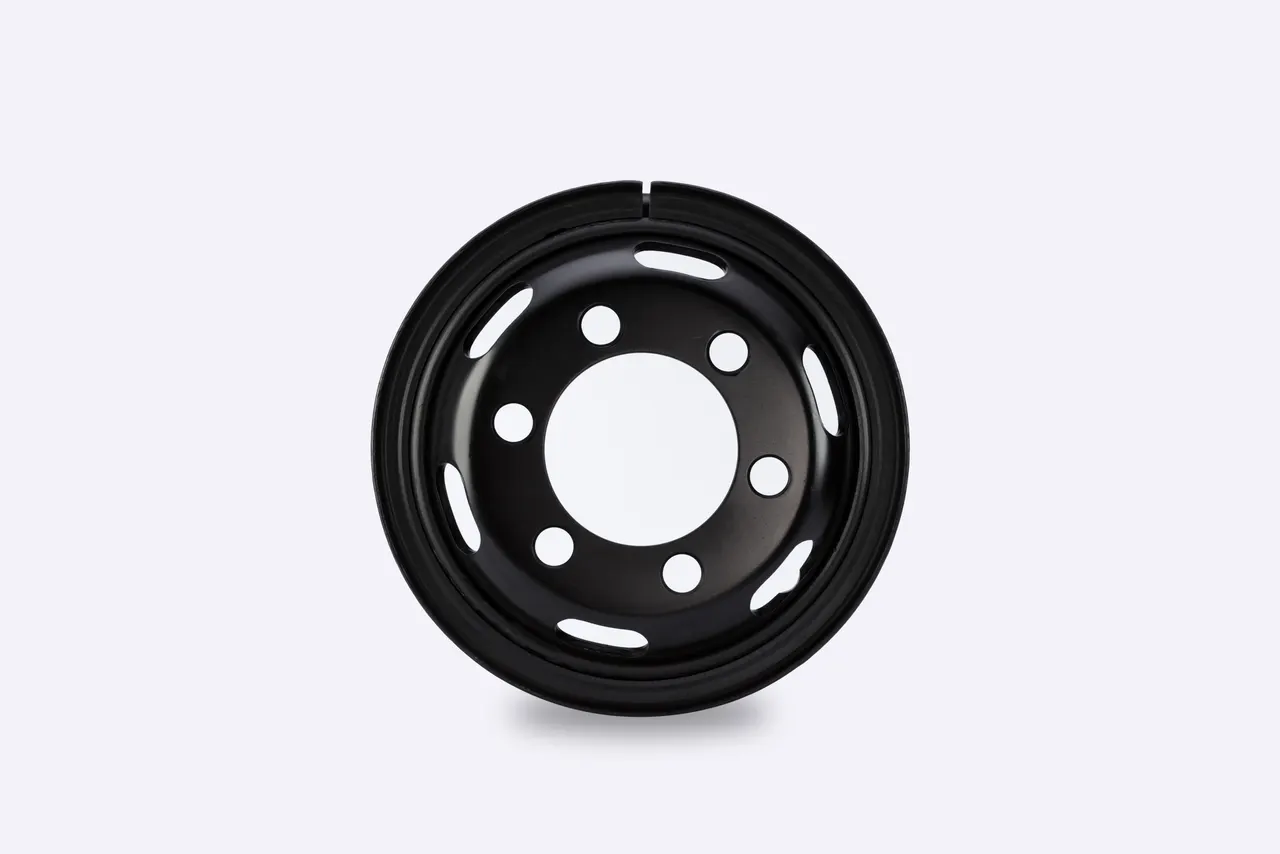

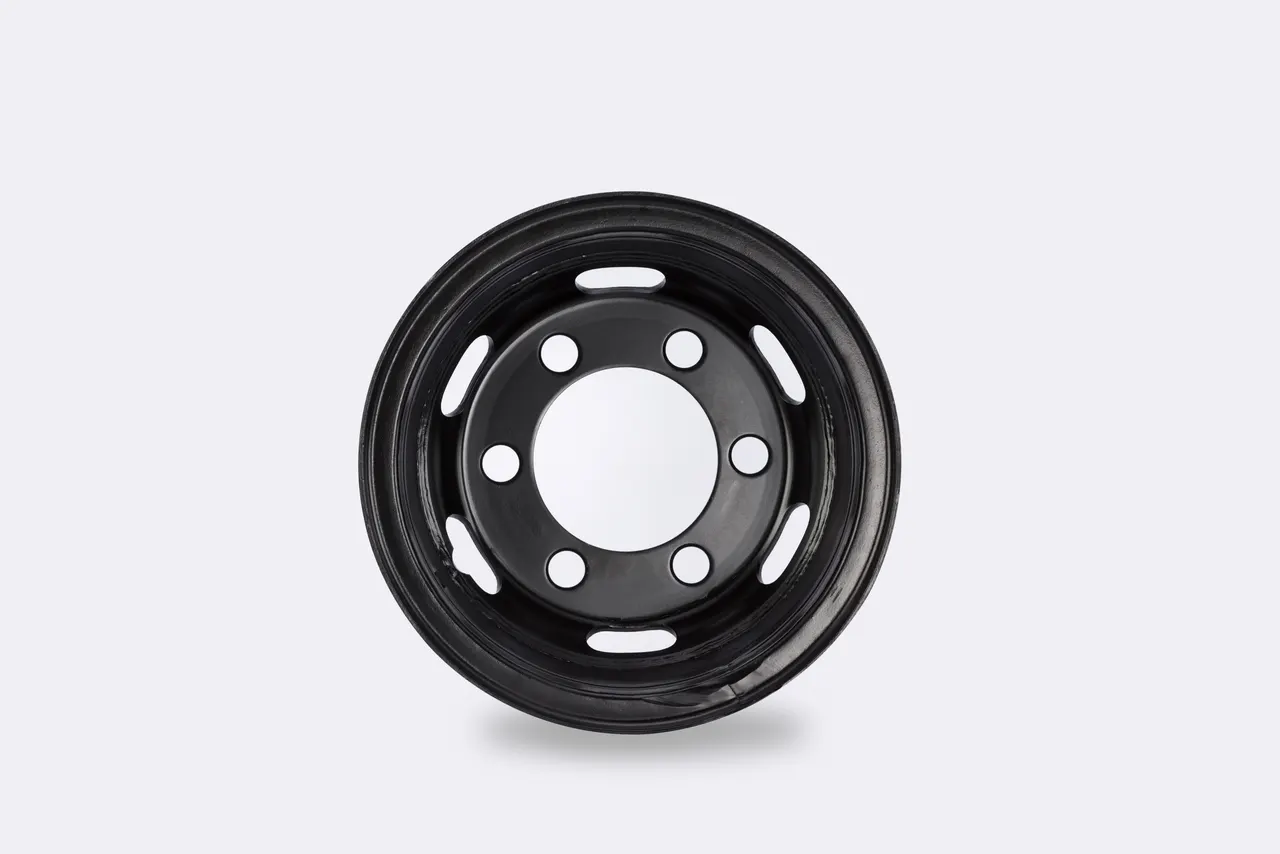

6.00G-16 is a section steel rim designed for medium-duty truck and bus applications, featuring a 6.00G-16 profile with a 120 mm offset and a 6-bolt pattern. It supports a rated load of 1450
Overview
6.00G-16 is a section steel rim designed for medium-duty truck and bus applications, featuring a 6.00G-16 profile with a 120 mm offset and a 6-bolt pattern. It supports a rated load of 1450 kg and is compatible with a range of standard truck wheel assemblies. The rim is built for durability in mixed road conditions and consistent performance under regular load cycles.
- ISO9001
- ISO/TS16949
- CCC
- E-mark
- DOT
- GSO/GCC
- SONCAP
- INMETRO
- NOM
What 6.00G-16 Gives the Operator
120 mm offset provides balanced clearance and stability on axle mounting
6-bolt pattern with φ222.25 PCD ensures compatibility with common truck wheel hubs
1×45° screw hole type allows secure fastening with standard wheel nuts
φ164 center hole fits a wide range of hub types used in commercial vehicles
Wind hole type 6-30×80 supports even load distribution and heat dissipation
Application Scenarios
- Medium-duty trucks operating on paved and lightly graded roads with regular loading
- Urban and regional delivery fleets using standard 16-inch wheel assemblies
- Buses and coaches running on mixed road surfaces with consistent axle loading
Who It Is For
- Importers sourcing standard section steel rims for truck and bus fleets
- Distributors stocking rims for repair and replacement in commercial vehicle workshops
- Fleet operators replacing worn rims on medium-duty trucks with a proven fit
What It Is Meant To Fix
Mismatched rim offset causing wheel alignment issues and uneven wear
Incompatible bolt patterns leading to installation delays and safety risks
Poor load distribution from incorrect center hole size or wind hole design
Rims that fail under repeated loading due to weak structural profile
Published Data For 6.00G-16
These are the figures published for this product. Anything not listed here is confirmed in writing before an order.
- Model6.00G-16
- Rated Load1450kg
- Distributed Circle (PCD)φ222.25
- Bolt Hole6-φ24
- Center Holeφ164
- Screw Hole Type1×45°
- Offset120
- Wind Hole Type6-30×80
Technical Features
- 6.00G-16 rim profile with 120 mm offset for optimal wheel positioning
- 6-bolt pattern with φ222.25 PCD and φ24 bolt hole diameter
- Center hole of φ164 mm for hub compatibility
- Screw hole type 1×45° for secure fastening and torque retention
- Wind hole type 6-30×80 for balanced load transfer and structural integrity
Customisation
- Rims can be supplied with custom markings or logos on request
- Packing options available to suit container loading and export requirements
Quality Control
- Dimensional checks performed on every rim during production
- Surface finish inspected for cracks, burrs, and welding defects
- Manufactured under ISO9001 and ISO/TS16949 quality systems
How It Compares
- Compared with An aluminium rim6.00G-16 is more cost-effective and robust under heavy load, though heavier than aluminium alternatives
Getting the Most Out Of It
- Ensure the rim is matched to the correct wheel hub and bolt pattern before installation
- Verify the center hole size and offset to prevent misalignment and vibration
- Use torque specifications recommended by the vehicle manufacturer when tightening wheel nuts
- Inspect the rim for damage or deformation after impact or long-term use
6.00G-16 Questions
What is the rim profile of 6.00G-16
It is a section steel rim with a 6.00G-16 profile, designed for medium-duty trucks and buses.
What load can this rim carry
The rated load is 1450 kg, suitable for standard commercial vehicle applications.
What bolt pattern does it use
It has a 6-bolt pattern with a PCD of φ222.25 and bolt hole diameter of φ24.
Is the offset adjustable
No, the offset is fixed at 120 mm, designed for specific axle positioning.
What certifications does this rim carry
Resunyou rims are manufactured under ISO9001 and ISO/TS16949 systems. Additional certifications may apply based on destination market.
Can I mix this rim with other rim types in one container
Yes, container loading can include multiple rim types and sizes based on order requirements.
Get Pricing For 6.00G-16
Send the sizes and quantity per size. We will confirm availability, the approval marking for your market and a container plan.
