Qianwei Current Transformer Co., Ltd. · Liushi, Wenzhou · since 1998
Current transformers built to the ratio class and burden you specify
We make measuring and protection CTs from mini DIN rail types up to 36kV epoxy resin units, together with panel meters, DC shunts, transducers and relays. ISO 9001 and CE certified, with a Measurement Permit, exporting to more than 20 countries.
What we make
CTs, transducers, panel meters, shunts and relays for switchgear and metering panels
Who we serve
Panel builders, meter makers and electrical distributors in over 20 countries
Why buy from us
Own production and computer test equipment, ISO 9001, CE and a Measurement Permit
1998
Making current transformers since
165
Products published on this site
95
Product lines in 9 categories
20+
Countries and regions supplied
Product range
Every product page carries the original technical data, dimension tables and outline drawings. Quote the model when you write to us.

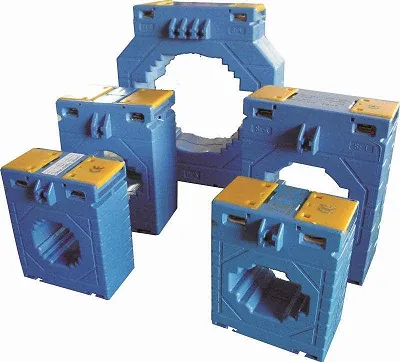

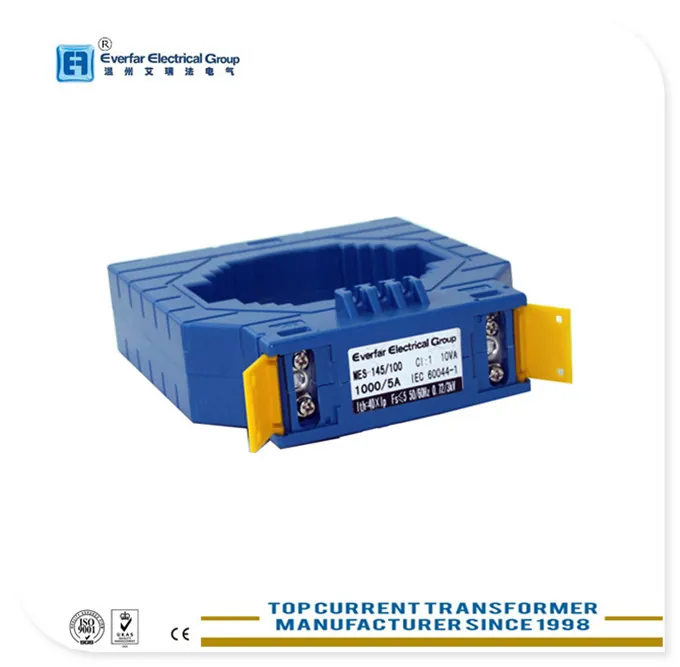

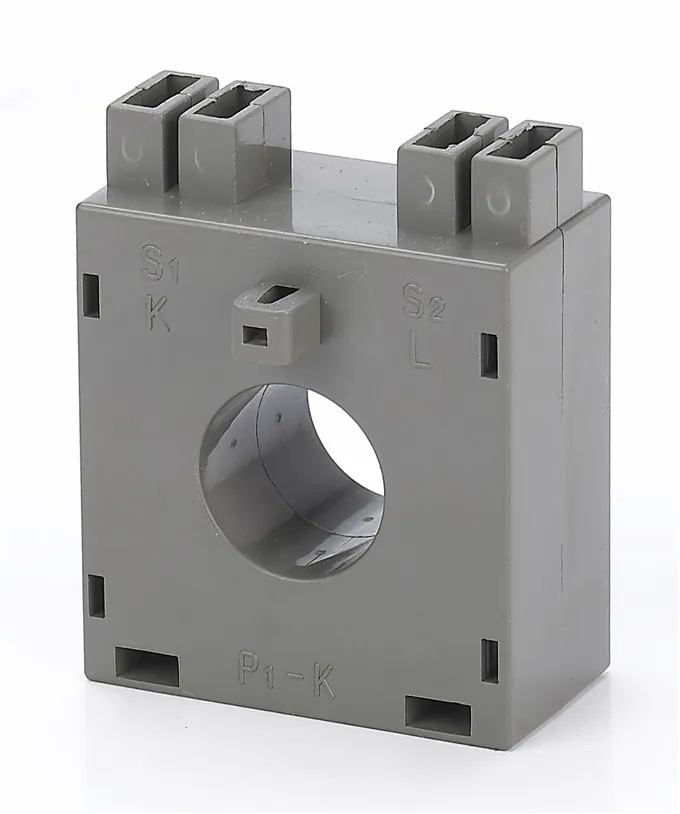

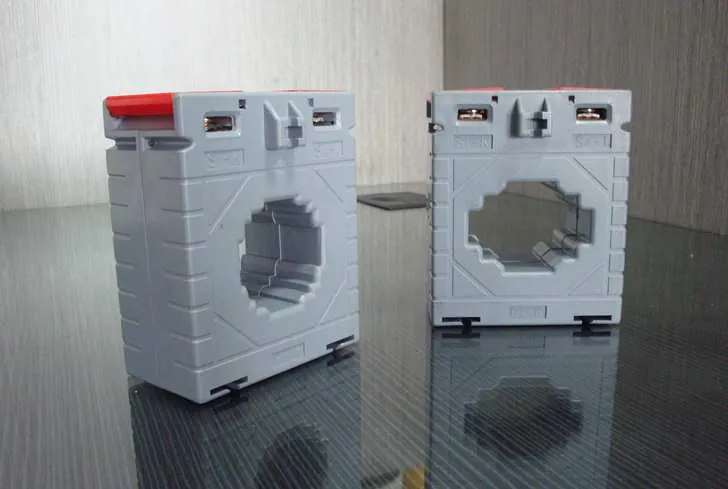

Current Transformers
Measuring and protection current transformers for low voltage panels and medium voltage switchgear, from mini DIN rail types to 36kV epoxy resin units
68 products in 38 lines

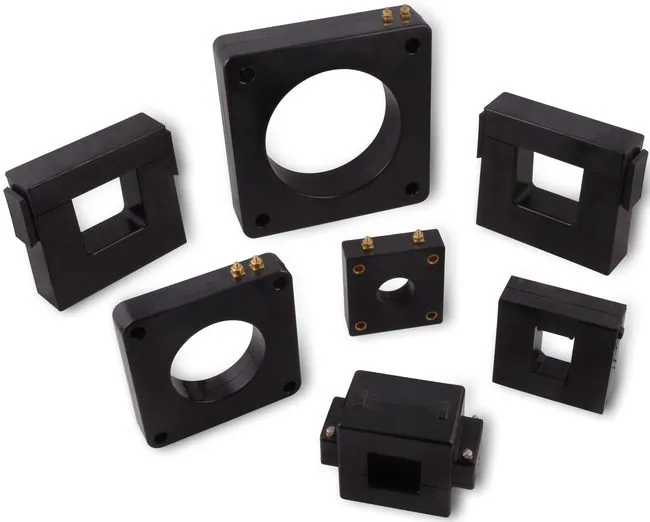

Worldwide CT Showroom
Reference library of current transformer types used in different markets, kept for identification and cross reference
15 products in 13 lines

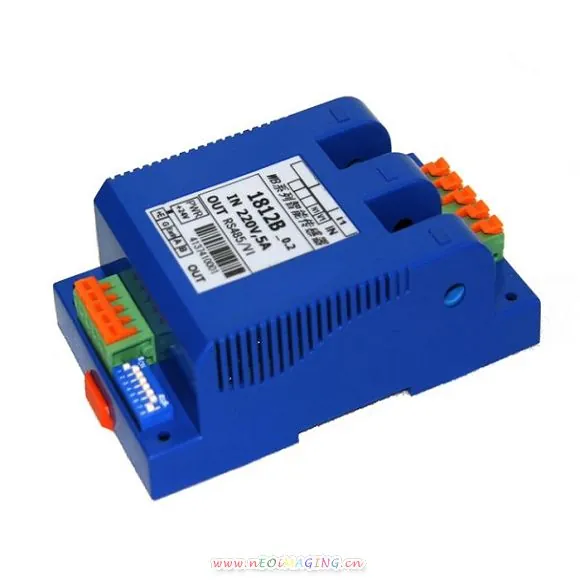

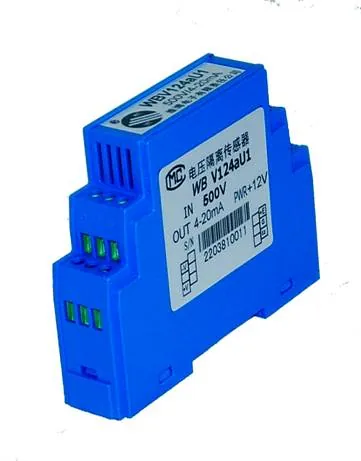

Current Transducers
Current and voltage transducers that convert measured signals into standard 4-20mA or 0-5V outputs
4 products in 4 lines

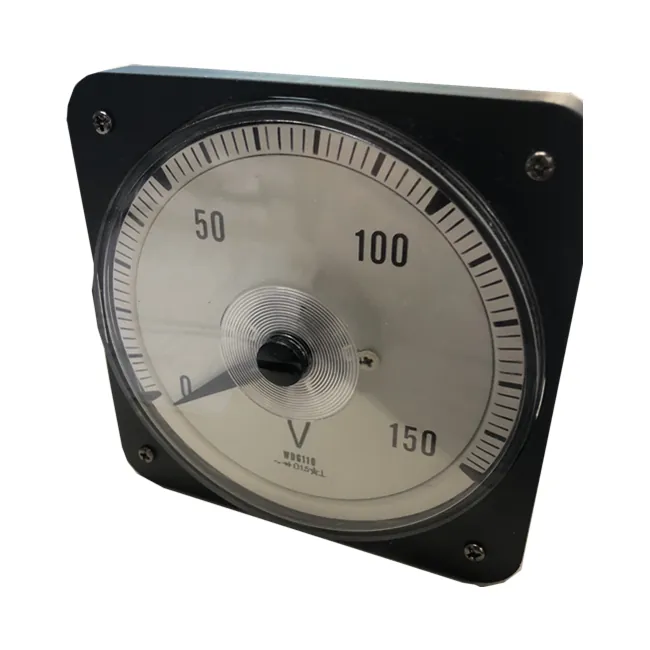

Panel Meters
Analogue and digital panel meters for current, voltage, frequency, power and power factor
37 products in 19 lines

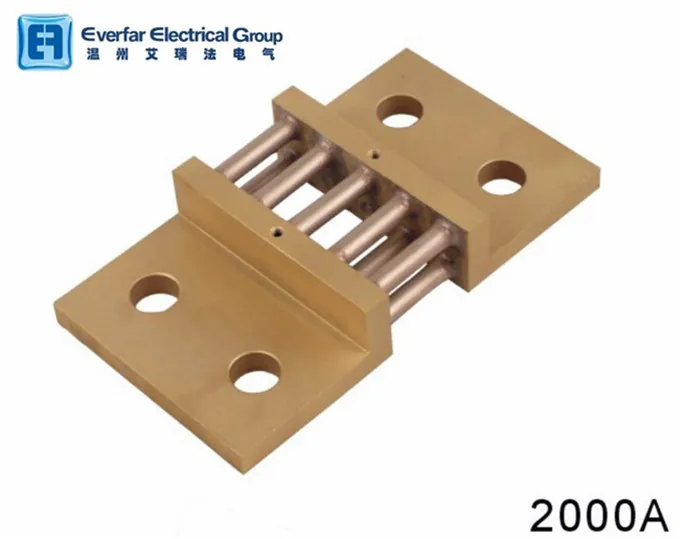

DC Shunts
DC current shunts to European DIN43703 and American standards, plus switchboard and kWh meter shunts
5 products in 5 lines
Relays
Time, voltage, current, intermediate, thermal and solid state relays, plus arc fault protection
15 products in 9 lines

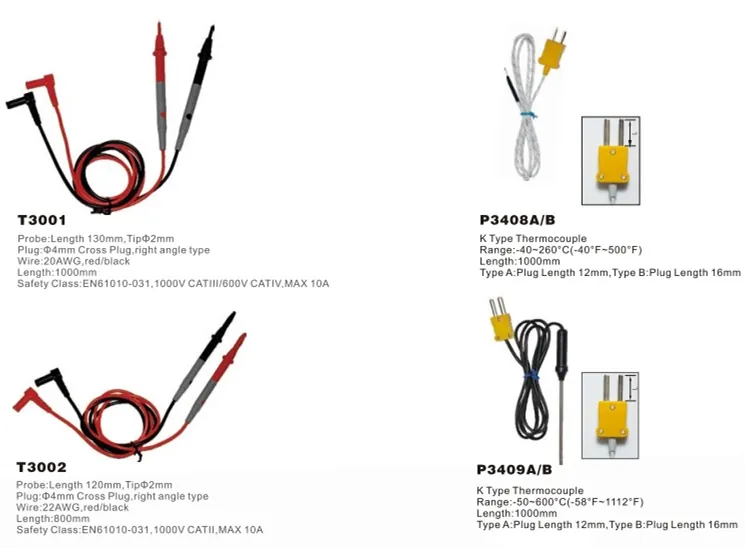

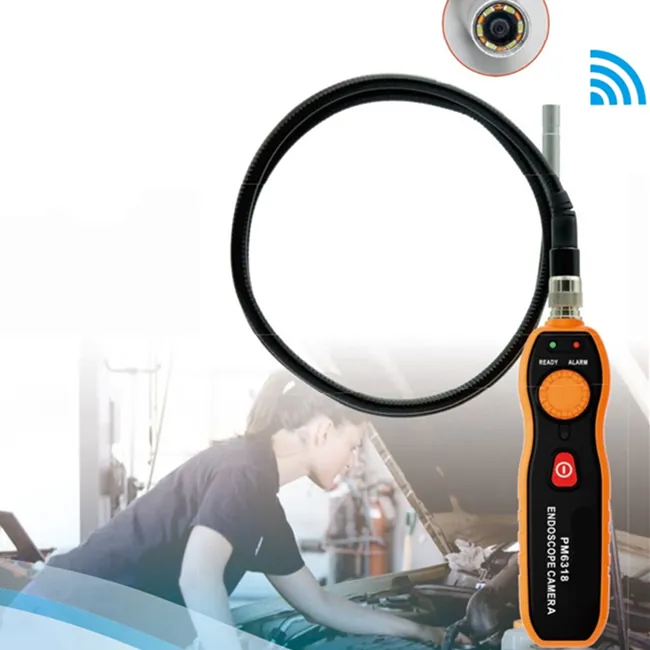

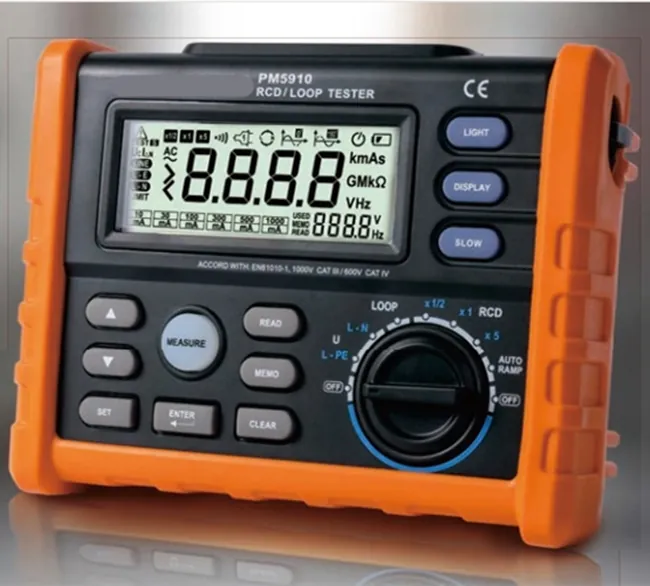

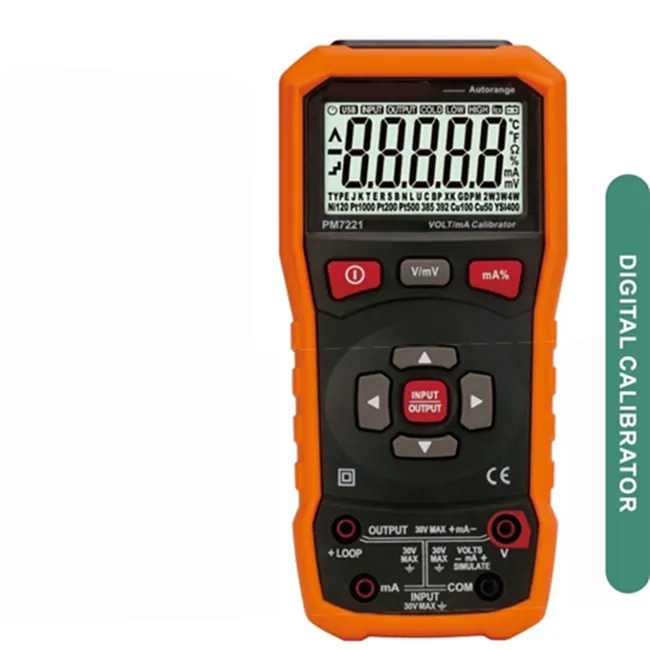

Electronic Testers
LED and electronic test tools for panel assembly and field service
15 products in 1 lines

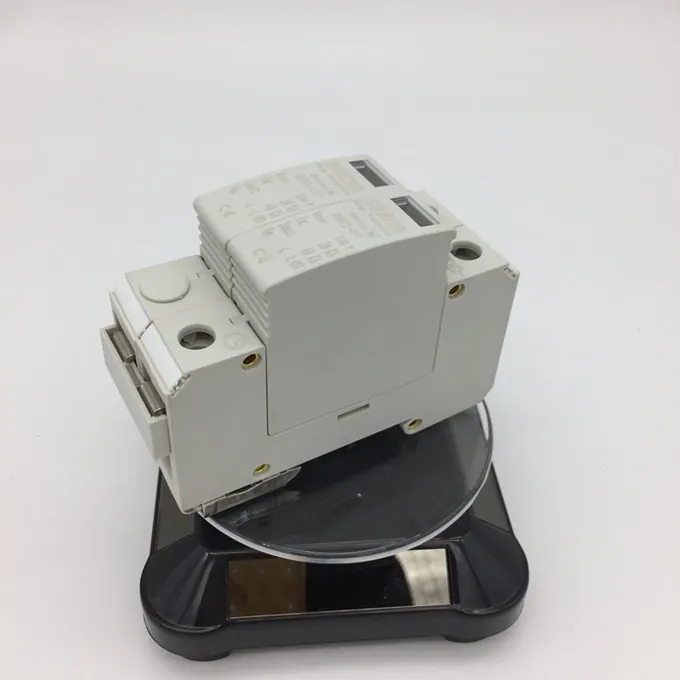

Solar Energy
DC surge protection for solar installations
1 products in 1 lines

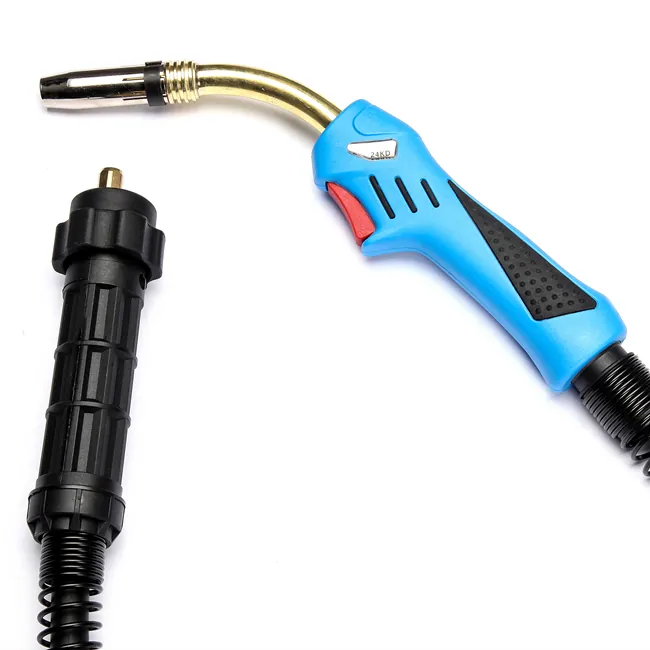

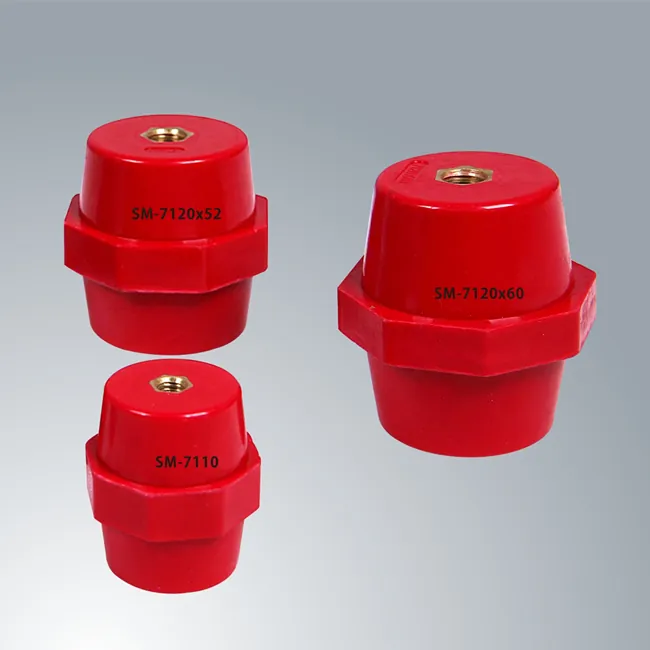

Other Products
Busbars, insulators, welding torches, shielded connectors and bell transformers
5 products in 5 lines
Current transformers by series
One example from each of the main CT series. Open a series to see the full range of ratios and frame sizes.
CA Current Transformer
Current Transformers
DX Current Transformer
Current Transformers

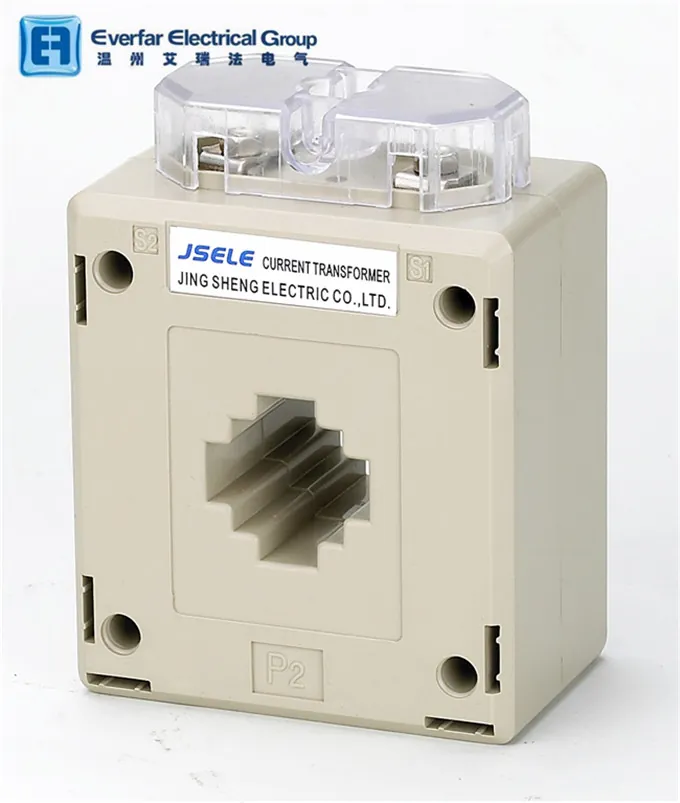

AMC High VA CT
Current Transformers

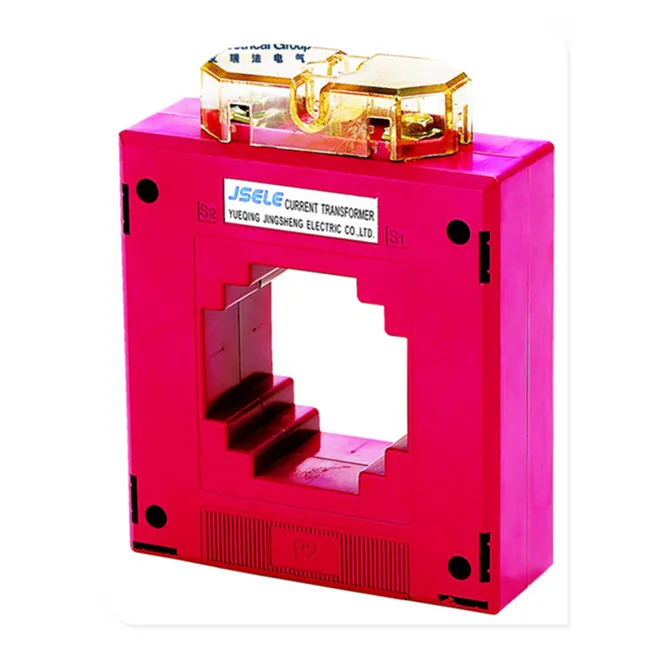

NSQ Current Transformer
Current Transformers

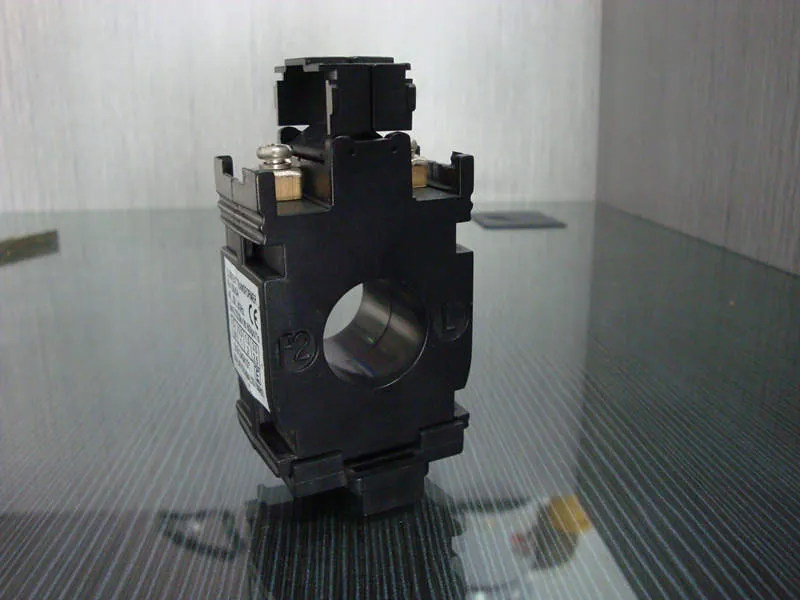

MINI Lovato(DM0T),IME(TABB)CT
Current Transformers

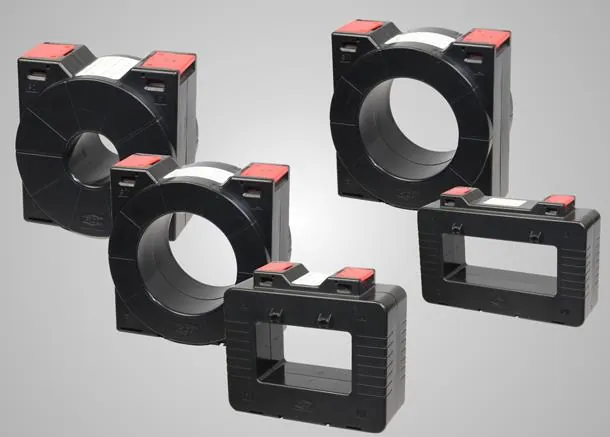

RLC Russian CT
Current Transformers

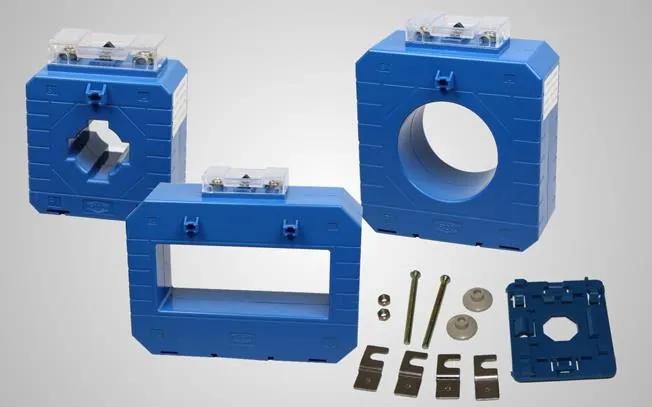

SLC Spain CT
Current Transformers
How to specify a current transformer
Most quotation requests arrive with only the window size and the primary current. Accuracy also depends on the burden, which is the total termination impedance of the measuring instrument, the connecting leads and the CT winding. Long lead runs alone can add measurable resistance.
- 1
Ratio
Primary and secondary current, for example 100/5A or 400/1A.
- 2
Accuracy class
Class 0.2, 0.5 or 1.0 for measuring, 5P10 or 10P20 for protection.
- 3
Burden in VA
Include the meter, the leads and the run length. Without it we cannot guarantee the class.
- 4
Window or busbar size
Cable diameter or busbar width and thickness in millimetres.
- 5
Mounting
DIN rail, side base, busbar mounted, split core or flexible Rogowski coil.
Quality and certification
The company holds ISO 9001 quality system certification and CE certification, and was one of the first manufacturers certified under the Measurement Permit scheme. Production is supported by computer test equipment and a documented quality management system.
ISO 9001
ISO 14001
OHSAS 18001
GB/T 28001
CE
UL
KEMA
LVD
China Famous Brand
Wenzhou Famous BrandCommon questions from buyers
What does Qianwei manufacture
Current transformers for measuring and protection, current and voltage transducers, analogue and digital panel meters, DC shunts, relays and related switchgear components. This site lists 165 products in 95 product lines.
What do you need in order to quote a current transformer
The ratio you need, for example 100/5A, the accuracy class, the burden in VA, the window or busbar size, and the quantity. Burden matters: accuracy cannot be guaranteed without it, because the burden is the termination impedance of the measuring instrument.
Which certifications do you hold
The company has passed ISO 9001 quality system certification and CE certification, and is one of the first certified manufacturers to hold a Measurement Permit. Certificates for ISO 14001, OHSAS 18001, GB/T 28001, UL, KEMA and LVD are shown on the quality page.
Do you supply samples
Samples are offered on many catalogue models. Send the model and ratio to [email protected] or message us on WhatsApp and we will confirm.
Where do you export
Products are sold across the domestic Chinese market and exported to more than 20 countries in Europe, the Americas, Africa, the Middle East and Southeast Asia.
Can you build a current transformer to our own drawing
Yes. Tell us the ratio, class, burden, window size and mounting method, and send the drawing. Custom shunts are also produced to order.
Send us a specification
Give us the ratio, class, burden and window size and you will get a model, a price and a lead time back.
