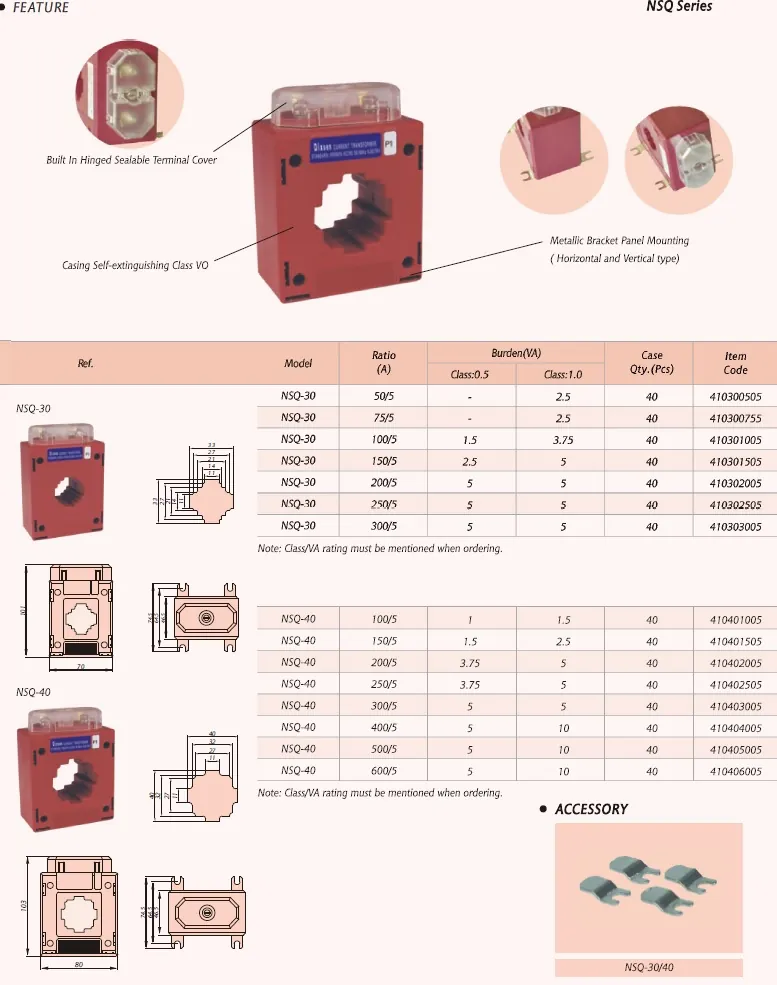

NSQ Current Transformer
Made by Qianwei Current Transformer Co., Ltd. in Liushi, Wenzhou. Tell us the ratio, accuracy class and burden and we will confirm the exact frame, the price and the lead time.
- Category
- Current Transformers
- Series
- NSQ Asian Hottest CT
- Manufacturer
- Qianwei, Wenzhou China
- Certification
- ISO 9001 and CE
Technical data
NSQ current transformer is made according to standard BS7626 and IEC44-1.
NSQ-55 100/5A~600/5A
| NSQ Series: | |
| Primary current: Secondary current: Standard approval: Maximum voltage: Frequency: Rated load: Class: Short-time thermal current: Rated security coefficient: |
30A-3000A 5A, 1A BS7626, IEC44-1 0.66KV 50-60Hz 2.5VA, 15VA 0.5, 1.0, 3.0 Ith=60×Ih FS<5 |
Questions about this model
How do I get a price for the NSQ Current Transformer
Email [email protected] or message us on WhatsApp with the model, the ratio, the accuracy class, the burden in VA and the quantity.
What is the burden and why do you ask for it
The burden is the total termination impedance seen by the transformer: the measuring instrument, the connecting leads and the winding itself. Accuracy class cannot be guaranteed without it, and long lead runs add resistance that has to be counted.
Can this model be customised
Ratios, secondary current and mounting can often be adapted within the same frame. Send us the requirement and we will confirm what the frame allows.
Ask about the NSQ Current Transformer
Give us the ratio, the accuracy class and the burden and you will get a firm model number and price.
