DX Current Transformer
Made by Qianwei Current Transformer Co., Ltd. in Liushi, Wenzhou. Tell us the ratio, accuracy class and burden and we will confirm the exact frame, the price and the lead time.
- Category
- Current Transformers
- Series
- DX Europe Low Cost CT
- Manufacturer
- Qianwei, Wenzhou China
- Certification
- ISO 9001 and CE
Technical data
DX30(DM2T),100/5A 1cl.1.5$/per,exactly match Lovato DM2T Current Transformer. Samples free!
DX discription
DX range of current transformers have been designed to be double terminal entry which allows short circuit
links to be fitted when it is necessary to disconnect the measuring instrument from the transformer without damage
to the CT, or for easier termination to ground of the CT
Features
1) Safe, easy to install, portable
2) Wide inner window, allowing clamping of big cables or bus-bars
3) Wide range of sizes to accommodate all the existing installations
Technical Data & Specification:
| Model | Primary Secondary | Busbar Hole Dimension(mm) | Rated Burden(VA) | Class | Rated Voltage |
| DX-20 | 50/5A-150/5A | 20mm | 1.5-2.5 | 1.0 | 660V |
| DX-30 | 100/5A-500/5A | 30*10mm | 1.5-2.5 | 1.0 | 660V |
| DX-40 | 150/5A-1000/5A | 40*10mm | 3-10 | 1.0 | 660V |
| DX-20L | 50/5A-150/5A | 20mm | 1.5-2.5 | 1.0 | 660V |
| DX-30L | 100/5A-500/5A | 30*10mm | 1.5-2.5 | 1.0 | 660V |
Dimension of Case(mm):
| Model | A | B | C | D | E |
| DX-20 | 53 | 28 | 57 | 66 | 54 |
| DX-30 | 53 | 28 | 57 | 66 | 54 |
| DX-40 | 71 | 45 | 73 | 81 | 65 |
| DX-20L | 53 | 28 | 57 | 66 | 54 |
| DX-30L | 53 | 28 | 57 | 66 | 54 |

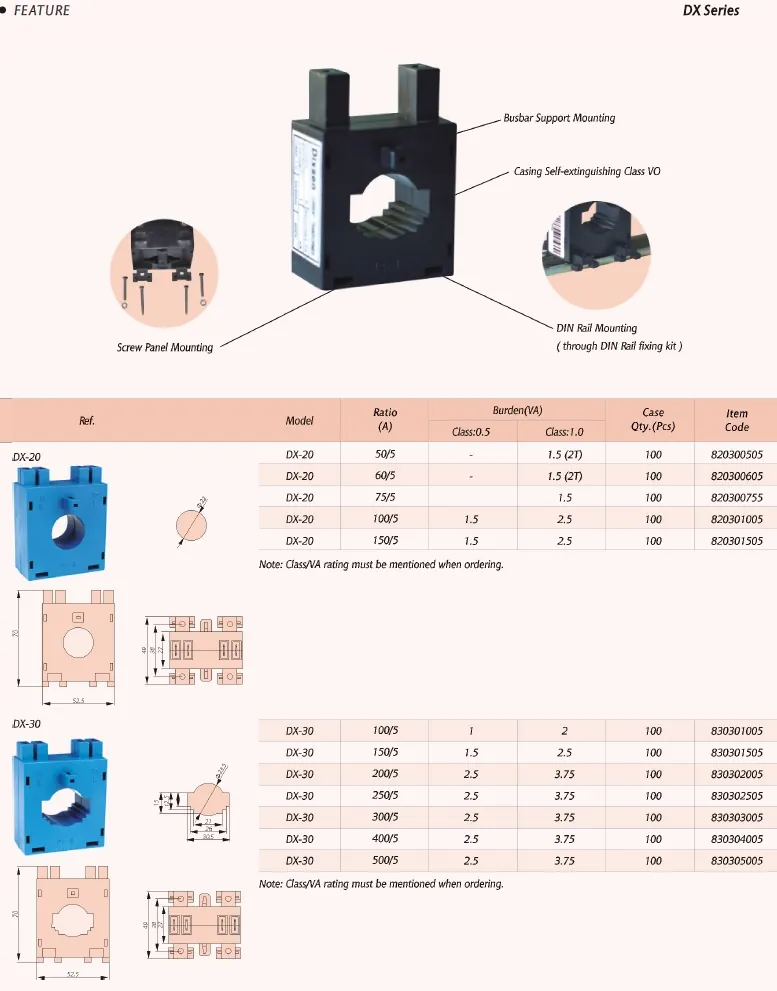

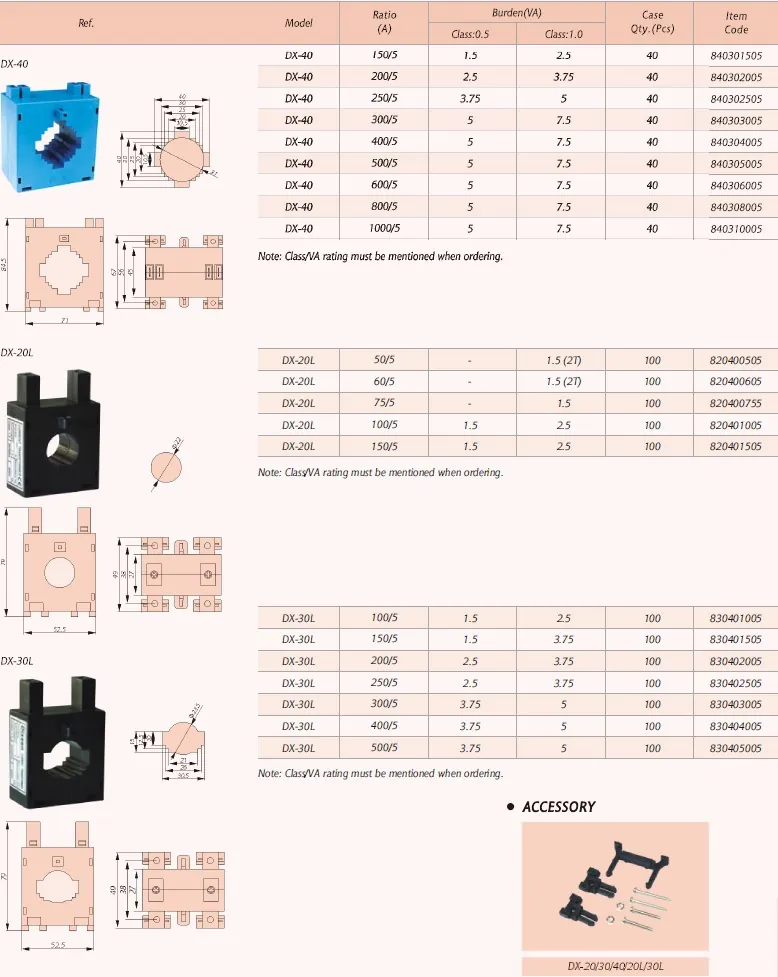

Outline Drawing:
Exactly match Lovato Current Transformer, DM0T DM2T DM3T DM4T DM5T DM1TA DM2TA DM3TA DM4TA.
Questions about this model
How do I get a price for the DX Current Transformer
Email [email protected] or message us on WhatsApp with the model, the ratio, the accuracy class, the burden in VA and the quantity.
What is the burden and why do you ask for it
The burden is the total termination impedance seen by the transformer: the measuring instrument, the connecting leads and the winding itself. Accuracy class cannot be guaranteed without it, and long lead runs add resistance that has to be counted.
Can this model be customised
Ratios, secondary current and mounting can often be adapted within the same frame. Send us the requirement and we will confirm what the frame allows.
Ask about the DX Current Transformer
Give us the ratio, the accuracy class and the burden and you will get a firm model number and price.
