MES Current Transformer
MES Europe Hottest CT
MES Current Transformers
Made by Qianwei Current Transformer Co., Ltd. in Liushi, Wenzhou. Tell us the ratio, accuracy class and burden and we will confirm the exact frame, the price and the lead time.
- Category
- Current Transformers
- Series
- MES Europe Hottest CT
- Manufacturer
- Qianwei, Wenzhou China
- Certification
- ISO 9001 and CE
Technical data
$1.2/per CA-MES62/30 100/5A 1cl.hottest model in Europe,South Africa,Russia Market Samples free!
The MES series of current transformer are convenient for mounting in many ways.The most current transformer need the special mounting and the MES series used the mounting of DIN typing without a lot of times.The protective cover for terminal block used the switching device with safety and quick.
Feature:
1:Three built in fixing methods: Panel/Din Rail/Busbar
2:Built in hinged terminal cover
3:Compact design
4:Primary current up to 3000A
Applications:
1:Current measurement, monitoring and protection for electrical wiring and equipment.
2:Current and power measurement for electric motors, lighting, air compressor, heating and ventilation system, air-condition equipment and automation - control system.
3:Current, power and energy monitoring device.
4:Relay protection device.
| Frequency | 50/60Hz | Case | PC/UL94-V0 |
| Rated Input | 5A-3000A | Bobbin | PBT |
| Measuring range | 5%In-120%In | Core | Silicon steel |
| Rated Output | 1A,5A | Construction | Screw |
| Ratio Voltage | 0.72KV (AC) | Operating Temp | -25℃~+75℃ |
| Dielectric strength | 3.0KV/1mA/1min | Operating Humidity | ≤85% |
| Insulation Resistance | DC500V/100MΩ min | Output Connection | Terminal |
CURRENT TRANSFORMERS MES-62/WS
|
Primary current: |
5A-150A |
CURRENT TRANSFORMERS MES-62/30
|
Primary current: |
30A-400A |
CURRENT TRANSFORMERS MES-62/40
|
Primary current: |
60A-600A |

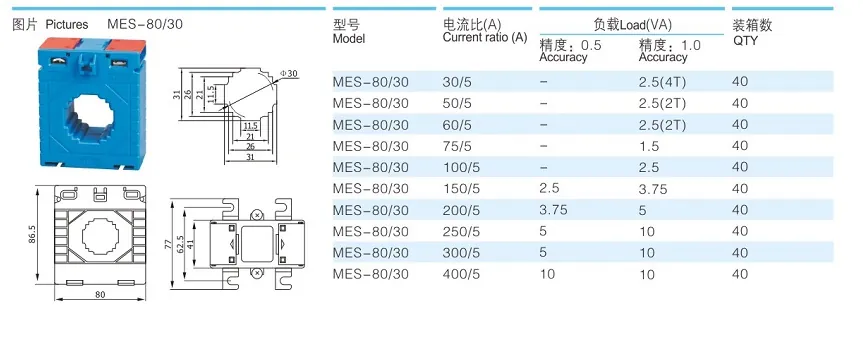

CURRENT TRANSFORMERS MES-80/30
|
Primary current: |
30A-400A |
CURRENT TRANSFORMERS MES-100/60
|
Primary current: |
400A-1600A |

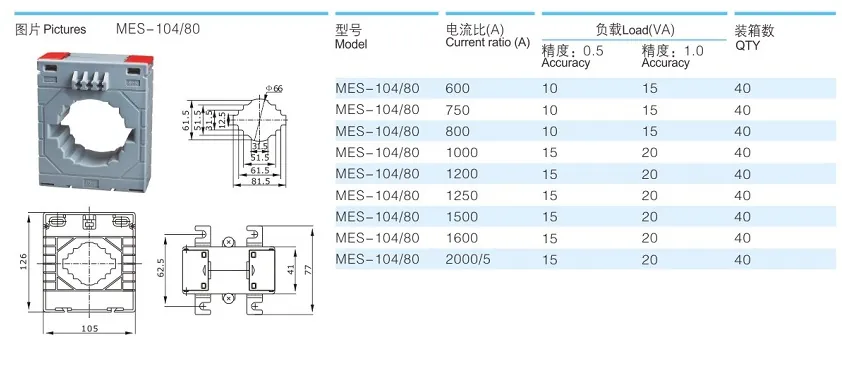

CURRENT TRANSFORMERS MES-104/80
|
Primary current: |
600A-2000A |

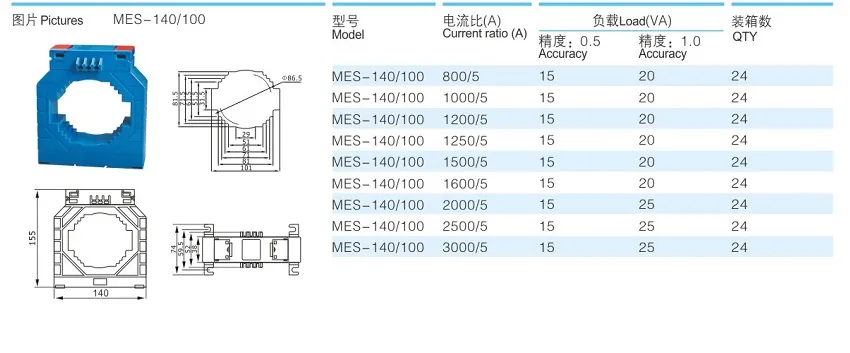

CURRENT TRANSFORMERS MES-140/100
|
Primary current: |
800A-3000A |
Other models in MES Europe Hottest CT
Questions about this model
How do I get a price for the MES Current Transformers
Email [email protected] or message us on WhatsApp with the model, the ratio, the accuracy class, the burden in VA and the quantity.
What is the burden and why do you ask for it
The burden is the total termination impedance seen by the transformer: the measuring instrument, the connecting leads and the winding itself. Accuracy class cannot be guaranteed without it, and long lead runs add resistance that has to be counted.
Can this model be customised
Ratios, secondary current and mounting can often be adapted within the same frame. Send us the requirement and we will confirm what the frame allows.
