Drilling
Drilling
Bench, upright, radial and auto-feed drilling machines covering small bench work up to large radial-arm hole patterns.
12 models published. Every one of them is listed below with its own parameter page.
12 Models
Every Drilling Model We Supply
Drilling
Bench strong drilling machine Z4006G, Z4116G, Z4120G, Z4132G, Z5032G & Z5032GP
View specifications →
Drilling

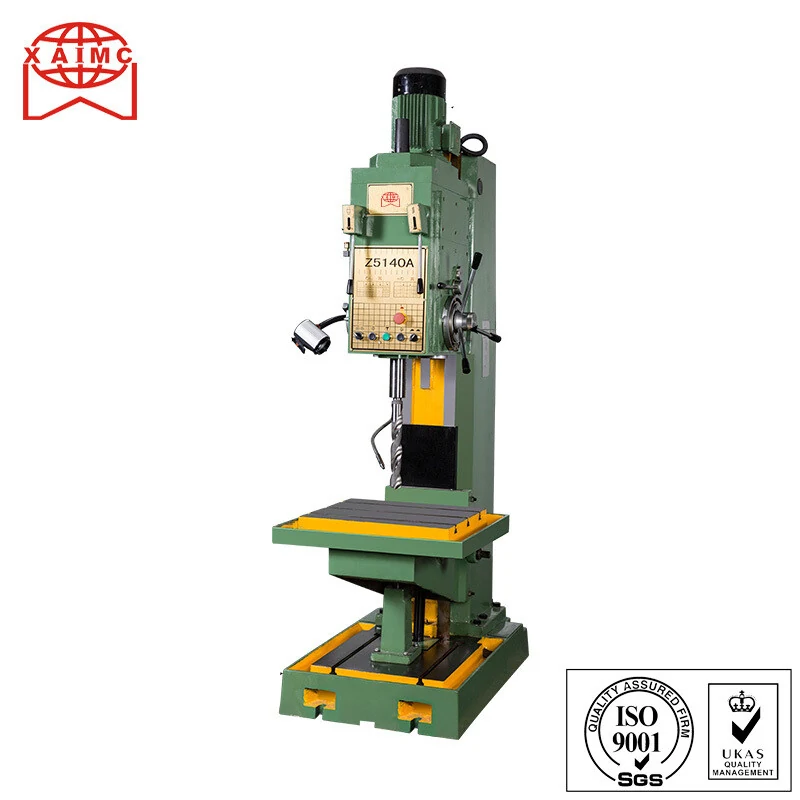

Box-type vertical drilling machine Z5140A, Z5150A, Z5140B, Z5150B, Z5163B & Z5180B
View specifications →
Problems Solved
What This Range Removes From Your Week
The Capacity Gap
Without this range the shop lives with hole patterns drilled by hand on parts too large for a bench drill.
Selection Risk
Buying the wrong size machine is expensive twice, once at purchase and again when the work still has to go out. We size against your drawing.
Support After Landing
Machines arrive with a manual and a contact who answers, so a commissioning question does not turn into an idle month.
Application Scenarios
Typical Jobs in This Range
- Hole patterns in plate and structural steel
- Tapping threads after drilling in one setup
- Bench work on small brackets and fittings
- Large fabrications handled under a radial arm
Core Advantages
What We Can State Plainly
- 12 models published with their own parameter tables
- Built by Shaanxi Jiade Group Co., Ltd, founded 2003 in Xi'an, Shaanxi
- Plant with more than 15,000 square metres of built area
- Trade terms FOB, CFR, CIF; payment TT 30% with order and 70% before shipment, or irrevocable L/C at sight
- Certification scope and tolerance data quoted per model rather than claimed in general, TBC
Solutions and Guides
Where This Range Fits
Solution
Machine Shop Start Up Package
The four processes a general job shop needs before it can quote most local work.
ComparisonBench Upright and Radial Drilling Machines Compared
Bench, upright, gear head and radial drilling machines differ by how the work gets under the spindle. That single question usually settles the choice.
Answers
Drilling Buying Questions
How many drilling models do you supply?

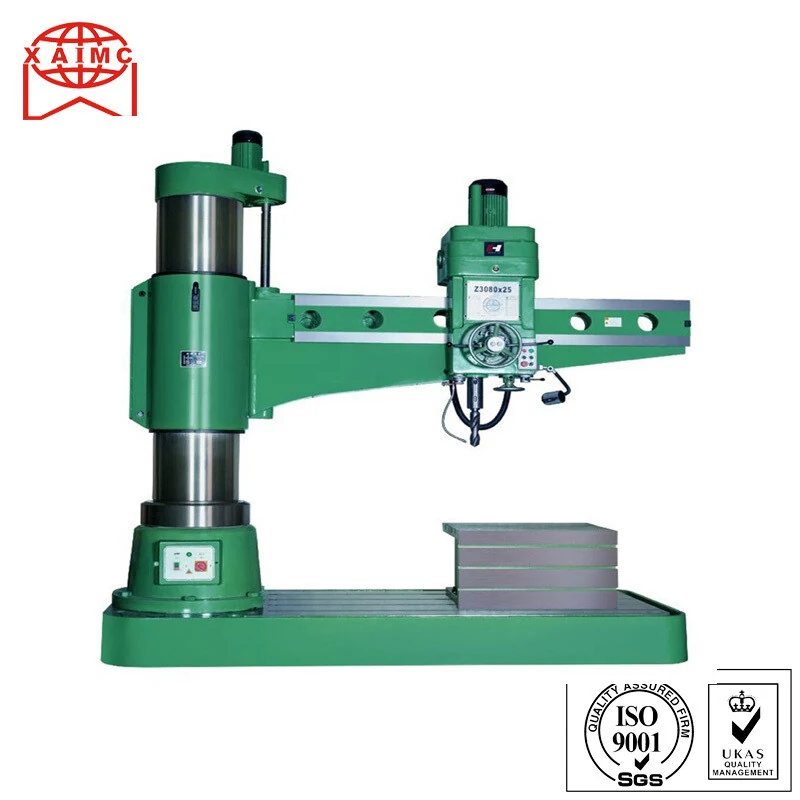

This range currently lists 12 models on our site, from Auto-feed drilling machine ZB4116G, ZB4120G, ZB4132G, ZB4132GP, ZB5032B & ZB5032GP through to Radial drilling machine Z3080 X 25, Z3063 X 20A. Every model on the list is quoted with its own parameter sheet.
Which drilling model suits my workpiece?
Send the drawing or the maximum workpiece dimensions and the material. We match those against the capacity of each model in the range and recommend one, rather than selling the largest machine on the list.
Can I order one machine, or is there a minimum quantity?
Single machines are normal for this range. Container loads of mixed models are also common because several of these machines ship in the same container.
What voltage and frequency can the machines be built for?
State your supply voltage and frequency with the enquiry. Motor and control specification is confirmed before production. TBC per model until the order is placed.
Do you supply installation and training?
Operation manuals ship with every machine and our technical team answers commissioning questions by WhatsApp or email. On site service depends on destination and is quoted separately. TBC per project.
What are the payment and trade terms?
TT 30% with order and 70% before shipment, or irrevocable L/C at sight. Trade terms are FOB, CFR, CIF.
Not Sure Which Drilling Model to Order
Send the drawing or the workpiece dimensions. We answer with a model, a parameter sheet and a price.
