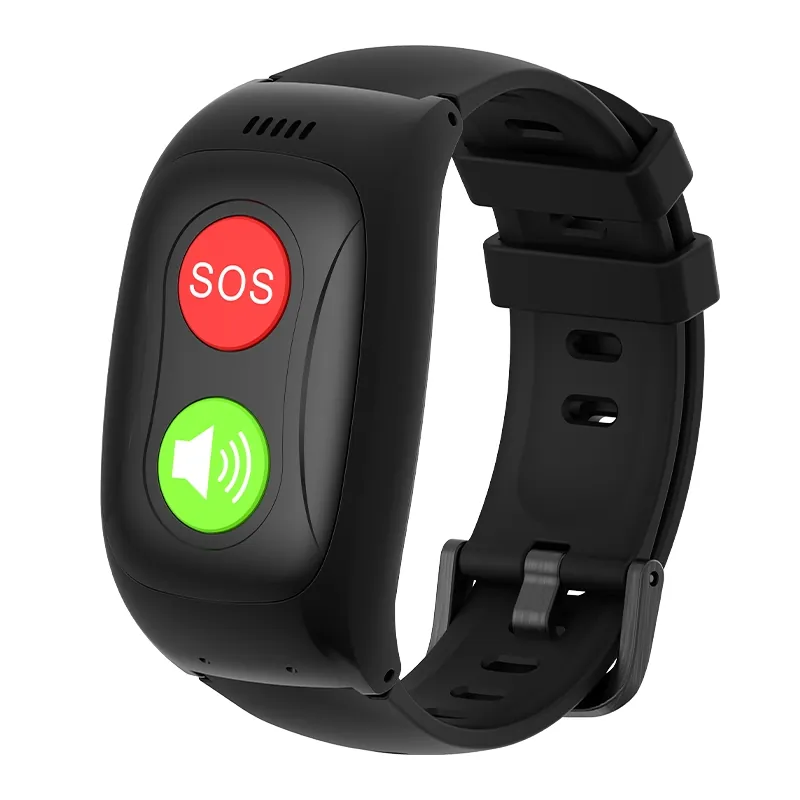

Popular watch tracker L17pro
The L17PRO is the ideal solution for monitoring elderly parents from anywhere. Offering health tracking, emergency alerts,
and real-time GPS, this smartwatch brings both comfort and security to families and caregivers.
Model: L17pro
Dual CPU for superior energy efficiency: Ensures smooth performance and optimized power consumption.
Comprehensive health monitoring sensors:PPG, SPO2, and temperature monitoring for real-time health data.
Highlights
- Dual CPU for superior energy efficiency:Ensures smooth performance and optimized power consumption.
- Comprehensive health monitoring sensors:PPG, SPO2, and temperature monitoring for real-time health data.
- Global connectivity:Supports 4G LTE, BLE, and Wi-Fi with coverage in over 130 countries.
- Durable and waterproof design:IP66 rating ensures reliability in various environments.
- Lightweight and user-friendly:Weighs only 40g, making it comfortable for daily wear.
Core Features
- Dual CPU Architecture:Unisoc W307 Cortex A53 1GHz and GR5515 BLE chip ensure smooth multitasking and
- energy-saving.

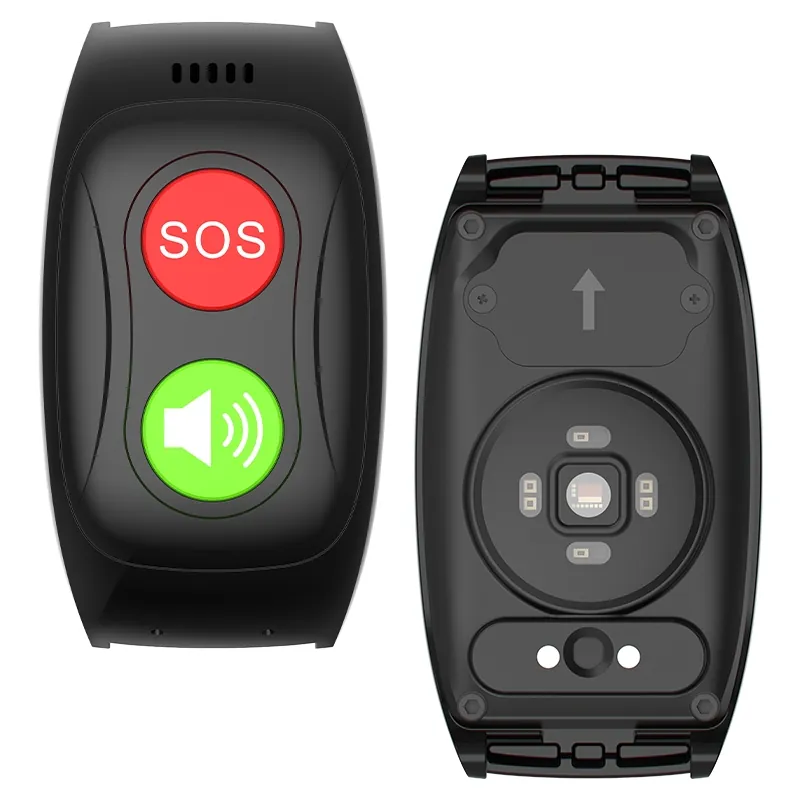

- Comprehensive Sensors:Includes PPG heart rate, SPO2, and NST117 temperature sensor for accurate health monitoring.
- Global Roaming Capabilities:Compatible with over 130 countries for seamless international usage.
- Battery Efficiency:Supports 4-5 days of normal usage or up to 6-7 days in standby mode.
- IP66 Waterproof:Designed for daily activities and resistant to water splashes.
- Customization for Enterprises:Includes e sim compatibility and calculable deployment options.
| highlights | 1: Dual CPU, 4G+BLE+sensor, Save power when getting health data frequently 2: Ultra high performance and power save：1GHZ CPU+128MB RAM Run on a RTOS 3: Global Roam Connection 2G+3G+4G +WIFI Field Test Cover: 130+ Countries 200+ Carriers 4: Comprehensive health sensor and Dual color Optical lens: PPG+SPO2+Temprature | |
| Spec | Model Name | L17 PRO |
| Bluetooth version | BLE 5.0 can be used as indoor location | |
| Waterproof | IP66 | |
| watch OS | RTOS Thread X | |
| CPU | Unisoc W307 Cortex A53 1Ghz+ GR5515（BLE chip as sensor Hub） | |
| GPS chip | W307 | |
| GPS antenna | LDS | |
| GSM antenna | LDS | |
| heartrate sensor | PAH8009 or TBD | |
| SPO2 sensor | ||
| Blood pressure | ||
| Temprature sensor | NST117 | |
| 3D accelerator | DA217 or TBD | |
| Frequency band | GSM 850/900/1800/1900mHz | |
| 3G WCDMA ：Band1、 Band8 | ||
| LTE B2 B4 B7 B12 B17 B66 | ||
| SIM card | nano, compatible with e-sim | |
| Charge port | Magnetic 2 pin | |
| Button | one SOS+ one server key | |
| Dimension | 55x31x14.8mm | |
| Available color | Black, White (for bulk order of min. 3k only) | |
| Battery | Type of battery | Lithium pollymer battery |
| Battery Capacty | 680 mAh | |
| Very frequent use | 3~4 days | |
| Normal use | 4~5 days | |
| Standby time with 4G | 6~7 days | |
| App | Functions | Today's Date, Steps Counting, Heart Rate/Blood Pressure/SPO2 temprature/Monitor, GPS Positioning, 2-Way Call, SOS Alarm, etc. |
| App platforms | Web or mobile App | |
| Alarm message | Low battery, SOS, gen-fence | |
| Watch data | Just display, no store | |
| Server data | Save data for past 30 days | |
| Material | Watch Case | PC+ABS+LDS |
| Button | Sillcon | |
| Strap | 18mm Sport Strap(Sillcon) | |
| Strap buckle | PC+GF | |
| Weight and Size | Product weight | 40g |
| Package weight | 120g | |
| Package size (L x W x H) | 90*76*71mm | |
| Packages Contents | Package contents | 1 x L17PO GPS Smart Watch, 1 x User Manual (English), 1 x Screwdriver, 1 x Pin, 1 x EU/UK adaptor, 1 x Gift Box |
Specifications on this page are the ones published by GOTOP for this model. Ask us before ordering if you need a band, battery or protocol that is not listed.
Order Or Modify This Model
Small orders are welcome, and our engineers can change firmware, protocol or housing to match your platform.
FAQ
General GPS Tracking Questions
Answers published by GOTOP for all tracking devices.
How do set up the GPRS?
Make sure the command you set according to the below frequent issue. The SIM card of the Tracker supports the GPRS function. Send the APN set command SMS to configure the application and send SMS to tracker to trigger it reply back information. Set The GPRS signal interval the port number you set for the tracker have its program. If your router is dynamic IP addressing, don not forget to resend APN set command SMS when the IP address is changed. check out the IP address for PC server When you login your router, you will get your IP address in the login box. Also there is some website or software could help you to check your own IP address. setup the port number Port number is a random number which is setup by the end user, please make sure this port is not occupied by other software otherwise the PC server software will shut down automatically. In order to avoid the conflict, we suggest you setup the port number bigger than 6000. check out the APN name of your local telecommunication provider If the GPRS configuration has been wrongly set, the device will spend long time to repeatedly engage at connecting with IP address, this will cause the outing SMS delayed.
Who does tracker use for maps and map data?
Currently, GPS tracker Systems is using the Google mapping interface for maps, and partners for the street level data that is displayed on the maps. It is able to use any mapping interface and can customize mapping solutions based on the specific requests or needs.
What is GPRS?
GPRS (General Packet Radio Service) is a digital, IP-based wireless packet data service offered by GSM-based cellular carriers, there is not a new technology out there on the market. GPS Tracker & GPRS or General Packet Radio Services has been around for quite some time. Established in the early 2000’s, GPRS is an extension of the Global System for Mobile Communications.
