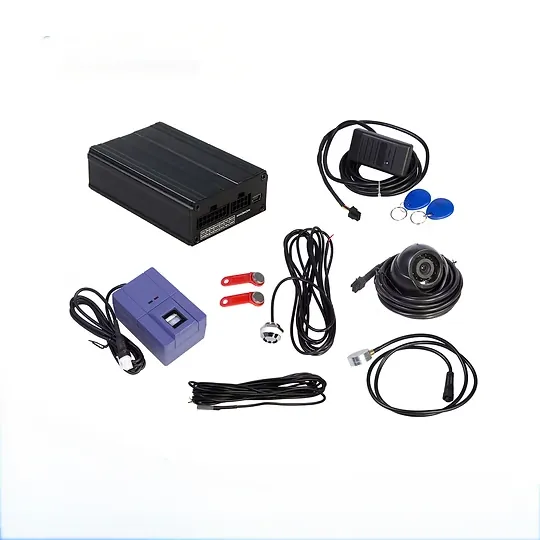

Camera Vehicle GPS tracker A5G

  • A5G is an advanced 4G+3G+2G model which is suitable for fleet management, public transportation management, school
  • bus management, taxi operation management, vehicle insurance company management, rent car management and
  • private car anti-theft, etc. A5G supports RS232 and 1-wire protocol, this enables A5G to have powerful functions such as
  • photographing, driver identification and management, impulse detection and temperature monitoring.
  • Besides the advanced functions, A5G has full functions to cover the normal demands of vehicle tracking. Not only fuel
  • monitoring, harsh acceleration/braking alarm, driving behavior analysis, but also has custom digital input, jamming
  • detection, two-way calling and OTA function. A5G uses own GPRS PROTOCOL which is simple and practical; this enables
  • the customers to integrate on their own platform efficiently
  • Tracking Functions
  • GPS+GSM Base Station Dual Tracking
  • Real Time Tracking
  • Time Interval Tracking
  • Distance Tracking
  • Direction Change Tracking
  • Mobile Phone Tracking

Alarms

  • SOS Alarm
  • GPS Antenna Cut Alarm
  • External Power Cut Alarm
  • Engine/Door Status Alarm
  • Maintenance remind
  • GEO-Fence Alarm
  • Speeding Alarm/Idling Alarm
  • Fatigue Driving Alarm
  • Harsh Acceleration Alarm
  • Harsh Braking Alarm
  • Parking Overtime Alarm
  • GPS Jamming Alarm
  • GSM Jamming Alarm
  • Internal Battery Low Alarm
  • External Battery Low Alarm
  • Other Functions
  • Stop Car Remotely
  • 8 MB Flash Memory
  • Custom Digital Input
  • OTA
  • Uploading Mode Settings for ACC ON/ACC OFF
  • Roaming Time Interval Setting
  • Mileage And Running Time Settings
  • Tacking picture via camera (Optional)
  • Fuel sensor (Optional)
  • Temperature sensor (Optional)
  • Voice monitoring (Optional)
  • Two-way Calling(Optional)
  • Driver identification and management via RFID Reader or i-Button (Optional)
ItemSpecification
Dimension90*60*27mm
Weight145g
GSM ModuleQuectel EC200A
4G+3G+2G Frequency bandEU version for Europe, Asia, Africa countries2GGSM/EDGE: B3/B8
3GWCDMA: B1/B5/B8
4GLTE-FDD: B1/B3/B5/B7/B8/B20/B28
LTE-TDD: B38/B40/B41
AU version for Latin America, Australia countries2GGSM/EDGE: B2/B3/B5/B8
3GWCDMA: B1/B2/B4/B5/B8
4GLTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66
LTE-TDD: B40
GPS ModuleQuectel L76K
Input VoltageDC 11~36V/1.5A
Internal Battery600mAh/3.7V
Power Consumption30-65mA standby current
Internal Battery Life100 hours in sleep mode, and 10 hours in normal working mode.
Operating Temperature-20℃~70℃
Humidity5%~95%
LED Light3LED lights indicating GPS/GSM/External power status
Button/ Switch1SOS Button, 1 power switch
Flash Memory8MB (GPSR data 20400 units, SMS data 300 units)
Sensor3D Accelerator sensor
GPS Sensitivity-161dBm
GPS Start SpeedCold start 35s Hot start 1s
Position Accuracy10m
Velocity Accuracy0.1 m/s
I/O Port4 digital input: 1 negative input, 1 positive input, 2 custom input (Default 1 positive input, 1 negative input ) 3 analog input, voltage range: AD1 ~ 0~6V AD2 ~ 0~12V AD3~ 0~12V 2 output 1 RS232 port (camera/RFID reader/two-way calling) 1-wire protocol (temperature sensor/i-Button) 1 USB port

Specifications on this page are the ones published by GOTOP for this model. Ask us before ordering if you need a band, battery or protocol that is not listed.

Related Products

Other Models In This Range

Order Or Modify This Model

Small orders are welcome, and our engineers can change firmware, protocol or housing to match your platform.

FAQ

General GPS Tracking Questions

Answers published by GOTOP for all tracking devices.

How do set up the GPRS?

Make sure the command you set according to the below frequent issue. The SIM card of the Tracker supports the GPRS function. Send the APN set command SMS to configure the application and send SMS to tracker to trigger it reply back information. Set The GPRS signal interval the port number you set for the tracker have its program. If your router is dynamic IP addressing, don not forget to resend APN set command SMS when the IP address is changed. check out the IP address for PC server When you login your router, you will get your IP address in the login box. Also there is some website or software could help you to check your own IP address. setup the port number Port number is a random number which is setup by the end user, please make sure this port is not occupied by other software otherwise the PC server software will shut down automatically. In order to avoid the conflict, we suggest you setup the port number bigger than 6000. check out the APN name of your local telecommunication provider If the GPRS configuration has been wrongly set, the device will spend long time to repeatedly engage at connecting with IP address, this will cause the outing SMS delayed.

Why is your communications more efficient than other providers that I have seen?

Wireless Networks - GSM/GPRS For Real-time GPS tracking, the wireless network is used to communicate the GPS data from the vehicle/asset, so location, speed and stop times can be viewed in Real-time. Think in terms of how mobile phones work. There are two types used; (1) Digital Cellular and (2) Satellite. Obviously, digital cellular is more popular due to cost. This is the same with communicating real-time GPS data for vehicle tracking. Wireless Networks: Cellular vs. Satellite Due to the facts that (1) hardware is less expensive (2) monthly service fees are less expensive (3) superior network reliability; a digital cellular-based system is the best way to go for the vast majority of companies that want to use a real-time system for nearly any type of tracking. Digital Wireless Networks If you are looking to purchase a 1st tier GPS tracking system, then you should be looking for a system that operates on a 1st tier digital wireless network. All of the 1st tier wireless communications companies is the market have moved to digital wireless networks. There are two types of types of digital wireless protocols that the major communication companies have utilized for the build-out of their wireless networks: GSM/GPRS CDMA (1xrt) There is an on-going debate as to which of these protocols is superior for cell phones, but for live data feeds for devices used for GPS tracking, mobile email, and wireless forms, the "always on" technology of GPRS is clearly superior. GPS devices that use this network are "pay as you go" type devices. One should only consider using GPS devices on these networks for applications where only a few location records per day are required. GPS devices that use these networks should never be considered for fleet management applications due to the fact that reporting vehicle activity for a sound fleet management system requires between 1000-3000 records generated per month. The cost of this many records on these networks would be far above the flat fee you would pay with a superior, digital GSM/GPRS.

Can I stop to vehicle/Car remote?

Yes, you can stop the car whenever you want with our GPS tracking devices. Some tracking device would need extra relay; some devices have the relay build-in. After you set the command to cut off vehicle power outage, the car can’t start until you do recover the vehicle.
