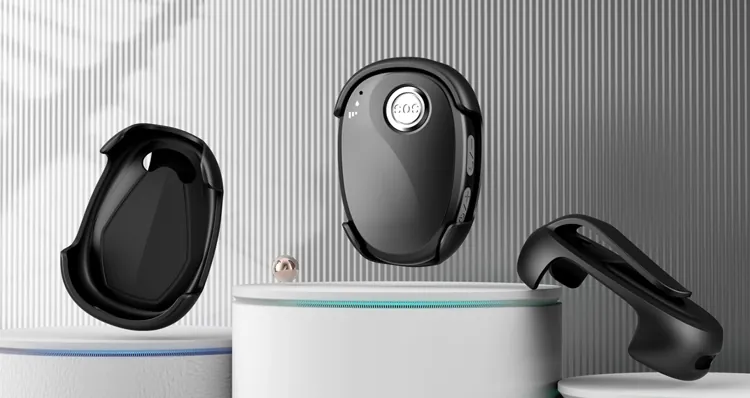

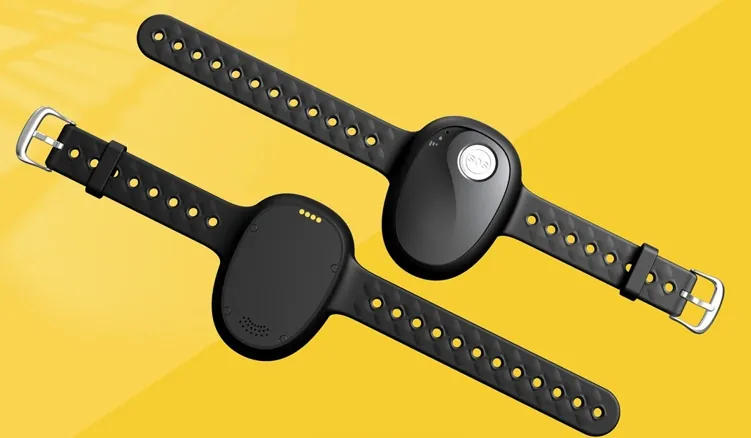

4G SOS GPS Tracker Q20
Q20 is a latest generation new portable GPS tracker designed for kids, elders, employees, lone workers,pets, animals, and valuable asset tracking. It keeps a good balance between size and battery working life,the working time is up to 4 days at every 5 minutes tracking time interval. Q20 has passed IP67 waterproof standard, which is suitable for outdoor activities. With built-in microphone and speaker, This device supports two-way communication between the user and the preset SOS phone guardian. Powered by the built-in 6-axis motion sensor and excellent firmware algorithm, the device is able to detect the Tilt/Man down/Fall down events accurately.
Key function
- Big SOS button for emergency rescued
- Mini size for Elder,Child,Lone worker,Employees etc
- Fall down /Man down/Tilt alarm
- 4G LTE+3G CDMA+2G GSM network for GPS tracking
- Two ways voice communication/Voice monitoring
Feature
- Excellent design for easy portable
- Real time position tracking via 4G LTE and GPRS
- History route from Web GPS platform or APP
- GPS+WIFI+LBS locating
- Call button for phone call direct
- 6-axis motion sensor and vibration motor
- 4MB (Buffer storage: GPRS 8000 PCS, SMS 400 PCS)
- SMS for Google map link position
- Various of alarm modes and call ways
- Alarm SMS Head String and GPRS heartbeat interval
- Geo-fence alarm/Low battery alarm
- Flexible settings for SOS and call button
- Waterproof IP67
- Docking station charging
- Rechargeable 1000 mAh battery for long standby
- Black,Blue,Pink,White and Green color optional
| Items | Descriptions |
|---|---|
| Dimension | 65*46*17mm |
| Weight | 48g |
| GSM Module | Quectel EG915U, Cat 1 type |
| GPS Module | ZKW AT6558R |
| Charging Voltage | DC 5V/1A |
| Internal Battery | 1000mAh/3.7V Lithium ion battery |
| Full charging time | <2 hours 10 minutes |
| Power Consumption | Average 2.4mA standby current |
| Working hours | 5 minutes time interval 3 days 11 hours |
| Microphone | Built-in microphone |
| Speaker | Built-in speaker |
| Operating Temperature | -20℃~70℃ |
| Humidity | 5%~95% |
| Waterproof | IP67 (Testing condition: Immersed in 20cm depth water for 30 minutes) |
| LED Light | 2 LED lights indicate GPS/GSM/Power status |
| Button/Switch | 1 SOS button, 1 power button, 1 call button |
| Flash Memory | 4MB (Buffer storage: GPRS 8000 units, SMS 400 units) |
| Motion Sensor | 6-axis motion sensor |
| Vibration motor | Built-in, vibration reminder incoming call/button press |
| WiFi | 802.11 n (2.4 GHz) |
| Frequency Band E version: for Asia, Europe, Middle East, Africa countries | 2G GSM: 850/900/1800/1900 MHz |
| 4G FDD-LTE: B1/B3/B5/B7/B8/B20/B28 | |
| Frequency Band LA version: for Latin America and Australia countries | 2G GSM: 850/900/1800/1900 MHz |
| 4G FDD-LTE: B2/B3/B4/B5/B7/B8/B28/ B66 | |
| Frequency Band A version: for USA and Canada | 3G WCDMA: B2/B5 (1900/850 MHz) |
| 4G FDD-LTE: B2/B4/B12 | |
| GPS Sensitivity | -167dBm |
| GPS Start Speed | Cold start 30s Hot start 1s |
| Position Accuracy | 2.5m |
| Charging Port | 1 charging/ configuring magnetic connect port |
Specifications on this page are the ones published by GOTOP for this model. Ask us before ordering if you need a band, battery or protocol that is not listed.
Related Products
Other Models In This Range
Personal GPS Tracker
X1 MINI SOS GPS Tracker
Personal GPS Tracker
Watch GPS Tracker L08P
Personal GPS Tracker
Mini Asset GPS Tracker G909-4G
Order Or Modify This Model
Small orders are welcome, and our engineers can change firmware, protocol or housing to match your platform.
FAQ
General GPS Tracking Questions
Answers published by GOTOP for all tracking devices.
How do set up the GPRS?
Make sure the command you set according to the below frequent issue. The SIM card of the Tracker supports the GPRS function. Send the APN set command SMS to configure the application and send SMS to tracker to trigger it reply back information. Set The GPRS signal interval the port number you set for the tracker have its program. If your router is dynamic IP addressing, don not forget to resend APN set command SMS when the IP address is changed. check out the IP address for PC server When you login your router, you will get your IP address in the login box. Also there is some website or software could help you to check your own IP address. setup the port number Port number is a random number which is setup by the end user, please make sure this port is not occupied by other software otherwise the PC server software will shut down automatically. In order to avoid the conflict, we suggest you setup the port number bigger than 6000. check out the APN name of your local telecommunication provider If the GPRS configuration has been wrongly set, the device will spend long time to repeatedly engage at connecting with IP address, this will cause the outing SMS delayed.
Who does tracker use for maps and map data?
Currently, GPS tracker Systems is using the Google mapping interface for maps, and partners for the street level data that is displayed on the maps. It is able to use any mapping interface and can customize mapping solutions based on the specific requests or needs.
What is GPRS?
GPRS (General Packet Radio Service) is a digital, IP-based wireless packet data service offered by GSM-based cellular carriers, there is not a new technology out there on the market. GPS Tracker & GPRS or General Packet Radio Services has been around for quite some time. Established in the early 2000’s, GPRS is an extension of the Global System for Mobile Communications.
