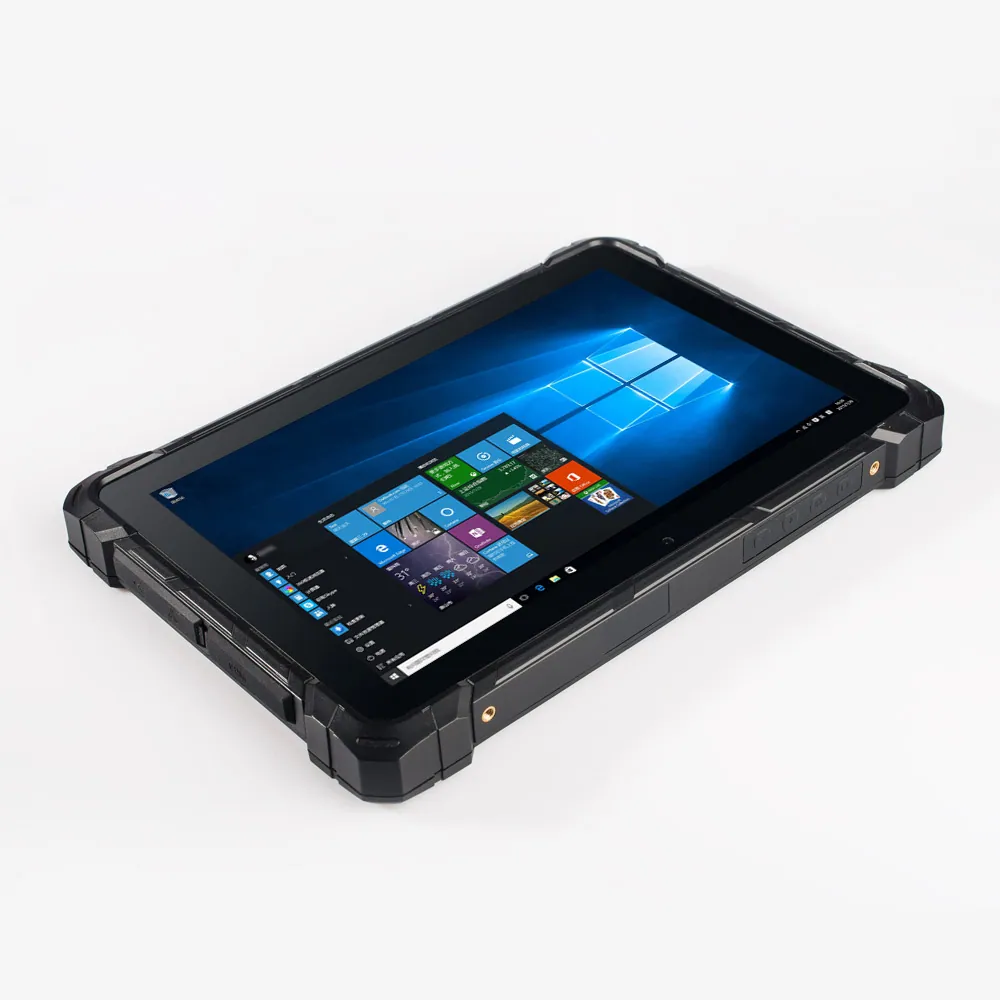

Windows Rugged Tablet
- 10.1 inch 1920*1200 IPS LCD Multi-Touch Screen display
- Intel Z8350 CPU
- RAM 4GB + eMMc 64GB
- Wi-Fi

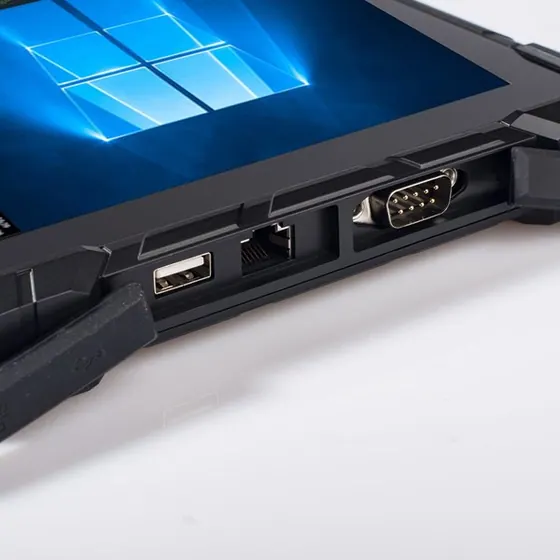

- 1*RJ-45 port
- HDMI out
- RS-232(DB9)
- Low power consumption with fanless design
- IP67 water and dust proof
Working with RESUN on this model
- Customised I/O, IP65 front bezel, 7H anti-scratch panel, open frame or flat screen housing.
- RFID, NFC, front camera and barcode reader can be integrated.
- Multiple CPU, memory, storage and operating system options.
- Two-year warranty on computer and monitor hardware.

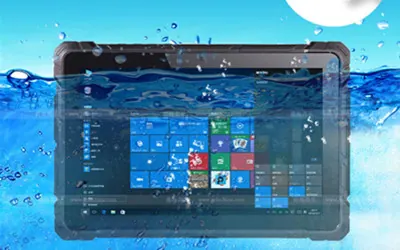

10.1 inch Windows Rugged Industrial Tablet, With IP67 protection housing for water and dust resistance.

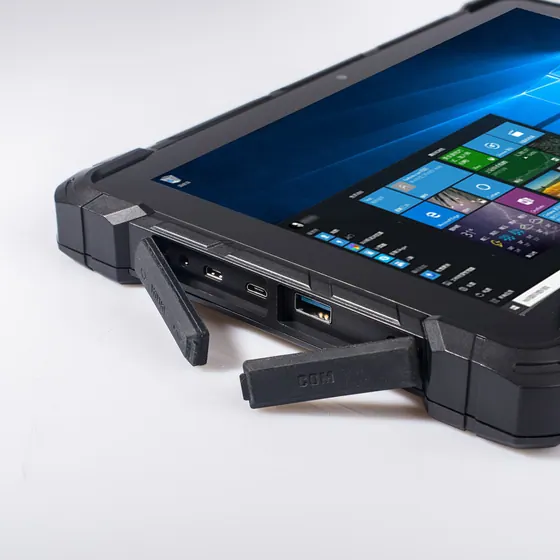

IP67 industrial tablet
industrial tablet
RUGGED TABLET
| LCD Panel | Screen Size | 10.1 inch | ||||
| Screen Resolution | 1200×1920 (IPS+FHD+300ANSI) (Standrd) | |||||
| 800×1280 (IPS+HD+500ANSI) (Optional, For MOQ order) | ||||||
| Touch Screen | Touch Module | G+G Multi-Touch | ||||
| Battery | Type | Rechargeable lithium polymer | ||||
| Capacity | 12000mAh/3.7V | |||||
| Working Time | Over 8 hours (FHD local video display) | |||||
| System Hardware Configuration: | ||||||
| Type | Details | Descriptions | ||||
| CPU | Type | Intel Cherry Trail x5-Z8350 Quad-Core | ||||
| Speed | 1.44GHz ~ 1.92GHz | |||||
| GPU | Type | Intel HD Graphics Gen8 | ||||
| Memory | Capacity | 4GB | ||||
| Storage | eMMC | 64GB | ||||
| SSD | / | |||||
| SATA 2.5“ HDD | / | |||||
| Camera | Front | 2M | ||||
| Rear | 5M | |||||
| Speaker | Built-in | 8Ω/1W with water proof | ||||
| Micphone | Built-in | Yes | ||||
| G-sensor | Built-in | Yes | ||||
| Network Connections: | ||||||
| Type | Details | Descriptions | ||||
| WIFI | WIFI Module: Broadcom AP6255/AP6256 | WIFI 802.11ac/b/g/n 2.4G&5Ghz Dual-band | ||||
| Bluetooth | BT Module: Broadcom AP6255/AP6256 | Bluetooth4.0 | ||||
| 3G/4G LTE | Optional | Optional with external small PCBA | ||||
| QR code Scanners | Optional | Optional | ||||
| NFC | Optional | Optional | ||||
| GPS | BD2/GPS | Optional | ||||
| Fingerprinter | Capacitive fingerprint sensor | Optional | ||||
| Ethernet Network | RJ-45 | 1000Mbps Gigabit Lan | ||||
| Interface Configuration: | ||||||
| Type | Details | Descriptions | ||||
| USB Interface | USB3.0 | ×1pc | ||||
| USB2.0 | ×2pcs (USB2.0 TypeA×1 + Micro USB2.0×1) | |||||
| SD / TF Card reader | TF Card reader | ×1pc (up to 128GB) | ||||
| SIM Card Slot | SIM Slot for 3G/4G LTE | Optional | ||||
| Audio Jack | 3.5mm standard | ×1pc | ||||
| HDMI | Micro HDMI 1.4 | ×1pc | ||||
| Video output through HDMI | Up to 4K | |||||
| COM Port | DB9 (RS232) | ×1pc (External small PCBA) | ||||
| Button Switch: | ||||||
| Type | Details | Descriptions | ||||
| Power | On/Off | *1pc | ||||
| Volume | Down/UP | (1pc | ||||
| CMOS Reset | Reset by Short Press | / | ||||
| Main Accessories: | ||||||
| Type | Details | Descriptions | ||||
| Power adapter | DC 5V/3A | *1pc | ||||
| User’s Manual | User’s Manual | ×1pc | ||||
| Handle Straps | Optional | Optional | ||||
| Extension Docking | USB2.0×1pc ; DC IN × 1pc | Optional | ||||
| Software Configuration: | ||||||
| Type | Details | Descriptions | ||||
| Wake up on Lan | Wake up on Lan by RJ45 | / | ||||
| PXE | Preboot Execution Environment | / | ||||
| Operating System | Windows 10 | Optional | ||||
| Linux | Test by end user | |||||
| IP67 | IP67 Certification | Yes | ||||
Ask about the EB-101GF
Send the configuration you need — CPU, memory, storage, operating system, I/O and quantity — and RESUN Electronics Co., Ltd. will confirm the build and quote it.
Other Waterproof Panel PC models
See all 6
8"8 inch Waterproof Panel PC
Model EB-820IP67
8.4"8.4 inch Waterproof Panel PC
Model EB-84PCIP67
- 8.4 inch Waterproof Industrial Panel PC
- Optical Enhancements, Sunlight Readable Display
- 1000 Nits high brightness
10.1"10.1″ Waterproof Touch Screen Computer
Model EB-101OEM
- 10.1″ Touchscreen Waterproof Panel PC
- 10.1″ true flat Capacitive touch Screen, easy-to-clean front surface
- Intel Celeron J1900 2.42GHz Quad Core Processor
10.4"10.4″ Waterproof Panel PC
Model EB-14OEM67
- 10.4″ true flat capacitive touch screen (1024*768)
- Intel Celeron Quad Core Processor
- Waterproof (1*LAN, 1*USB2.0, 1*COM, 1*DC-12V).
15"15 inch Waterproof Panel PC
- 15 inch Full IP67 Waterproof Touch Screen Computer
- 15 inch 1024 x 768 industrial LCD panel
- IP67 compliant aluminum housing
Frequently Asked Questions
Can this model be customised?
Yes. RESUN is an OEM/ODM manufacturer, so I/O, housing, mounting, touch technology, IP rating, RFID or NFC, camera and barcode reader can be changed to suit the application.
What is the lead time and minimum quantity?
Both depend on the configuration and the volume. Send your requirement to +86-1351-0185730 or through the contact page and the sales team will confirm.
Is a sample available before production?
Yes. The custom design route includes sample making and sample approval before mass production; for a standard configuration a sample unit can be quoted directly.
What warranty applies?
Two years from the date of purchase against manufacturing and material defects on computer and monitor hardware.
