10.1″ Waterproof Touch Screen Computer
- 10.1″ Touchscreen Waterproof Panel PC
- 10.1″ true flat Capacitive touch Screen, easy-to-clean front surface
- Intel Celeron J1900 2.42GHz Quad Core Processor
- M14 IP67 rated connectors: (customized)
Working with RESUN on this model
- Customised I/O, IP65 front bezel, 7H anti-scratch panel, open frame or flat screen housing.
- RFID, NFC, front camera and barcode reader can be integrated.
- Multiple CPU, memory, storage and operating system options.
- Two-year warranty on computer and monitor hardware.
10.1 inch Waterproof Touch Screen Computer

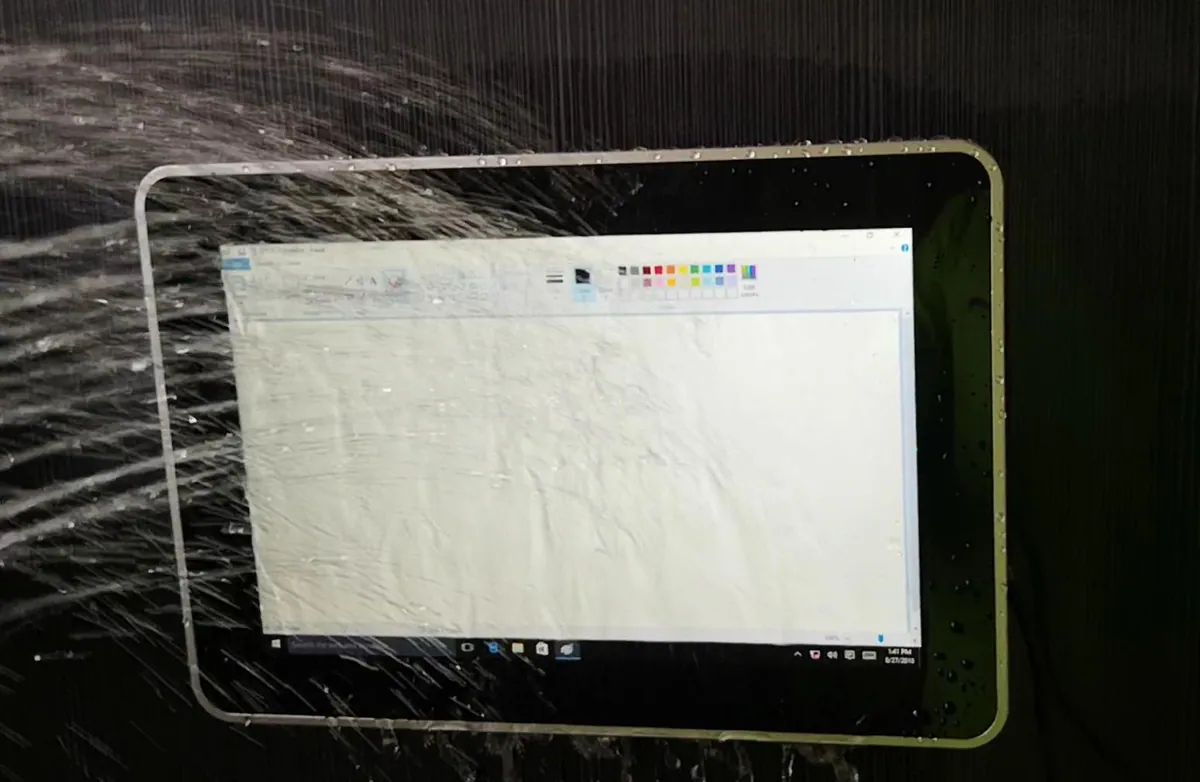

The model # EB-101OEM Waterproof Touch Screen Panel PC is an ideal 10″ Capacitive Touch Screen control device for industrial environments where dust, water are present. 10.1 inch LCD display with a resolution of 1280 * 800. which has multi-touch projected capacitive touch screen.
The M14 connectors sealed IP67 housing makes it ideal for food and beverage or meat processing environments. The fanless cooling design ensure that you can confidently place this waterproof panel pc into the most demanding workplaces.
| O/S | Linux / Windows OS support | |||||||
| CPU | Intel® Celeron® Processor J1900 (2M Cache, up to 2.42 GHz) | |||||||
| Chipsets | Intel® Bay Trail SOC | |||||||
| RAM | 4GByte DDR3L-1600 | |||||||
| Hard Drive | 32GB SSD | |||||||
| Graphic | Intel® HD Graphics (854 MHz) | |||||||
| Audio | Realtek HD ALC 662 | |||||||
| LAN | Realtek RTL8111E | |||||||
| External Ports (M14 IP67 sealed) | 1*LAN | |||||||
| 1*USB2.0 | ||||||||
| 1*COM | ||||||||
| 1*DC-12V | ||||||||
| Internal port | 1*Sata 300MB/S (1*MSATA) | |||||||
| 1*MiniPCI-E | ||||||||
| Input Voltage | DC-12v | |||||||
| Operating Temperature | ,-10℃ to +60℃ | |||||||
| Driver | Windows, Linux; | |||||||
| Display(mm) | 216.96×135.6 | |||||||
| Aspect Ratio | 16:10 | |||||||
| Physical Resolution | 1280（W)*800(H) | |||||||
| Brightness | 300 cd/m² | |||||||
| Contrast Ratio | 800:1 | |||||||
| React time | 2ms/6ms | |||||||
| Visual angle | 85/85/85/85(L/R/U/D) | |||||||
| Touch Panel | Projected capacitive touch panel(10 point touch) | |||||||
| Touch Panel Driver | Windows, Linux, | |||||||
| React time touch panel | <10 ms | |||||||
| Surface Hardness | ≥6H | |||||||
| Power Supply | AC100-240V,DC12V | |||||||
| Cooling System | Fanless | |||||||
| Protection grade | completely IP67 | |||||||
| Install | VESA100x100mm | |||||||
| Case | Aluminum | |||||||
| Size(WxHxD)(mm) | 270x186x50 | |||||||
10.1 inch waterproof panel pc
COM waterproof cable
Ask about the EB-101OEM
Send the configuration you need — CPU, memory, storage, operating system, I/O and quantity — and RESUN Electronics Co., Ltd. will confirm the build and quote it.
Other Waterproof Panel PC models
See all 6
- 10.1 inch 1920*1200 IPS LCD Multi-Touch Screen display
- Intel Z8350 CPU
- RAM 4GB + eMMc 64GB
8"
8.4"- 8.4 inch Waterproof Industrial Panel PC
- Optical Enhancements, Sunlight Readable Display
- 1000 Nits high brightness
10.4"- 10.4″ true flat capacitive touch screen (1024*768)
- Intel Celeron Quad Core Processor
- Waterproof (1*LAN, 1*USB2.0, 1*COM, 1*DC-12V).
15"- 15 inch Full IP67 Waterproof Touch Screen Computer
- 15 inch 1024 x 768 industrial LCD panel
- IP67 compliant aluminum housing
Frequently Asked Questions
Can this model be customised?
Yes. RESUN is an OEM/ODM manufacturer, so I/O, housing, mounting, touch technology, IP rating, RFID or NFC, camera and barcode reader can be changed to suit the application.
What is the lead time and minimum quantity?
Both depend on the configuration and the volume. Send your requirement to +86-1351-0185730 or through the contact page and the sales team will confirm.
Is a sample available before production?
Yes. The custom design route includes sample making and sample approval before mass production; for a standard configuration a sample unit can be quoted directly.
What warranty applies?
Two years from the date of purchase against manufacturing and material defects on computer and monitor hardware.
