10.4″ Waterproof Panel PC
- 10.4″ true flat capacitive touch screen (1024*768)
- Intel Celeron Quad Core Processor
- Waterproof (1*LAN, 1*USB2.0, 1*COM, 1*DC-12V).
- 4GB RAM
- 32 GB SSD
- Automatic Ambient Light Sensor
- Windows 10, Linux OS support
Working with RESUN on this model
- Customised I/O, IP65 front bezel, 7H anti-scratch panel, open frame or flat screen housing.
- RFID, NFC, front camera and barcode reader can be integrated.
- Multiple CPU, memory, storage and operating system options.
- Two-year warranty on computer and monitor hardware.

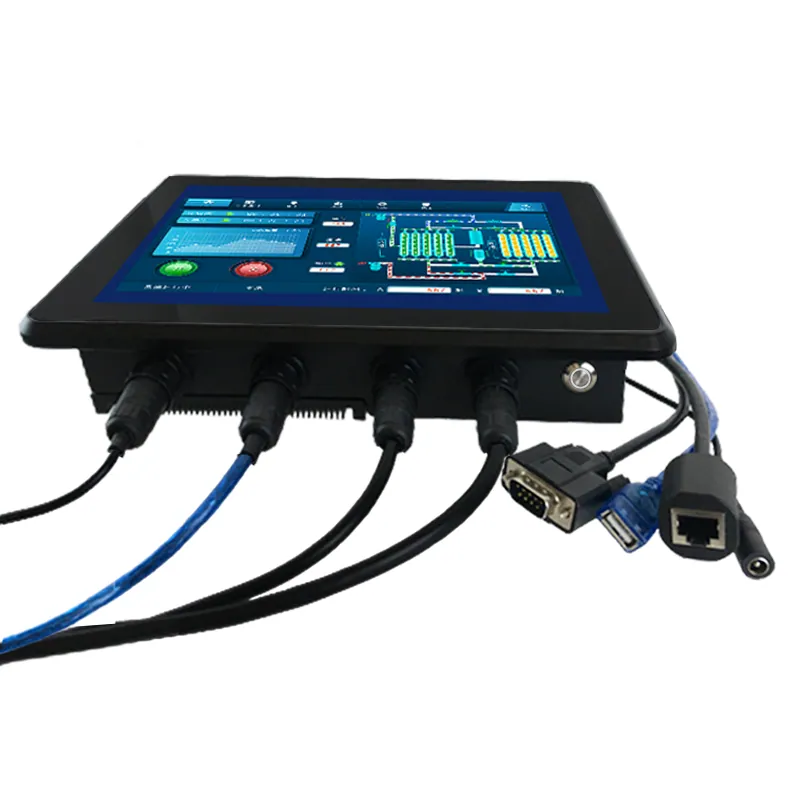

10.4″ IP65 Touch Screen Waterproof Panel PC
This Waterproof Panel PC can withstand dust and liquids, including cleaning chemicals often used in demanding environments. The 10.4″ weatherproof touch screen panel computer has waterproof connectors made with anti-corrosion metal, to ensure the design is fully waterproof. These weather proof touch screens utilize state-of-the-art LED backlights. Therefore, the result is an amazingly bright screen. This will provide you with crystal-clear images, even in direct, bright sunlight on the face of the screen.
This 10.4″ Waterproof Touch Computer is engineered with aluminum alloy or stainless steel chassis, with IP65 rated protected connectors, making it perfect for harsh operational environments. Its IP65 sealed design ensures quiet, maintenance-free operation with efficient power use, making it an ideal choice for IP65 Windows Panel PC applications in industries like manufacturing, building automation, to withstand tough and rugged environments, for both indoors and out.
| O/S | Linux / Windows | |||||||
| CPU | Intel Celeron CPU | |||||||
| Chipsets | Intel Bay Trail SOC | |||||||
| RAM | 4GByte DDR3L-1600 , 8GB | |||||||
| Hard Drive | 32GB SSD , 1TB | |||||||
| Graphic | Intel® HD Graphics (854 MHz) | |||||||
| Audio | Realtek HD ALC 662 | |||||||
| LAN | Realtek RTL8111E | |||||||
| External Ports (IP67 terminal) | 1*LAN | |||||||
| 1*USB2.0 | ||||||||
| 1*COM | ||||||||
| 1*DC-12V | ||||||||
| Internal port | 1*Sata 300MB/S (1*MSATA) | |||||||
| 1*MiniPCI-E | ||||||||
| Input Voltage | DC-12v | |||||||
| Operating Temperature | ,-10℃ to +60℃ | |||||||
| Driver | Windows, Linux; | |||||||
| Display(mm) | 211.2 × 158.4 mm (A.A) | |||||||
| Aspect Ratio | 4:3 | |||||||
| Physical Resolution | 1024（W)*768(H) | |||||||
| Brightness | 300 cd/m², Optional 1000 nit High Brightness | |||||||
| Contrast Ratio | 800:1 | |||||||
| React time | 2ms/6ms | |||||||
| Visual angle | 85/85/85/85(L/R/U/D) | |||||||
| Touch Panel | Projected capacitive touch panel(10 point touch) | |||||||
| Touch Panel Driver | Windows, Linux, | |||||||
| React time touch panel | <10 ms | |||||||
| Surface Hardness | ≥6H | |||||||
| Power Supply | AC100-240V,DC12V | |||||||
| Cooling System | Fanless | |||||||
| Protection grade | completely IP67 | |||||||
| Install | VESA100x100mm | |||||||
| Case | Aluminum | |||||||
Ask about the EB-14OEM67
Send the configuration you need — CPU, memory, storage, operating system, I/O and quantity — and RESUN Electronics Co., Ltd. will confirm the build and quote it.
Other Waterproof Panel PC models
See all 6
- 10.1 inch 1920*1200 IPS LCD Multi-Touch Screen display
- Intel Z8350 CPU
- RAM 4GB + eMMc 64GB
8"
8.4"- 8.4 inch Waterproof Industrial Panel PC
- Optical Enhancements, Sunlight Readable Display
- 1000 Nits high brightness
10.1"- 10.1″ Touchscreen Waterproof Panel PC
- 10.1″ true flat Capacitive touch Screen, easy-to-clean front surface
- Intel Celeron J1900 2.42GHz Quad Core Processor
15"- 15 inch Full IP67 Waterproof Touch Screen Computer
- 15 inch 1024 x 768 industrial LCD panel
- IP67 compliant aluminum housing
Frequently Asked Questions
Can this model be customised?
Yes. RESUN is an OEM/ODM manufacturer, so I/O, housing, mounting, touch technology, IP rating, RFID or NFC, camera and barcode reader can be changed to suit the application.
What is the lead time and minimum quantity?
Both depend on the configuration and the volume. Send your requirement to +86-1351-0185730 or through the contact page and the sales team will confirm.
Is a sample available before production?
Yes. The custom design route includes sample making and sample approval before mass production; for a standard configuration a sample unit can be quoted directly.
What warranty applies?
Two years from the date of purchase against manufacturing and material defects on computer and monitor hardware.
