Home/Products/Waterproof Panel PC/8.4 inch Waterproof Panel PC

8.4 inch Waterproof Panel PC

Name: 8.4 inch Waterproof Panel PC
Brand: RESUN
SKU: EB-84PCIP67

EB-84PCIP67Model number

8.4″Screen size

Waterproof Panel PCRange

8.4 inch Waterproof Industrial Panel PC
Optical Enhancements, Sunlight Readable Display
1000 Nits high brightness
AG film on LCD Screen, that reduce the sparkling of high-definition LCD displays, also reduce the glare of display.
Full IP67 rated watertight enclosures, and watertight screw-on I/O ports cables.

Call +86-1351-0185730 Request a quotation

Working with RESUN on this model

Customised I/O, IP65 front bezel, 7H anti-scratch panel, open frame or flat screen housing.
RFID, NFC, front camera and barcode reader can be integrated.
Multiple CPU, memory, storage and operating system options.
Two-year warranty on computer and monitor hardware.

See the custom design process

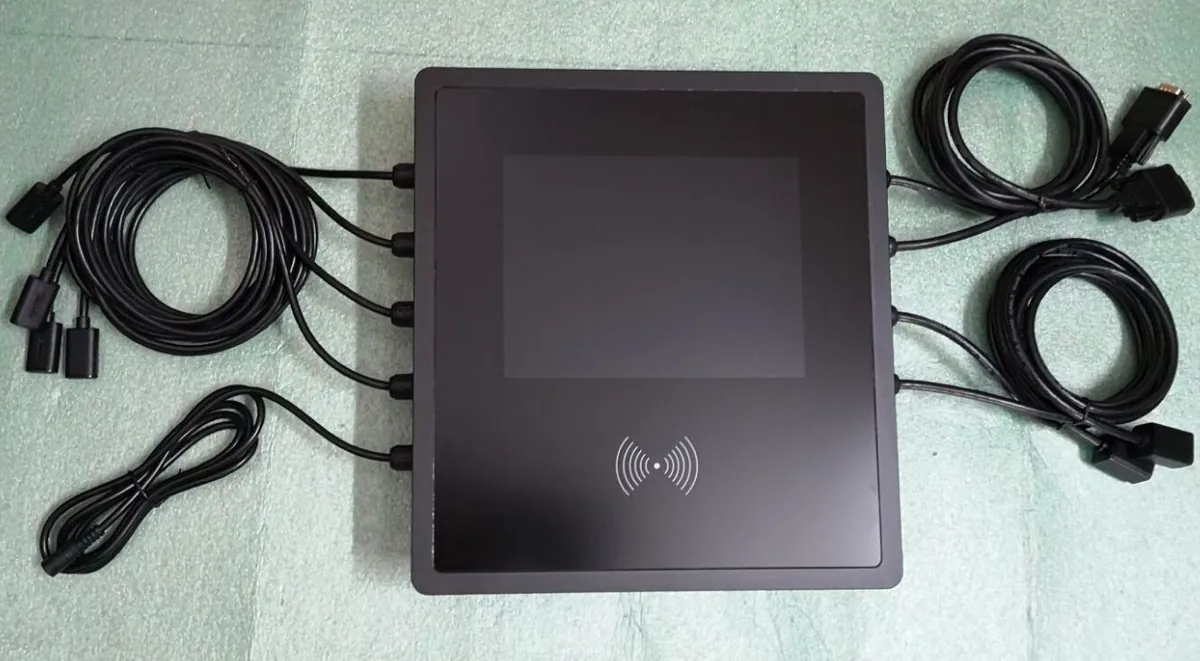

8.4 inch Outdoor Waterproof Panel PC

Fully IP67 rated Waterproof embedded computer integrated 8.4 inch touch screen monitor, which enclosure which is especially for a wide range of factor equipment control application.

EB-84PCIP67 is a high-performance industrial panel computer and completely fanless solution for applications in outdoor, and harsh environment ,that comes with Intel processor, 8.4″ wide View-angle display, with high-end 1000 brightness sunlight readability, thanks to top quality of optical bonding technology and Full Flat Capactive Touch Screen. IP67 rating waterproof sealing enclosure and IP67 Waterproof I/O connectors for Ethernet ,COM port, DC power and USB interfaces.

O/S			Support Linux / Windows7/ 8 /10
CPU			Intel® Celeron® Processor J1900 (2M Cache, up to 2.42 GHz)
Chipsets			Intel® Bay Trail SOC
RAM			4GByte DDR3L-1600
Hard Drive			64GB SSD
Graphic			Intel® HD Graphics
Audio			Realtek HD ALC282
LAN			Intel I211AT 10/100/1000mbps 2*RJ45
External Ports (IP67 terminal)			2*LAN
			4*USB2.0
			2*COM_RS232
			1*DC-12V
Internal port			1*Sata
			1*Msata
			1*Mini PCIE
			HDMI
			VGA
			GPIO
			2*USB 2.0
			6*COM
Input Voltage			DC-12v
Operating Temperature			,-20℃ to +60℃
Operating humidity			0~85%RH
Driver			Windows, Linux;
Display(mm)			170.5 × 127.87 mm (H×V)
Aspect Ratio			4:3
Physical Resolution			1024（W)*768(H)
Brightness			1000 cd/m²
Contrast Ratio			1000:1
React time			40 (Max.)(Tr+Td) ms
Visual angle			89/89/89/89(L/R/U/D)
Touch Panel			Projected capacitive touch panel(10 point touch)
Panel thickness			Thickness 3mm toughened glass panel (Thickness can be customized)
React time touch panel			<10 ms
Surface Hardness			≥6H
RFID (Embedded)			125 KHz
			Support TK4100 EM4100 EM4200 ID card
			Output format: default 10 bit 10 binary (4 byte), support custom output format.
Power Supply			AC100-240V,DC12V
Cooling System			Fanless
Protection grade			Entirely IP67
Install			VESA100x100mm
Case			Aluminum

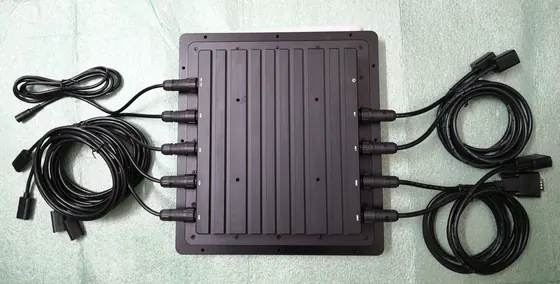

waterproof computer

Ask about the EB-84PCIP67

Send the configuration you need — CPU, memory, storage, operating system, I/O and quantity — and RESUN Electronics Co., Ltd. will confirm the build and quote it.

Call +86-1351-0185730 Request a quotation

Other Waterproof Panel PC models

See all 6

Windows Rugged Tablet

Model EB-101GF

10.1 inch 1920*1200 IPS LCD Multi-Touch Screen display
Intel Z8350 CPU
RAM 4GB + eMMc 64GB

View specification

8 inch Waterproof Panel PC

Model EB-820IP67

View specification

10.1"

10.1″ Waterproof Touch Screen Computer

Model EB-101OEM

10.1″ Touchscreen Waterproof Panel PC
10.1″ true flat Capacitive touch Screen, easy-to-clean front surface
Intel Celeron J1900 2.42GHz Quad Core Processor

View specification

10.4"

10.4″ Waterproof Panel PC

Model EB-14OEM67

10.4″ true flat capacitive touch screen (1024*768)
Intel Celeron Quad Core Processor
Waterproof (1*LAN, 1*USB2.0, 1*COM, 1*DC-12V).

View specification

15"

15 inch Waterproof Panel PC

15 inch Full IP67 Waterproof Touch Screen Computer
15 inch 1024 x 768 industrial LCD panel
IP67 compliant aluminum housing

View specification

Frequently Asked Questions

Can this model be customised?

Yes. RESUN is an OEM/ODM manufacturer, so I/O, housing, mounting, touch technology, IP rating, RFID or NFC, camera and barcode reader can be changed to suit the application.

What is the lead time and minimum quantity?

Both depend on the configuration and the volume. Send your requirement to +86-1351-0185730 or through the contact page and the sales team will confirm.

Is a sample available before production?

Yes. The custom design route includes sample making and sample approval before mass production; for a standard configuration a sample unit can be quoted directly.

What warranty applies?

Two years from the date of purchase against manufacturing and material defects on computer and monitor hardware.
