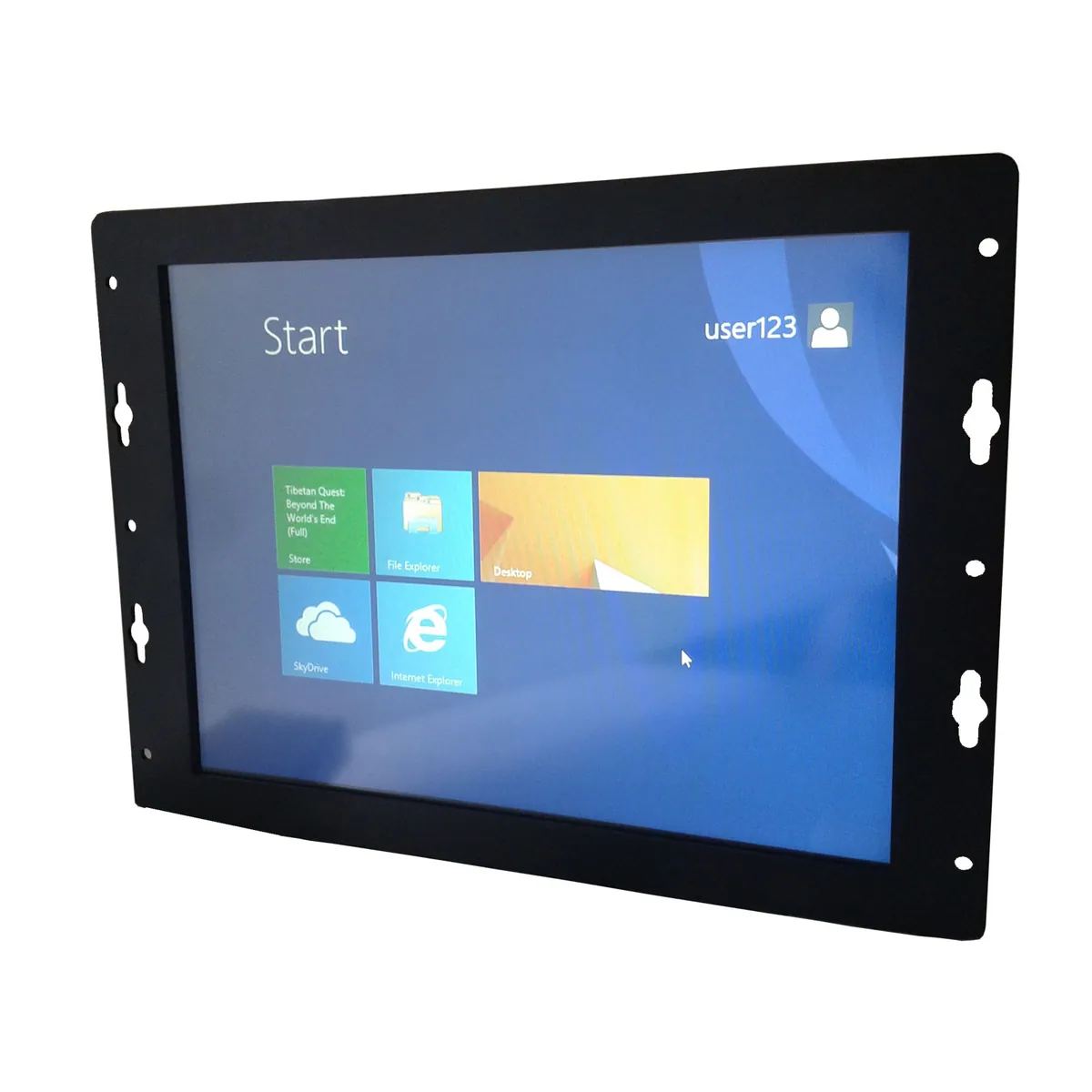

10.4 inch Open Frame Panel PC
- 10.4 inch 4:3 LCD Touch Screen Display
- 800*600 resolution
- Intel Celeron J1900, Quad core CPU
- 4GByte DDR3-1600 Memory(option)
- 16GByte mSATA SSD (option)
- Fanless Design and Ultra-low Power Usage
- IP67 Protected Front with Aluminum Housing
- 12V DC power input (Wide range power input 12~30VDC is optional)
- Customized design support service
Working with RESUN on this model
- Customised I/O, IP65 front bezel, 7H anti-scratch panel, open frame or flat screen housing.
- RFID, NFC, front camera and barcode reader can be integrated.
- Multiple CPU, memory, storage and operating system options.
- Two-year warranty on computer and monitor hardware.
10.4″ 800*600 resolution LCD Display, Industrial Touch Screen Panel PC
10.4″ Panel Computer with Open Frame Chassis Mount
This Open Frame Panel Computer incorporates a touchscreen display into the same enclosure as its internal components such as the motherboard, SSD, I/O ports, and power supply, based on Windows or Linux OS, The RESUN Open-frame Panel PC design delivers high-end performance coupled with a compact footprint, built to withstand temperature fluctuations, such as, extreme heat, or cold, which is frequent in industrial environments.
This 10.4″ Open frame panel PCs feature a wide variety of mounting options, including panel and VESA mount types. They can be mounted into an enclosure, onto a machine, or inside a industrial cabinet. The panel mount is the most frequent mounting style in factory automation applications.
| O/S | drivers for Linux ,Windows included | |||||||
| CPU | Intel® Celeron® Processor J1900 (2M Cache, up to 2.42 GHz) | |||||||
| RAM | 4GByte DDR3-1600 option | |||||||
| Hard Drive | 16GByte mSATA SSD option | |||||||
| Graphic | Intel® HD Graphics | |||||||
| Audio | Realtek HD ALC 662 | |||||||
| LAN | Realtek RTL8111E, 2*10/100/1000MBit RJ45 Ports | |||||||
| USB | 8* USB 2.0 ports, 4 as external | |||||||
| External Ports | 4*USB 2.0 | |||||||
| 2* COM-RS232 | ||||||||
| 1*RS485/422 | ||||||||
| 2*RJ45 | ||||||||
| VGA | ||||||||
| Audio-in/ Audio-out | ||||||||
| PS/2(Mouse Keyboard) | ||||||||
| LPT | ||||||||
| Power on/off | ||||||||
| DC-IN 8V~36V wide voltage (screwable) | ||||||||
| Internal port | 2*Sata 300MB/S (1*MSATA) | |||||||
| 1*MiniPCI-E | ||||||||
| PCI | ||||||||
| SATA2 | ||||||||
| 4*COM | ||||||||
| Power consumption | 20W | |||||||
| Input Voltage | 12V DC-IN (option for 8V~36V Wide voltage) | |||||||
| Operating Temperature | ,-10℃ to +60℃ | |||||||
| Storage Temperature | ,-20℃ to +70℃ | |||||||
| Screen | 10.4 inch LCD | |||||||
| Display | 245.76×184.32mm | |||||||
| Aspect Ratio | 4:3 | |||||||
| Physical Resolution | 800（W)*600(H) | |||||||
| Brightness | 420cd/㎡ | |||||||
| Contrast Ratio | 550:1 | |||||||
| React time | 2ms/6ms | |||||||
| Viewing Angle | 80/80/60/80 (Typ.)(CR≥10)(L/R/U/D) | |||||||
| Touch Panel | 5 wire resistive touch | |||||||
| Touch Panel Driver | Windows, Linux, Marc | |||||||
| React time touch panel | <10 ms | |||||||
| Surface Hardness | 3H | |||||||
| Power Supply | AC100~240V,DC12V | |||||||
| Cooling System | Fanless | |||||||
| Front Panel | ||||||||
| Install | Embedded , VESA, Wall mounting | |||||||
| Case | Stainless steel or Aluminum | |||||||
flush mount touch screen PCs
Ask about the EB-104OPF
Send the configuration you need — CPU, memory, storage, operating system, I/O and quantity — and RESUN Electronics Co., Ltd. will confirm the build and quote it.
Other Open Frame Panel PC models
See all 3
12.1"- based on the Intel® Celeron® Processor J1900 2M Cache, up to 2.42 GHz
- Running Windows or Linux
- 12.1” resistive touchscreen
9.7"- 9.7″ Waterproof IP64 Rated Panel PC – Rugged Industrial Tablet
- Waterproof. Shockproof. IP64 rating Sealed.
- Built with military grade components to withstand conditions that would cause a consumer grade tablet to fail
17"- Aluminum front panel & PC Case
- 17″ TFT LCD panel display with touch screen
- Wireless LAN module (optional)
9.7"- 9.7″ True-Flat Projective Capacitive Touch screen
- Aluminum Housing
- Powered by Intel Celeron CPU J1900 (2M Cache, up to 2.42 GHz)
18.5"- 18.5 inch Fanless Touch Screen Panel PC with RFID Reader
- IP65 rated front bezel
- 18.5 inch 1366 * 768 LED backlight LCD monitor
- Face recognition temperature meansurement solution.
- 8 inch LCD Display
- Melexis Infrared Camera Temperature Measurement
10.4"- 10.4 inch Foldable TFT LCD VGA Touch Screen Monitor
- with HDMI and DVI input
15"- 15 inch Industrial Open Frame Panel PC
- Intel Celeron J1900 Quad Core
- Option for high brightness LCD panel
Frequently Asked Questions
Can this model be customised?
Yes. RESUN is an OEM/ODM manufacturer, so I/O, housing, mounting, touch technology, IP rating, RFID or NFC, camera and barcode reader can be changed to suit the application.
What is the lead time and minimum quantity?
Both depend on the configuration and the volume. Send your requirement to +86-1351-0185730 or through the contact page and the sales team will confirm.
Is a sample available before production?
Yes. The custom design route includes sample making and sample approval before mass production; for a standard configuration a sample unit can be quoted directly.
What warranty applies?
Two years from the date of purchase against manufacturing and material defects on computer and monitor hardware.
