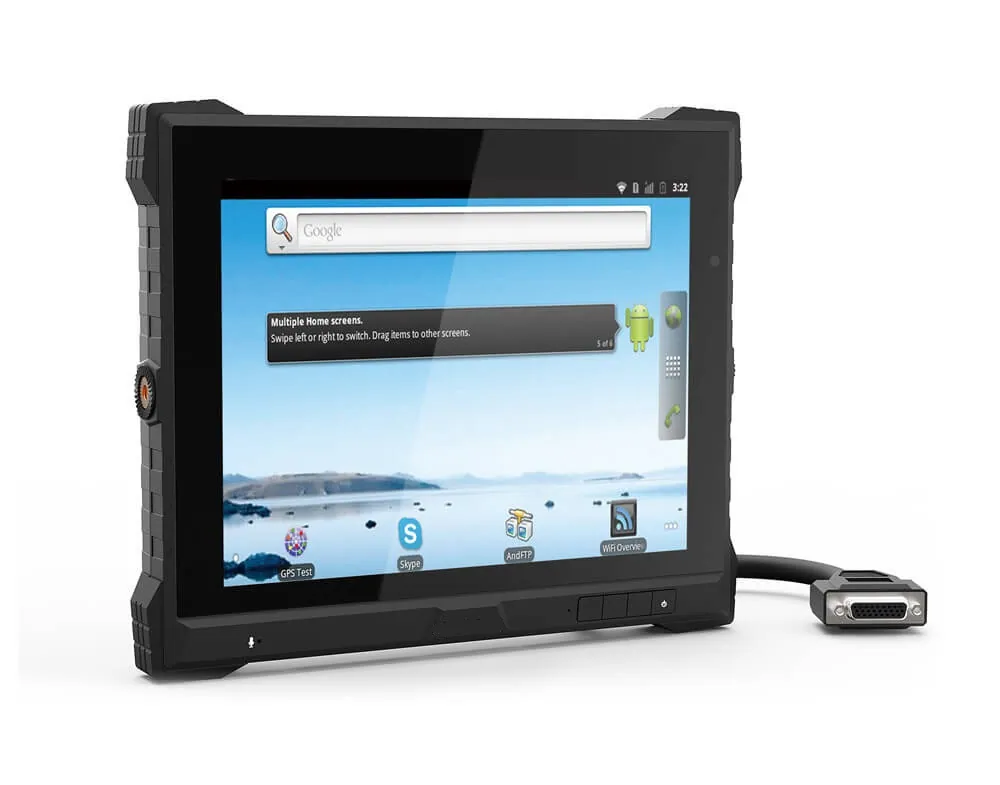

9.7 inch Rugged Industrial Tablet
- 9.7″ Waterproof IP64 Rated Panel PC – Rugged Industrial Tablet
- Waterproof. Shockproof. IP64 rating Sealed.
- Built with military grade components to withstand conditions that would cause a consumer grade tablet to fail
- Powered by Freescale iMX.6 Quad core 1.0GHz processor
- PoE(Power over Ethernet) Gbite Ethernet(optional)
Working with RESUN on this model
- Customised I/O, IP65 front bezel, 7H anti-scratch panel, open frame or flat screen housing.
- RFID, NFC, front camera and barcode reader can be integrated.
- Multiple CPU, memory, storage and operating system options.
- Two-year warranty on computer and monitor hardware.
9.7 inch Waterproof Rugged Tablet Computer based on Android OS
With over 10 years of experience in the design and manufacture of rugged HMI devices, RESUN has redefined the “Android Panel PC Human Machine Interface” with the next generation of HMI.
This Android Embedded PC will empower Industrial applications to improve efficiency, connectivity, time savings, and cost savings.
RESUN Android Panel PC devices is a complete package of hardware with a user interface development platform that allows users to utilize the significant advantages of the Android operating system.
RESUN Android Panel PC allows the operators to easily connect, control the advanced machines with an Industrial Rugged Android Device.
| Display Screen | 9.7″ IPS LCD display |
| Resolution | 1024*768 pixel |
| Touch Panel | Capacitive Touch Screen |
| Brightness | 350cd/㎡ |
| Aspect Ratio | 4:3 |
| Contrast | 900:1 |
| Viewing Angle | 178°/ 178°(H/V) |
| OS | Android 5.1.1 / Linux Debian 7.0 / WinCE 7.0 |
| CPU | Freescale iMX.6 Quad core 1.0GHz |
| GPU | 3D 200Mtri/s 1000Mpxl/s, OpenGL ES 3.0 & Halti, CL EP |
| Media | Audio: MP3, MP4, WMA, WAV… Video Decode 1080p60 H.264 Video Encode 1080p30 H.264 BP/ Dual 720p |
| Core | ARM Cortex-A9 |
| Memory | ROM: 8GB Flash, RAM: DDR3-1066 (533MHz) 1GBytes, up to 2GBytes |
| Expansion Storage | Micro SD card slot, USB Device 2.0, USB host 2.0 |
| LAN | LAN Ethernet |
| Interface | RS232×4 / RS232×3, RS485×1 / RS232×2, RS422×1, RS485×1 (optional RS485 / RS422 interface) GPIO input×4, GPIO output×6 |
| Audio | Ear phone jack ×1, Microphone jack (optional) |
| Optional Extensions | 3G\Wi-Fi & Bluetooth\Camera\GPS\ACC\PoE (Power over Ethernet) |
| Power Consumption | 9W(Normal mode), 24W(Charging mode) |
| Working Temperature | -20 – 60ºC |
| Storage Temperature | -30 – 70ºC |
| Power Supply | DC 9-36V |
| Battery | Built-in 5000mAh (optional) |
Rugged Tablet PC
Ask about the 9.7 inch Rugged Industrial Tablet
Send the configuration you need — CPU, memory, storage, operating system, I/O and quantity — and RESUN Electronics Co., Ltd. will confirm the build and quote it.
Other Android Panel PC models
See all 5
- Face recognition temperature meansurement solution.
- 8 inch LCD Display
- Melexis Infrared Camera Temperature Measurement
7"- 7 inch IPS 10-Point Capactive Touch Screen, with
- 1280*800 resolution;
- NXP i.MX 6DualLite 800MHz,
7"- 7 inch Android Industrial Panel PC
- Powered by RK3288 Quad Core CPU
- Based on Android 7.1 OS
10.1"- 10.1″ 1920*1200 IPS Panel with Projective Capacitive Touch screen
- Dual-core Cortex-A72 + Quad-core Cortex-A53 CPU
- Android 7.1 or above OS
Frequently Asked Questions
Can this model be customised?
Yes. RESUN is an OEM/ODM manufacturer, so I/O, housing, mounting, touch technology, IP rating, RFID or NFC, camera and barcode reader can be changed to suit the application.
What is the lead time and minimum quantity?
Both depend on the configuration and the volume. Send your requirement to +86-1351-0185730 or through the contact page and the sales team will confirm.
Is a sample available before production?
Yes. The custom design route includes sample making and sample approval before mass production; for a standard configuration a sample unit can be quoted directly.
What warranty applies?
Two years from the date of purchase against manufacturing and material defects on computer and monitor hardware.
