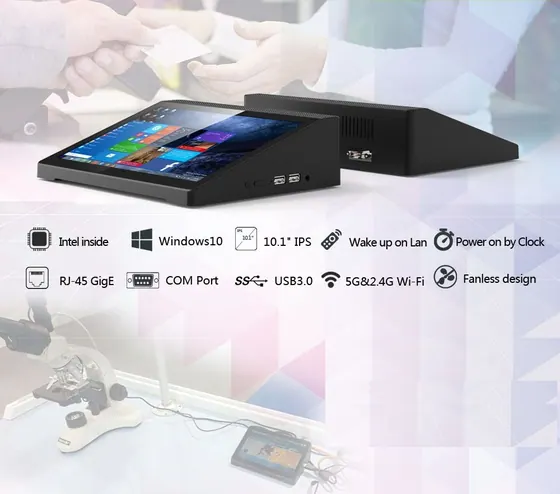

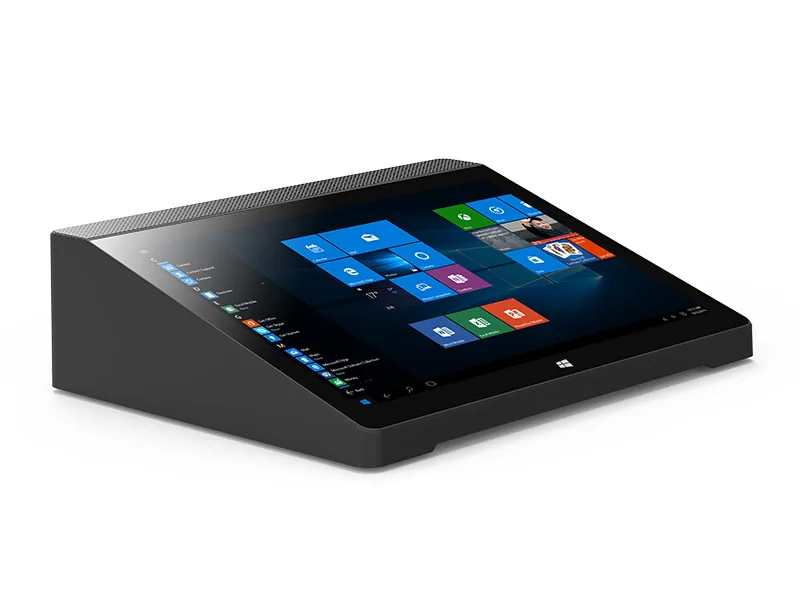

10.1 inch All-in-one Touch Screen PC
- Display：10.1 inch IPS HD Screen
- Resolution：1280*800
- OS：win10
- CPU：Intel Apollo Lake J3355, 2GHz ~ 2.50GHz
- RAM：4GB+ eMMc 64GB
Working with RESUN on this model
- Customised I/O, IP65 front bezel, 7H anti-scratch panel, open frame or flat screen housing.
- RFID, NFC, front camera and barcode reader can be integrated.
- Multiple CPU, memory, storage and operating system options.
- Two-year warranty on computer and monitor hardware.
The combination of Touch Screen Computer, Box PC, mini Computer
all-in-one panel pc
industrial panel pc
| LCD | Screen Size | 10.1 inch | ||||
| Screen Resolution | 1280×800 (IPS + 250ANSI) | |||||
| TP | Touch Module | G+G Multi-Touch | ||||
| Battery | Recharge Li-ion battery | Optional | ||||
| System Hardware Configuration: | ||||||
| Type | Details | Descriptions | ||||
| CPU | Type | Intel Apollo Lake J3355 | ||||
| Speed | 2GHz ~ 2.50GHz | |||||
| GPU | Type | Intel HD Graphics 500 | ||||
| Memory | Capacity | 4GB (LPDDR4) | ||||
| Storage | eMMC | 64GB | ||||
| SSD (M.2; 22×42mm) | Optional | |||||
| SATA 2.5“ HDD | Optional | |||||
| Speaker | Built-in | 8Ω/1W | ||||
| Micphone | Built-in | Optional | ||||
| G-sensor | Built-in | Yes | ||||
| Network Connections: | ||||||
| Type | Details | Descriptions | ||||
| WIFI | WIFI Module: Intel AC3165 | WIFI 802.11ac/b/g/n 5G&2.4G Dual-band | ||||
| Bluetooth | BT Module: Intel AC3165 | Bluetooth4.2 | ||||
| Ethernet Network | RJ-45 | 100/1000Mbps Gigabit Lan | ||||
| 4G LTE | M.2 4G module | Optional | ||||
| Interface Configuration: | ||||||
| Type | Details | Descriptions | ||||
| USB Interface | USB3.0 Host | ×2pcs | ||||
| USB2.0 Host | ×2pcs | |||||
| SD / TF Card reader | TF Card reader | ×1pc | ||||
| Audio Jack | 3.5mm headphone | ×1pc | ||||
| HDMI | HDMI 1.4 | ×1pc | ||||
| Video output through HDMI | Up to 4K | |||||
| COM Port | DB9 (RS232) | ×1pc | ||||
| Button Switch: | ||||||
| Type | Details | Descriptions | ||||
| Power | On/Off | ×1pc | ||||
| Volume | Down/UP | ×1pc | ||||
| CMOS Reset | Reset by Short Press | Optional | ||||
| Main Accessories: | ||||||
| Type | Details | Descriptions | ||||
| Power adapter | DC 12V/2A | ×1pc | ||||
| User’s Manual | User’s Manual | ×1pc | ||||
| Software Configuration: | ||||||
| Type | Details | Descriptions | ||||
| Power on Function | By Power Button or Auto Power on | Optional | ||||
| Wake up on Lan | Wake up on Lan by RJ45 | Support | ||||
| PXE | Preboot Execution Environment | Support | ||||
| Operating System | Windows 10 | Optional | ||||
| Linux | Test by end user | |||||
Ask about the EB-106GF
Send the configuration you need — CPU, memory, storage, operating system, I/O and quantity — and RESUN Electronics Co., Ltd. will confirm the build and quote it.
Other Embedded Computer models
See all 2
12.1"12.1 inch Open Frame Panel PC for Industrial Applications
Model EB-121OEM
- based on the Intel® Celeron® Processor J1900 2M Cache, up to 2.42 GHz
- Running Windows or Linux
- 12.1” resistive touchscreen
9.7"9.7 inch Rugged Industrial Tablet
- 9.7″ Waterproof IP64 Rated Panel PC – Rugged Industrial Tablet
- Waterproof. Shockproof. IP64 rating Sealed.
- Built with military grade components to withstand conditions that would cause a consumer grade tablet to fail
17"17 inch Fanless Industrial Panel PC
Model EB-17PC
- Aluminum front panel & PC Case
- 17″ TFT LCD panel display with touch screen
- Wireless LAN module (optional)
9.7"9.7 inch Fanless Industrial Flat Panel PCs
Model EB-97FCPC
- 9.7″ True-Flat Projective Capacitive Touch screen
- Aluminum Housing
- Powered by Intel Celeron CPU J1900 (2M Cache, up to 2.42 GHz)
18.5"18.5″ Fanless Touch Panel Computer with RFID Terminal
Model EB-19MTOEM
- 18.5 inch Fanless Touch Screen Panel PC with RFID Reader
- IP65 rated front bezel
- 18.5 inch 1366 * 768 LED backlight LCD monitor
Face Recognition and Temperature Measurement
Model EB-AZTFITS09
- Face recognition temperature meansurement solution.
- 8 inch LCD Display
- Melexis Infrared Camera Temperature Measurement
10.4"10.4 inch HDMI DVI VGA TFT LCD Touch Screen Monitor
Model EB-146NP
- 10.4 inch Foldable TFT LCD VGA Touch Screen Monitor
- with HDMI and DVI input
15"15 inch Open Frame All In One Panel PC
Model EB-35OP
- 15 inch Industrial Open Frame Panel PC
- Intel Celeron J1900 Quad Core
- Option for high brightness LCD panel
Frequently Asked Questions
Can this model be customised?
Yes. RESUN is an OEM/ODM manufacturer, so I/O, housing, mounting, touch technology, IP rating, RFID or NFC, camera and barcode reader can be changed to suit the application.
What is the lead time and minimum quantity?
Both depend on the configuration and the volume. Send your requirement to +86-1351-0185730 or through the contact page and the sales team will confirm.
Is a sample available before production?
Yes. The custom design route includes sample making and sample approval before mass production; for a standard configuration a sample unit can be quoted directly.
What warranty applies?
Two years from the date of purchase against manufacturing and material defects on computer and monitor hardware.
