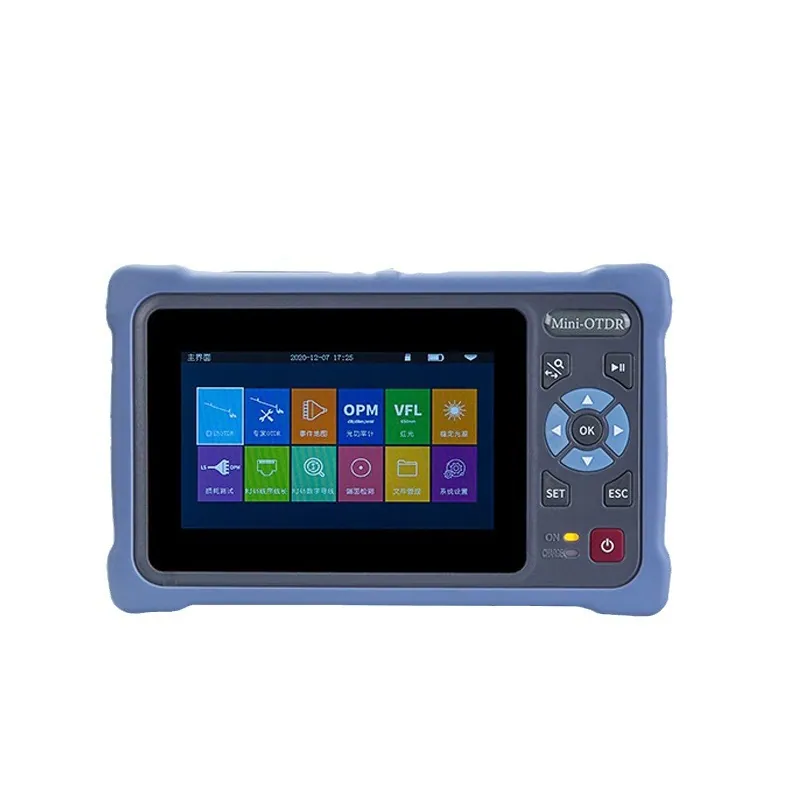

Handheld Machine Tester OTDR-NK6000
NK6000 multi-functional OTDR adopts 5.6 inch color screen, double operation of keys and touch. It integrates of OTDR, Visual Fault Location, Event Map, Optical Power Meter, Light Source, Optical Loss Test, Optical End Face Detection, multi-functions to help customers efficiently solve the field test and maintenance; Intelligent power management, 20 hours of super long standby, efficient guarantee of field test and maintenance. It is mainly used to measure the length, loss, connection quality and otherparameters of all kinds of optical fiber and cable. It can be widely used in engineering construction, emergency repair of communication system of optical fiber communication system, research and production measurement of optical fiber cable
- Brand
- Datolink
- Manufactured in
- Shenzhen, Guangdong, China
- Warranty
- 12 months
- OEM and ODM
- Accepted
Drawings and specifications can be sent by WhatsApp or to [email protected]. Replies within 12 to 24 hours on working days.
Function:
0.8m event blind area, easy to test 5m jumper
Support SM/MM/SM+MM test
Detection of online test, APD active protection
Standard SOR file output format
Unique automatic diagnosis function of test results
Multi wavelengths simultaneous test
Batch processing of data, printing report forms
Nomenclature in Chinese and English
Key + touch screen dual operation mode
Technical Parameter:
| Item | NK6000 | ||||||
| Type | SM | ||||||
| Wavelength | 1310/1550nm | ||||||
| Event Blind Zone | 0.8m | ||||||
| ATT Blind Zone | 6m | ||||||
| Test Range | 500m/1km/2km/4km/8km/16km/32km/64km/128km/256km | ||||||
| Pulse Width | 3ns/5ns/10ns/20ns/30ns/50ns/80ns/160ns/320ns/500ns/800ns/1μs/2μs/3μs/5μs/8μs/10μs | ||||||
| Ranging Accuracy | ±（0.75m+Sample interval+0.005％×Test distance） | ||||||
| Loss Accuracy | ±0.05dB/dB | ||||||
| Sample Points | 16k~256k | ||||||
| Sample Resolution | 0.05m~16m | ||||||
| Reflection Accuracy | ±3dB | ||||||
| File Format | SOR Standard File Format | ||||||
| Loss Analysis | 4 point method/5 point method | ||||||
| Laser Safety Level | Class II | ||||||
| Refresh Rate | 3Hz(Typ） | ||||||
| Data Storage | Internal storage:≤3000 curves；External storage:4G bit | ||||||
| Connector | FC/UPC(Interchangeable SC ST) | ||||||
| Data Interface | USB、Mini-USB、10m/100m Ethernet Port | ||||||
