Handheld Machine Tester OTDR-NK6200

OTDR

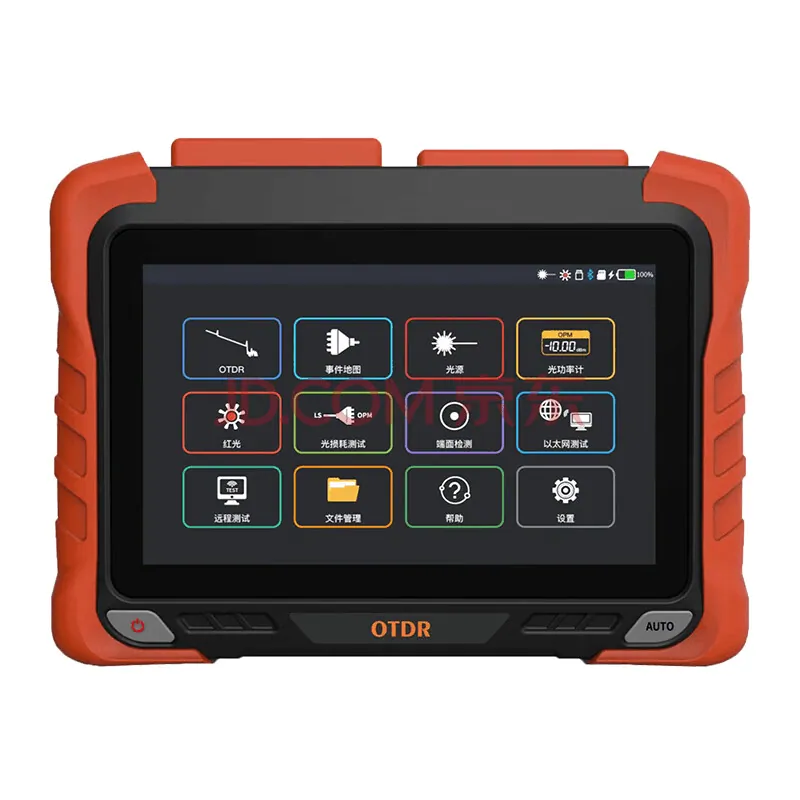

Handheld Machine Tester OTDR-NK6200

OTDR-NK6200 fiber tester adopts 4.3-inch capacitive touch screen. The OTDR tester integrates 12 functions, such as auto OTDR, expert OTDR, event map, OPM (optical power meter) , VFL(visual fault locator) , RJ45 cable tracker, and “computer level” file management to meet various test requirements in different occasions. OTDR has a maximum dynamic range of 26dB, 8G memory, and can store more than 200,000 curves; The OTDR fiber is equipped with 4000mAh high-density polymer lithium battery, intelligent power saving management, measuring time of more than 8 hours, and supporting power supply and charging of the power bank.

Brand
Datolink
Manufactured in
Shenzhen, Guangdong, China
Warranty
12 months
OEM and ODM
Accepted
Request A Quote Talk To An Engineer Request A Sample Email Us

Drawings and specifications can be sent by WhatsApp or to [email protected]. Replies within 12 to 24 hours on working days.

Fiber Optic Testers & Tools OTDR

Features:

0.5m Event Dead Zone

Online detection, effective APD active protection

Support fast charging protocol and power bank

Ethernet test, supporting Ethernet Remote Test

Support SM/MM/SM+MM test

PON network online test

Maximum dynamic range 45dB

Mobile APP wireless operation

Integrate OTDR/VFL/LS/0PM/Event Map/End Detection/Optical Loss Test/Ethernet test/Remote test/File management

Technical Parameter:

Model NK-6200
Wavelength 1310±20nm
Fiber Type G.652
Dynamic Range 26dB
Event Bind Zone 2.5m
ATT Bind Zone 8m
Test Range 500m/1km/2km/4km/8km/16km/32km/64km/100km
Pulse Width 3ns~20us
Ranging accuracy ±(1m+ Sampling interval +0.005%×Test distance)
Loss accuracy ±0.05dB/dB
Sampling Points 16k~128k
Sampling resolution 0.05m~8m
Reflection accuracy ±3dB
Data Storage 8G,≥200,000 curves
Laser Safety Level Class 2
File format SOR Standard file format
Connector FC/UPC(Interchangeable SC,ST)

Certification

CE, RoHS and Anatel obtained for most products, under an ISO 9001 quality management system.

Inspection

IQC on incoming materials, IPQC in process and OQC before shipment, with a pre-production sample before mass production.

Export

Exported to over 80 countries. Delivery on FOB, CFR, CIF, EXW or FCA terms.
