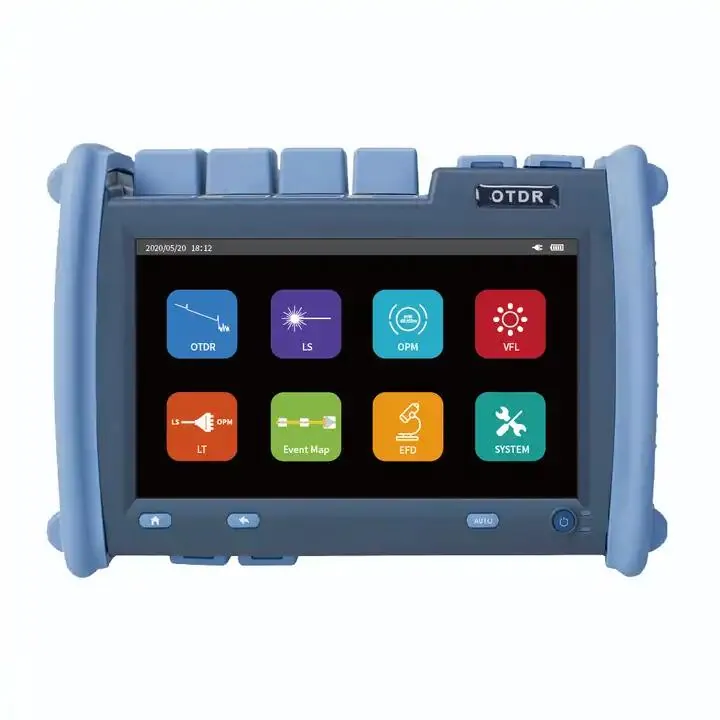

Handheld Machine Tester OTDR-NK6800
NK-6800 series high-performance OTDR adopts 7-inchcolor screen，which makes the operation easier. ltintegrates 7 functions to help customers solve the com-munication link field test and later maintenance moreeffectively. The maximum dynamic range is 45dB.It canbe penetrated through the light splitter to effectivelyimprove the performance in PON network test.NK6800 series are mainly used to measure the length,loss and connection quality of optical fiber and cable. Ilt iswidely used in engineering construction,ine maintenance test emergency repair, development and produc-tion measurement of optical fiber and optical cable. lt ismainly used in urban trunk line, backbone network andmetropolitan area network.
- Brand
- Datolink
- Manufactured in
- Shenzhen, Guangdong, China
- Warranty
- 12 months
- OEM and ODM
- Accepted
Drawings and specifications can be sent by WhatsApp or to [email protected]. Replies within 12 to 24 hours on working days.
Features：
0.8m event blind area, easy to test 5m jumper
Detection of online test, automatic alarm with lightBatch processing of data, printing report forms
Nomenclature in Chinese and English
Support SM/MM/SM+MM test
Standard SOR file output format
Multi wavelengths simultaneous test
Key + touch screen dual operation mode
Integrate OTDR/VFL/LS/OPM/Event Map/Loss Test/End Face Identifier
| Model | NK6800 | ||||||
| Type | G.652SM | ||||||
| Wavelength | 1310/1500nm | ||||||
| Dynamic Range | 26dB/24dB | ||||||
| Event Blind Zone | 1m | ||||||
| ATT Blind Zone | 6m | ||||||
| Test Range | 500m/1km/2km/4km/8km/16km/32km/64km/64km/128km/256km | ||||||
| Pulse Width | 3ns/5ns/10ns/20ns/30ns/50ns/80ns/160ns/320ns/500ns/800ns/1μs/2μs/3μs/5μs/8μs/10μs | ||||||
| Ranging Accuracy | ±（1m+Sample interval+0.005％×Test distance） | ||||||
| Linearity | ≤0.05dB | ||||||
| Sample Points | 16k-256k | ||||||
| Sample Resolution | 0.05m~16m | ||||||
| Loss Resolutin | 0.001dB | ||||||
| Loss Threshold | 0.20dB | ||||||
| Range Resolution | 0.001m | ||||||
| Reflection Accuracy | ±3dB | ||||||
| File Format | SOR Standard File Format | ||||||
| Loss Analysis | 4 point method/5 point method | ||||||
| Laser Safety Level | Class II | ||||||
| Connector | FC/UPC(Interchangeable SC ST) | ||||||
Certification
CE, RoHS and Anatel obtained for most products, under an ISO 9001 quality management system.
Inspection
IQC on incoming materials, IPQC in process and OQC before shipment, with a pre-production sample before mass production.
Export
Exported to over 80 countries. Delivery on FOB, CFR, CIF, EXW or FCA terms.
