36W R10 LED WORK LAMP
The 36W R10 LED WORK LAMP is a 36W LED lamp from the Dantech LED Work Lights range, supplied with a flood and spot beam and rated IP68.
- 36W
- 3,240 lm
- IP68
- 9-32V DC
- ECE R10
- CE
- RoHS
What This Lamp Is Built to Do
It runs on 9-32V DC, produces 3,240 lm of effective output and is listed with ECE R10, CE, RoHS.
Compact flood and spot work lamps for machines that have to keep running after dark.
Key Benefits
- 3,240 lm of effective output from a 36W draw, so the figure on the sheet is what reaches the work area rather than what the bare LED chips produce
- Sealed to IP68, which keeps field dust and wash-down water out of the driver compartment
- A 9-32V DC input window means the same part number covers more than one machine voltage in your fleet
- Listed with ECE R10, CE, RoHS, so the paperwork is ready when the shipment is inspected
- Available with a flood and spot beam, matched to the working distance rather than to a wattage figure

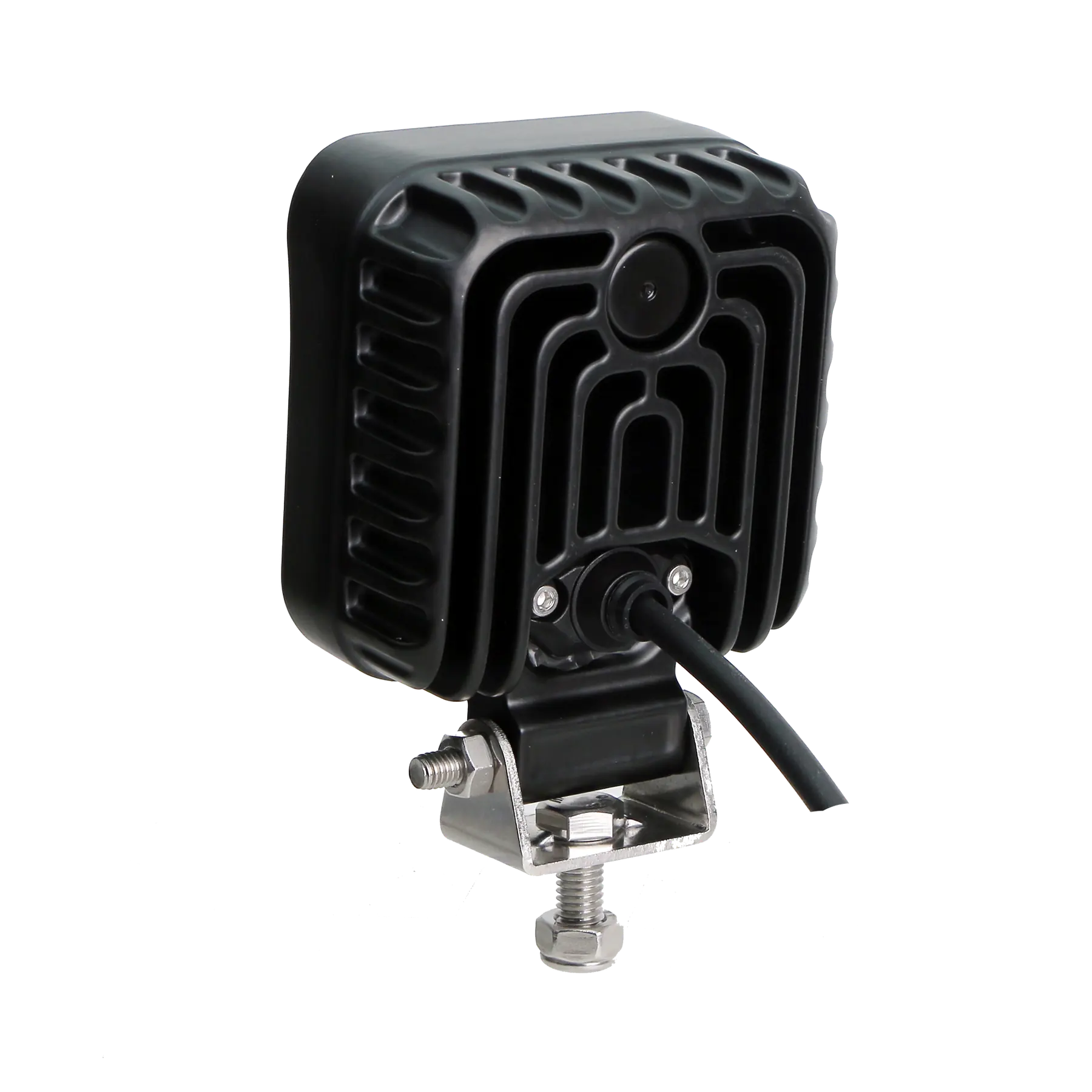

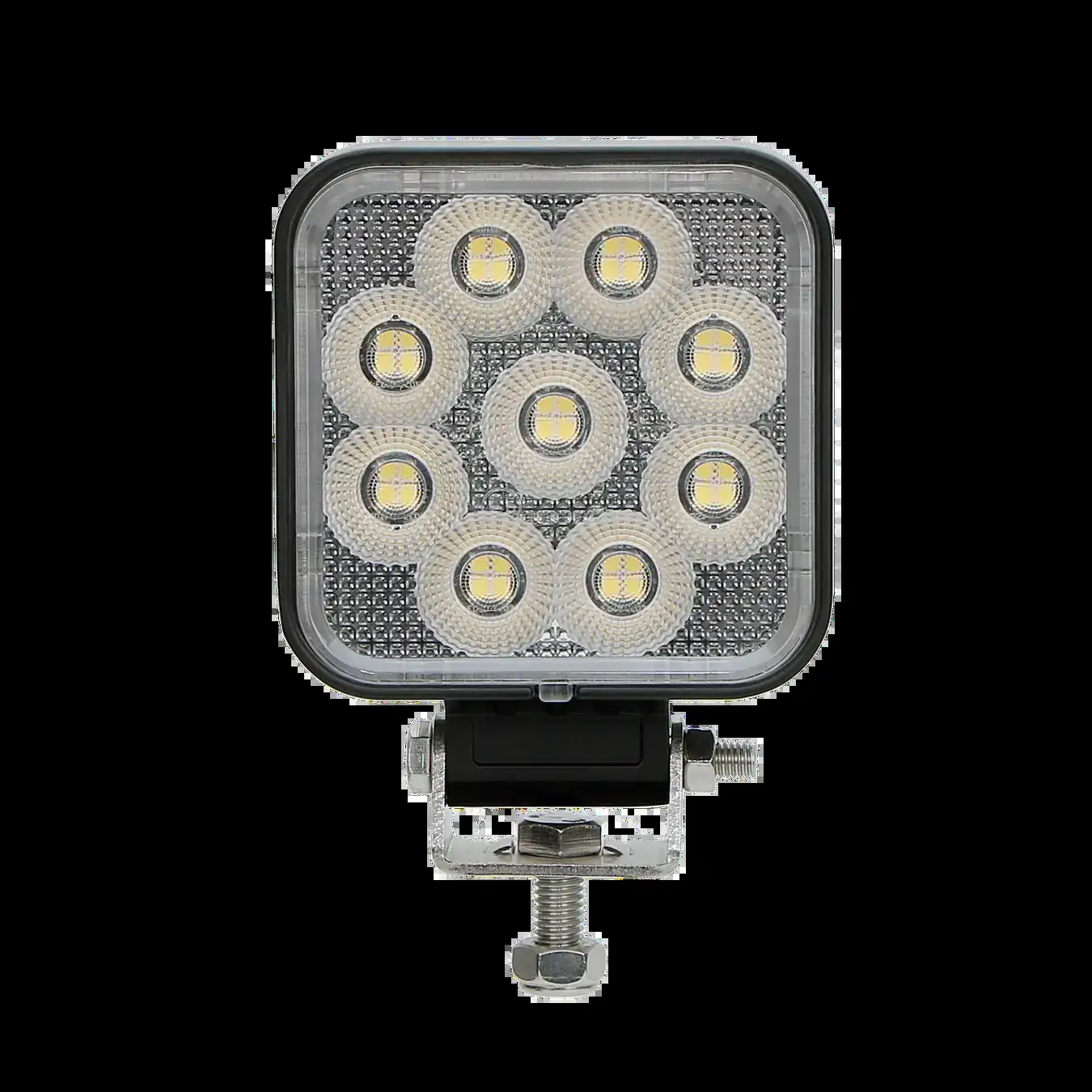

Photography of the 36W R10 LED WORK LAMP supplied by the factory.
Application Scenarios
- Rear deck and boom lighting on excavators and wheel loaders
- Side and reverse lighting on tippers and refuse bodies
- Task lighting on service and recovery vehicles
- Cab-top rows on tractors and telehandlers
Who It Is For
- Machinery OEMs specifying original-fit lamps
- Aftermarket distributors stocking 12V and 24V ranges
- Fleet workshops replacing halogen work lamps
- Body builders fitting tippers, cranes and service vehicles
Why Buyers Replace the Lamp That Is Already Fitted
Operators lose accuracy and slow down when the task area is lit by worn halogen lamps. Replacement cycles on vibrating machines are the second cost, and a lamp that fails mid-shift stops the machine.
Water and dust entering the housing after a season in the field. This model is sealed to IP68.
Auxiliary lighting that disturbs cab electronics. This model is listed with ECE R10.
Halogen lamps in this position draw current the machine cannot spare. This lamp draws 36W.
Construction
- UV-stable polyester powder coated housing that resists chalking after long outdoor exposure
- Die-cast aluminium housing that carries LED junction heat away from the board
- Impact resistant polycarbonate lens instead of glass, so stone strike does not shatter it
- Over-voltage protection on the driver stage
- Over-temperature protection that throttles drive current before the LEDs degrade
Materials
Die-cast aluminium housing with a UV stable polyester powder coat, and a polycarbonate lens rather than glass. The housing is the heat sink, which is why the material matters as much as the LED specification.
Specifications
Taken from the specification sheet for this model. Where a value is not published for this model it is left out rather than estimated.
| Model No | DT-0806-3-36 |
|---|---|
| Power | 36W |
| Raw Lumens | 3,600 LM |
| Effective Lumens | 3,240LM |
| Operating Voltage | 9 - 32V DC |
| Operating Temperature | 40 deg~+85 deg C |
| Colour Temperature | 6000k |
| Beam Pattern | flood/spot |
| Rated Lifespan | 50,000 hours lifespan |
| Ingress Protection | IP68 |
| Certificates | R10, CE,ROHS |
How the Lamp Is Made and What Is Checked
Die casting of
Die casting of the aluminium housing
SMT assembly and
SMT assembly and reflow of the LED board
Optic and lens
Optic and lens fitting with sealed bonding
Potting, sealing and
Potting, sealing and connector fitting
Electrical test, beam
Electrical test, beam check and packing
Quality Control
- Incoming inspection of LEDs, drivers and housings
- In-line electrical test after board assembly
- Sealing check before the lamp leaves the line
- Final beam and function check on every unit
- Quality system certified to ISO 9001:2015 and IATF 16949
Certification
This model is recorded with ECE R10, CE, RoHS.
At factory level the company states certification under the ISO 9001:2015 and IATF 16949 quality management systems, together with TUV certification.
Customisation Options
- Beam pattern selection where the model offers more than one option
- Cable length, connector type and harness termination
- Housing and lens marking for private label programmes
- Carton print and retail packaging artwork
- Mounting bracket variations on request
Use Guide
- Check the machine system voltage against the operating voltage line before wiring
- Fuse the lamp circuit at the supply and switch multiple lamps through a relay
- Mount so the housing can shed heat and is not packed hard against a panel
- Route the cable so it hangs below the gland rather than feeding water in
- Aim the beam at the working distance, then lock the bracket
How This Compares With the Alternatives
| Halogen lamp of similar output | Draws 36W where a halogen of comparable usable output draws considerably more, and is rated at 50,000 hours lifespan |
|---|---|
| Unbranded LED lamp with no approval line | Carries ECE R10, CE, RoHS, so it can be shipped and inspected without argument |
| Plastic bodied work lamp | Die-cast aluminium housing carries LED heat away instead of trapping it, which is what determines service life |
