13Inch 12v 24v 60w Led Scene Light RV Caravan Boat Marine Trucks Interior Exterior IP67
The 13Inch 12v 24v 60w Led Scene Light RV Caravan Boat Marine Trucks Interior Exterior IP67 is a 13 inch 60W LED lamp from the Dantech LED Scene and Interior Lights range, supplied with a flood beam and rated IP67.
- 60W
- 4,800 lm
- IP67
- 9-32V DC
- ECE R10
- CE
- RoHS
What This Lamp Is Built to Do
It runs on 9-32V DC, produces 4,800 lm of effective output and is listed with ECE R10, CE, RoHS.
Long, low-glare bars and ceiling lamps for cargo areas, caravans, boats and crew cabs.
Key Benefits
- 4,800 lm of effective output from a 60W draw, so the figure on the sheet is what reaches the work area rather than what the bare LED chips produce
- Sealed to IP67, which keeps field dust and wash-down water out of the driver compartment
- A 9-32V DC input window means the same part number covers more than one machine voltage in your fleet
- Listed with ECE R10, CE, RoHS, so the paperwork is ready when the shipment is inspected
- Available with a flood beam, matched to the working distance rather than to a wattage figure

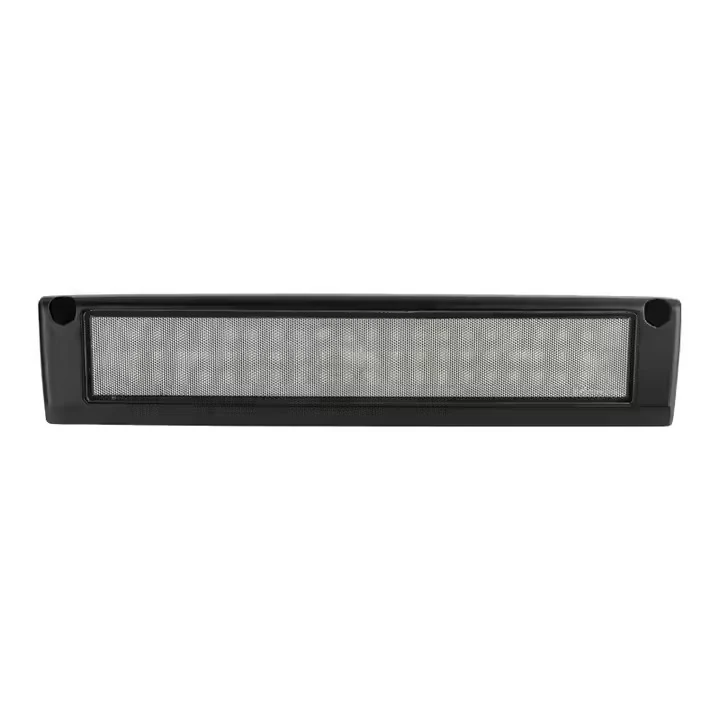

Photography of the 13Inch 12v 24v 60w Led Scene Light RV Caravan Boat Marine Trucks Interior Exterior IP67 supplied by the factory.
Application Scenarios
- Awning and side scene lighting on caravans and campers
- Cargo area lighting in box bodies and service vans
- Deck and cockpit lighting on small craft
- Ceiling lighting in crew cabs and site cabins
Who It Is For
- RV, caravan and camper builders
- Boat and marine outfitters
- Van and box body converters
- Distributors serving the leisure vehicle trade
Why Buyers Replace the Lamp That Is Already Fitted
Interior and scene lighting fails on two points: glare in a confined space, and corrosion where the lamp is washed down or exposed to salt air.
Water and dust entering the housing after a season in the field. This model is sealed to IP67.
Auxiliary lighting that disturbs cab electronics. This model is listed with ECE R10.
Halogen lamps in this position draw current the machine cannot spare. This lamp draws 60W.
Construction

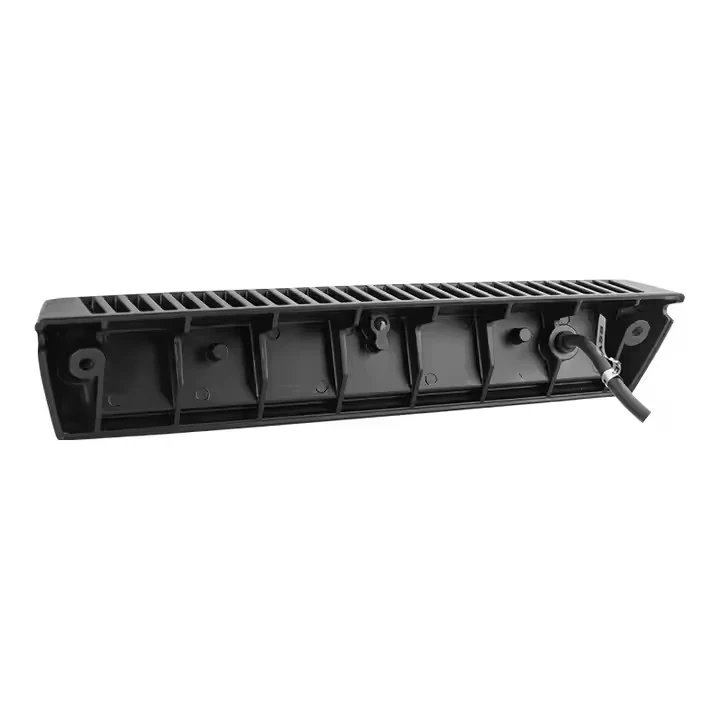

- Die-cast aluminium housing that doubles as the heat sink
- Polycarbonate lens rather than glass, for stone strike resistance
Materials
Die-cast aluminium housing with a UV stable polyester powder coat, and a polycarbonate lens rather than glass. The housing is the heat sink, which is why the material matters as much as the LED specification.
Specifications
Taken from the specification sheet for this model. Where a value is not published for this model it is left out rather than estimated.
| Model No | DT-13X-60 |
|---|---|
| Power | 60W(Osram 2835 led) |
| Raw Lumens | 6,000 LM |
| Effective Lumens | 4,800LM |
| Operating Voltage | 9 - 32V DC |
| Operating Temperature | 40 deg~+85 deg C |
| Colour Temperature | 6000k |
| Beam Pattern | flood |
| Rated Lifespan | 50,000 hours lifespan Surface mounting - 45 degree titl |
| Ingress Protection | IP67 |
| Certificates | R10, CE,ROHS |
How the Lamp Is Made and What Is Checked
Die casting of
Die casting of the aluminium housing
SMT assembly and
SMT assembly and reflow of the LED board
Optic and lens
Optic and lens fitting with sealed bonding
Potting, sealing and
Potting, sealing and connector fitting
Electrical test, beam
Electrical test, beam check and packing
Quality Control
- Incoming inspection of LEDs, drivers and housings
- In-line electrical test after board assembly
- Sealing check before the lamp leaves the line
- Final beam and function check on every unit
- Quality system certified to ISO 9001:2015 and IATF 16949
Certification
This model is recorded with ECE R10, CE, RoHS.
At factory level the company states certification under the ISO 9001:2015 and IATF 16949 quality management systems, together with TUV certification.
Customisation Options
- Beam pattern selection where the model offers more than one option
- Cable length, connector type and harness termination
- Housing and lens marking for private label programmes
- Carton print and retail packaging artwork
- Mounting bracket variations on request
Use Guide
- Check the machine system voltage against the operating voltage line before wiring
- Fuse the lamp circuit at the supply and switch multiple lamps through a relay
- Mount so the housing can shed heat and is not packed hard against a panel
- Route the cable so it hangs below the gland rather than feeding water in
- Aim the beam at the working distance, then lock the bracket
How This Compares With the Alternatives
| Halogen lamp of similar output | Draws 60W where a halogen of comparable usable output draws considerably more, and is rated at 50,000 hours lifespan Surface mounting - 45 degree titl |
|---|---|
| Unbranded LED lamp with no approval line | Carries ECE R10, CE, RoHS, so it can be shipped and inspected without argument |
| Plastic bodied work lamp | Die-cast aluminium housing carries LED heat away instead of trapping it, which is what determines service life |
Other Models in the Scene and Interior Range
15inch Led Rv Trailer Led Light Outdoor Light Atmosphere Lamp Led Scene Light Waterproof White 45 Degrees
46W · 3,680 lm · IP68
View specification →
10 Inch 40W LED Scene Light for RV Trailer Camper 10" LED Lamp ECE R10
40W · 3,200 lm · IP68
View specification →
12Inch 46w High Output 9-32V Led Scene Light Waterproof Rv Lights Trailer Led Light R10 45degrees
32W · 2,560 lm · IP68
View specification →
5.5 Inch 26W 2080LM 6000K Car LED Lights Interior Van Truck Light IP67
26W · 2,080 lm · IP67
View specification →Sectors That Use This Lamp
Questions About This Model
What supply voltage does the 13Inch 12v 24v 60w Led Scene Light RV Caravan Bo need?
Is the lumen figure raw or effective output?
Which approvals does this model carry?
Can this lamp be washed down?
Can this model be supplied under our own brand?
What is the lead time and the warranty period?
Request Pricing on the 13Inch 12v 24v 60w Led Scene Light RV Caravan Boat Marine Tr
Send the quantity and the mounting position and we come back with a price, the lead time and the certificate references held for this model.
