Chain Alignment Tool
Rear sprocket mounted gauge for checking chain and sprocket alignment
- Type · Chain and sprocket alignment gauge
- Mounting · Rear sprocket
- Body · Machined alloy
- Use · Motorcycle chain drive alignment
Every enquiry goes straight to a person on WhatsApp or email. There is no form on this site.
Collection · Chain Alignment Tools
Group · Motorcycle Repair Tools
Photographs · 3 manufacturer images of this pattern
Product Overview
What This Product Is

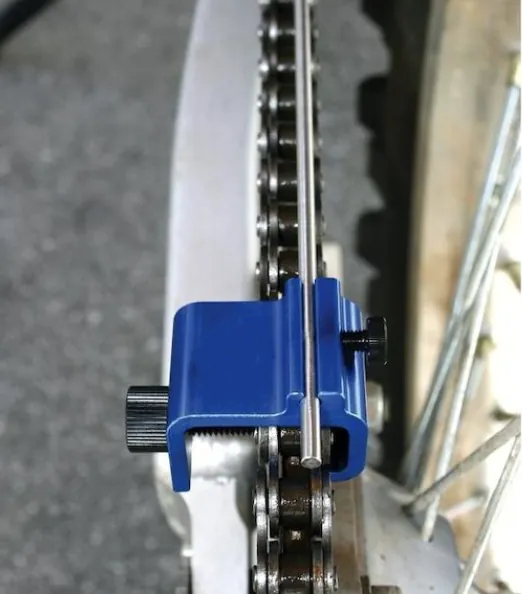

Chain Alignment Tool is the Chain Alignment Tools pattern published by Creease. A chain alignment tool mounts on the rear sprocket and projects a reference line forward, so a mechanic can see whether the front and rear sprockets are in the same plane. Misalignment is the most common reason a chain and sprocket set wears out early.
Key Benefits
Why Buyers Choose It
- Mounts to the rear sprocket
- Projects a reference line to the front sprocket

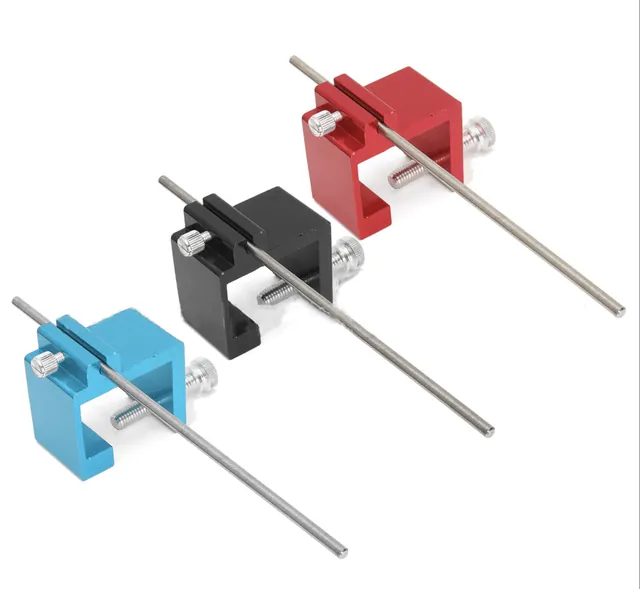

- Machined body in several colours
- Compact enough for a mobile tool roll
Who It Is For
- Motorcycle workshops and race teams
- Rental and delivery fleets on a chain replacement cycle
- Tool retailers and dealer parts counters
- Mobile mechanics
Problems It Solves
- Chains and sprockets wearing out well before their expected life
- Adjuster marks on the swingarm that do not match reality
- Aligning by eye and getting it wrong
Application Scenarios
- Motorcycle Dealers And Workshops — Service tools, replacement parts and handover accessories from one contact
Specifications And Materials
Technical Data
Published figures for this collection. Where the manufacturer does not state a value we mark it to be confirmed instead of estimating it.
- Type
- Chain and sprocket alignment gauge
- Mounting
- Rear sprocket
- Body
- Machined alloy
- Use
- Motorcycle chain drive alignment
Customization Options
What We Can Change
- Colour
- Retail or bulk packaging
- Logo marking
Use Guide
Before You Order
A short checklist that removes most of the back and forth on this collection.
Talk To An Engineer1
Confirm the pattern
Send the product name from this page so we quote the same pattern you are looking at.
2
Check the published data
Fitment lists, sizes and dimensions on this page come from the manufacturer. Compare them against your requirement first.
3
Agree the variables
Colour, size, marking and packing are the things that change price. Decide them before quoting.
4
Sample before volume
Approve a physical sample in writing. It becomes the reference for every reorder.
5
Confirm documentation
If your market needs certificates or labelling, raise it at quotation stage rather than at shipment.
FAQ
Chain Alignment Tool FAQ
Is it better than the swingarm marks?
Yes. Swingarm marks are stamped during production and are often not accurate. An alignment gauge measures the actual sprocket plane.
Does it fit any sprocket size?
Send us the sprocket range you need to cover and we will confirm the pattern.
Do I still need to set chain slack?
Yes. Alignment and slack are two separate adjustments and both matter.
