Excavators

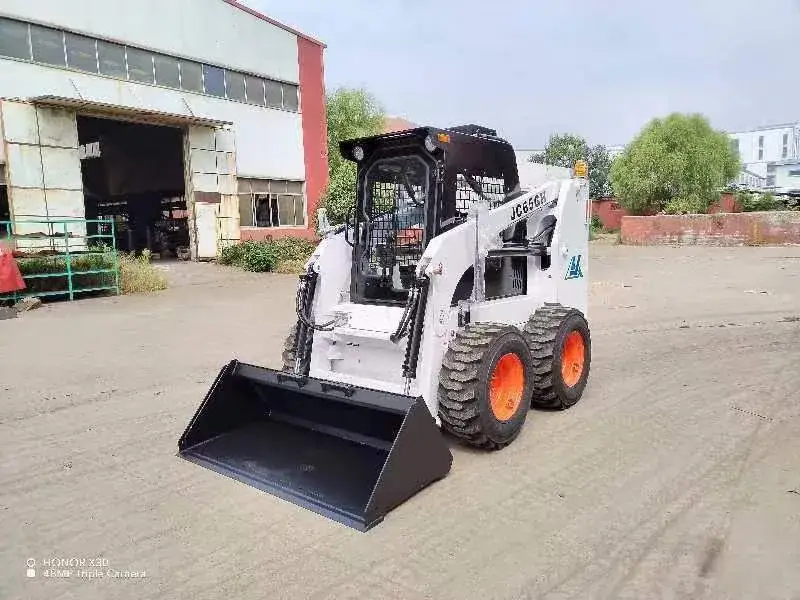

Wheel Type Skid Steer Loader JC60G
A wheel-type skid steer loader model JC60G with a XINCHAI498 inline four-cylinder water-cooled diesel engine rated at 45kW and 2500rpm, delivering 850kg of rated operating capacity. The unit has a 3200kg operating weight, 12-16.5 tyres, and a 0.5m3 bucket capacity. It features a mechanical hand control system, open-type operator cab, and a maximum digging height of 4000mm. It is designed for tight-space construction, material handling, and site preparation where compact size and high maneuverability are required.
- Condition New
- Warranty 1Year
- Dimension 6000X2160X2873mm
- Certification CEISO
- Engine XINCHAI
Stock number held for this listing: 11535
Key Benefits
What This Unit Does Well
- XINCHAI498 engine is widely available in China, so filters, fuel pumps and injectors can be sourced locally without long lead times
- Mechanical hand control system is simple, robust and requires no hydraulic or electronic maintenance
- 3200kg operating weight allows stable performance on uneven ground without tipping
- 0.5m3 bucket capacity is ideal for handling soil, gravel and light aggregate in confined areas
- 12-16.5 tyres provide good traction on soft ground and paved surfaces with minimal ground pressure
- Open-type cab allows full visibility and easy access for maintenance and attachment changes
Application Scenarios
Where It Is Used
- Material handling in a tight warehouse or yard with limited turning radius
- Site preparation and grading in urban construction zones with narrow access roads
- Loading and unloading bulk materials at a gravel pit or aggregate stockpile
- Clearing debris and rubble from a construction site with limited space for larger machines
Fit
Who It Is For
- Contractors operating in confined urban or industrial sites where space is limited
- Machinery dealers stocking compact loaders for resale in Southeast Asia and Africa
- Fleet managers replacing older skid steer loaders with a model that shares parts with other XINCHAI-powered equipment
- Logistics operators needing a loader for container yard operations with frequent repositioning
Buyer Pain
Problems It Solves
- Fleets with multiple loader models where each requires different hydraulic hoses, control levers and attachment couplers
- Downtime caused by electronic control systems that fail in dusty or humid environments
- High operating costs from machines that are too large for small jobs and consume more fuel than needed
- Lack of spare parts availability when a machine breaks down in a remote location
Engineering
Technical Features
- XINCHAI498 inline four-cylinder water-cooled 4-stroke diesel engine with direct injection
- Mechanical hand control system with no electronic sensors or hydraulic valves
- Open-type operator cab with standard seat and steering wheel
- 0.5m3 bucket capacity with 40° dump angle and 2400mm dumping height
- Maximum digging height of 4000mm and maximum digging depth of 3100mm
- 12-16.5 tyres on steel rims with 1500mm track width and 991mm wheelbase
- Hydraulic pump flow of 75L/min and 80L fuel tank capacity
- Maximum travel speed of 12km/h with 4x4 wheel drive
Specification
Specification Table for This Listing
Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.
| Condition | New |
|---|---|
| Warranty | 1Year |
| Dimension | 6000X2160X2873mm |
| Certification | CEISO |
| Engine | XINCHAI |
| Model | JC60G |
| Type | Wheel-type skid steer loader |
| Engine Model | XINCHAI498 |
| Engine Power | 45 kW at 2500 rpm |
| Rated Operating Capacity | 850 kg |
| Tipping Load | 1700 kg |
| Bucket Capacity | 0.5 m3 |
| Operating Weight | 3200 kg |
| Maximum Digging Height | 4000 mm |
| Maximum Digging Depth | 3100 mm |
| Maximum Reach | 750 mm |
| Dumping Height | 2400 mm |
| Wheelbase | 991 mm |
| Track Width | 1500 mm |
| Ground Clearance | 200 mm |
| Tire Size | 12-16.5 |
| Hydraulic Pump Flow | 75 L/min |
| Fuel Tank Capacity | 80 L |
| Maximum Travel Speed | 12 km/h |
| Drive Type | 4x4 wheel drive |
| Cab Type | Open-type operator cab |
Materials
Materials and Build
- Welded steel frame with high-strength steel components in the loader arms and chassis
- Cast iron engine block and cylinder head for the XINCHAI498 engine
- Steel rims with 12-16.5 radial tyres
- Open-type cab made from sheet steel with factory paint finish
- Mechanical control levers and linkages made from hardened steel
Process
How an Order Is Handled
- You send the site conditions, material type and typical job cycle you will use the loader for
- We confirm the available stock or build-to-order schedule based on current plant production
- You review the final specification sheet, including cab type, tyre size and attachment options
- We prepare the unit, photograph and video record the engine start, hydraulic function and controls
- We book container shipment and issue the export documents required for customs clearance
Quality Control
Checks Before Loading
- Engine serial number and chassis number are photographed and matched to the specification sheet
- Hydraulic pump, bucket movement and steering are tested and recorded on video before loading
- All control linkages and fasteners are checked for wear and correct torque before shipment
- Loading and lashing photos are sent before the container departs from the port
Customisation
What Can Be Changed
- Full enclosed cab with air conditioning and heater
- Hydraulic joystick controls instead of mechanical hand levers
- Optional attachments: backhoe, breaker, angle blade, auger, sweeper, pallet fork
- Different tyre size or spare wheel count
- Additional fuel tank or tool box installation
Honest Comparison
How It Compares With the Alternatives
| Track-type skid steer loader | The wheel-type model has better on-road speed and lower ground pressure but less traction on soft or muddy terrain |
|---|---|
| Higher power 60kW model | 45kW is sufficient for light to medium tasks and reduces fuel consumption and maintenance cost |
| Electronic control system | Mechanical controls are simpler, more reliable in dust and moisture, and easier to repair on-site |
Use Guide
Using It Well
- Replace fuel and oil filters at the interval recommended for XINCHAI498 engines, not on a fixed calendar schedule
Photographs
More Views of This Unit
Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.
Source Specification
Manufacturer Text We Hold for This Listing
Wheel type skid steer loader JC60G Skid skid steer loader Wheel type skid steer loader JC60G Rated load(kg):850kg Rated power(kw):45kw Operation weight(kg):2800kg Total length(mm):3490mm Total width(mm):1880mm Total height(mm):2160mm Specifications Rated operating capacity(kg) 850 Tipping load(kg) 1700 Bucket capacity(m 3 ) 0.5 Operationg weight(kg) 3200 Max. travel speed(km/h) 12 Hydraulic pump flow(L/min) 75 Fuel tank capacity(L) 80 Tires 12-16.5 Overall dimensions(mm) 3490x1880x2160 Dimensions Height at maximum extension(mm) 4000 Height to bucket hinge pin(mm) 3100 Width with bucket(mm) 1880 Track width(mm) 1500 Wheelbase(mm) 991 Ground clearance(mm) 200 Dump angle 40° Dumping height(mm) 2400 Maximum reach(mm) 750 Engine Maker/Model 498 XINCHAI498 Net power 45KW/2500rpm Type 4 Cylinder in-line, Water cooled, 4 stroke, Diesel engine Displacement(L) 3.168 Standard Open-type operator cab
Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.
Related Listings
Other Excavators Buyers Compare With This
Excavators
Promotion This Month 1-3 Ton Garden Small Used Mini Excavator for Sale by Owne
- ConditionNew
- Warranty1Year
- Wheelbase1130mm
Excavators
China Wheel Excavator Machine 7.5 Ton New Excavator Price
- ConditionNew
- Warranty1Year
- Dimension6000X2160X2873mm
Excavators
Brand New SY365 Good Hydraulic Excavator
- ConditionNew
- CertificationCEISO
- Model NumberX80-E
Excavators
New China Excavator X9 Wheeled Crawler Excavator 9 Ton Digger
- ConditionNew
- Warranty1Year
- CertificationCEISO

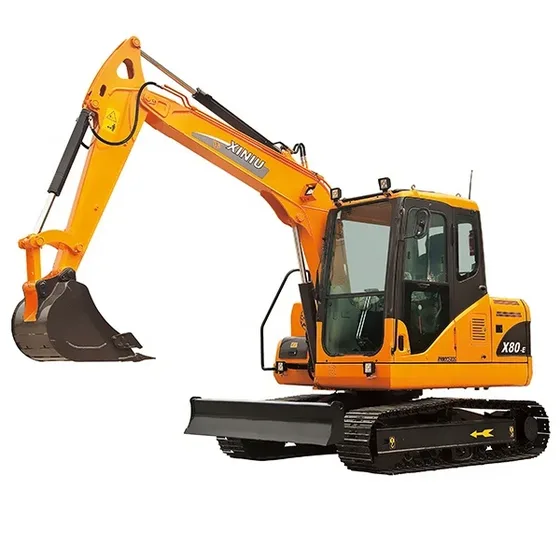

Excavators
Mining Excavator with Japanese Engine Mining Digger for Sale
- ConditionNew
- Warranty1Year
- CertificationCEISO
Buyer Questions
Questions About This Unit
Is this unit new or used
All units are new. We supply only new machines with full factory warranty and documented service history.
What is the lead time
Units in stock can be loaded within 10 days. Build-to-order units depend on the plant schedule, and we confirm a delivery date in writing with the proforma invoice.
Can you supply spare parts for this loader later
Yes. XINCHAI498 engine parts, hydraulic hoses, control linkages and bucket components are available and can be shipped separately or with the machine.
Do you ship by container or RoRo
The JC60G is shipped by container. It fits in a standard 20ft container with the machine secured by wire ropes.
What documents do I get for customs
Commercial invoice, packing list, bill of lading, certificate of origin, and CE ISO certification are included. Additional inspection certificates can be arranged.
Price This Unit Against Your Port
Send the destination and quantity. A written specification, landed cost and shipping option comes back.
