Electric Cars and Light EVs

4-seat, 2-door,electric Car 48v/4kw/45km/h, EEC L6e

A 4-seat, 2-door electric hatchback with a 48V/4kW DC motor, designed to meet EEC L6e classification for low-speed urban mobility. It features rear-wheel drive, a 12V DC electrical system, and a 48V 20A charger with 8 x 6V 200AH lead-acid gel batteries, providing a 120-150km range on a single charge. The unibody chassis uses a McPherson front suspension and double vertical drag rear suspension, with power steering and 155/65R13 tyres. It is built for short-distance urban transport and last-mile delivery in markets where low-speed electric vehicles are permitted.

Condition New
Month 1
Type HATCHBACK
Steering Left
Year 2014

Ask for a Price on WhatsApp Email the Specification

Stock number held for this listing: 11510

Front three-quarter view of a 4-seat electric hatchback with 155/65R13 tyres and white body

Key Benefits

What This Unit Does Well

48V 4kW DC motor meets EEC L6e regulations for low-speed urban use without requiring a driver's licence
8 x 6V 200AH gel batteries offer 800 recharge cycles and 280kg of battery weight for stable power delivery
120-150km range on a full charge supports daily urban delivery and short commutes
155/65R13 tyres and 150mm ground clearance handle uneven city roads and minor obstacles
Power steering and pedal speed control improve handling in tight urban environments
Hand brake on rear wheels ensures safe parking on inclines

Application Scenarios

Where It Is Used

Last-mile delivery of goods in city centres where high-speed vehicles are restricted
Internal transport within industrial zones, campuses or gated communities
Short-distance personal transport in towns with low-speed vehicle zones
Delivery of small packages or food in areas with narrow roads and low speed limits

Fit

Who It Is For

Urban logistics operators needing low-cost, low-maintenance delivery vehicles
Campus or industrial park transport teams managing internal vehicle fleets
Government or municipal departments procuring compliant low-speed electric vehicles
Distributors stocking small electric vehicles for resale in Southeast Asia, Africa and South America

Buyer Pain

Problems It Solves

High licensing and insurance costs for standard cars in low-speed urban zones
Lack of suitable vehicles that meet EEC L6e classification for unlicensed operation
High operating cost and maintenance of petrol-powered small vehicles in dense urban areas
Inconsistent battery performance and short lifespan in low-cost electric vehicles

Engineering

Technical Features

Unibody metal chassis with front McPherson independent suspension and rear double vertical drag non-independent suspension
4kW DC motor with 48V electric system and 12V DC auxiliary system
48V 20A charger with 8 x 6V 200AH lead-acid free maintenance gel batteries
Rear-wheel drive with power steering and pedal speed control
Front disc and rear drum braking system with hand brake on rear wheels
155/65R13 tyres on 13" wheel hubs with 150mm ground clearance when fully loaded

Specification

Specification Table for This Listing

Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.

Specification of 4-seat, 2-door,electric Car 48v/4kw/45km/h, EEC L6e
Condition	New
Month	1
Type	HATCHBACK
Steering	Left
Year	2014
Fuel	ELECTRIC
Model	eOne-L03L
Drive	RWD
Seats	4
Doors	2
Motor	4kW DC
Voltage	48V
Battery Type	Lead-acid free maintenance gel
Battery Capacity	6V200AH8PCS
Battery Weight	280kg
Charging Time	≤ 8h
Max Speed	45km/h (L6e)
Max Climbing Capability	30%
Min Turning Diameter	5m
Braking Distance	< 5m
Range	120-150km
Net Weight	435kg (without battery)
Ground Clearance	150mm (full loaded)
Wheelbase	1886mm
Track Width	1300/1322mm
Dimensions L x W x H	2893 x 1554 x 1512 mm

Materials

Materials and Build

Galvanised steel unibody chassis with welded joints
155/65R13 radial tyres on steel rims
Cast iron rear axle housing with drum brakes
Aluminium alloy front hub with disc brake
Lead-acid gel batteries with sealed casing and maintenance-free design

Process

How an Order Is Handled

You confirm the body colour, optional features (A/C, CD, etc.), and delivery location
We check current stock or production schedule and confirm lead time in writing
You pay 30% deposit via T/T and we issue a proforma invoice
Unit is prepared, tested, and photographed before shipment
We book shipping and send packing list, commercial invoice, and bill of lading

Quality Control

Checks Before Loading

Battery capacity and voltage are tested before loading
Motor, controller, and electrical system are checked for continuity and function
Brakes, steering, and suspension are tested under load before shipment
All wiring and connectors are inspected for damage and correct routing
Photos of the vehicle, battery, and wiring are sent before departure

Customisation

What Can Be Changed

Body colour from 5 basic options
Optional A/C (costs $640)
Optional CD player (costs $85)
Optional fog lamps
Optional remote control door lock ($150)
Optional aluminium wheel rims

Honest Comparison

How It Compares With the Alternatives

48V 5kW electric car	This 4kW model is cheaper to buy and maintain, but offers lower top speed and climbing ability
Electric scooter or moped	This car offers full protection, seating for four, and better load capacity, but requires more space and charging time
Gasoline-powered microcar	No fuel cost or emissions, but lower range and longer charge time compared to petrol alternatives

Use Guide

Using It Well

Charge the battery fully before first use and avoid deep discharge below 20%
Check battery voltage monthly and replace if below 40V under load
Keep the controller and motor dry; avoid driving through deep water
Replace brake pads when wear indicators show or noise increases
Use only the provided 48V 20A charger to prevent battery damage

Photographs

More Views of This Unit

Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.

Rear view with rear drum brakes, tail lights, and 13" wheel hub

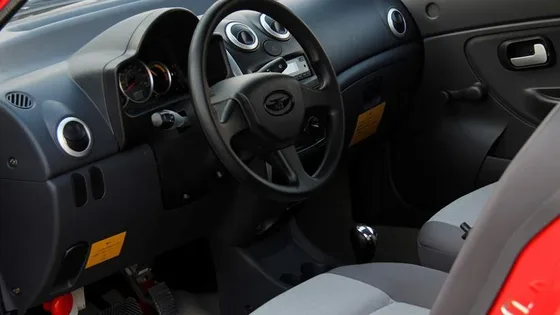

Interior with four seats, steering wheel, and dashboard controls

Source Specification

Manufacturer Text We Hold for This Listing

4-seat, 2-door,electric car 48v/4kw/45km/h, EEC L6e Specification: Basic Parameter Body uniframe, metal Dimension ( mm ) 2893x1554x1512 Wheelbase ( mm ) 1886 Track Width ( mm ) 1300/1322 Drive type Rear wheel driving Braking system Front Disc, Rear Drum ground clearance ( mm ) 150mm (full loaded) Net weight 435 kg (without battery) Max speed 45km/h ( L6E ) Max climbing capability 30% Min.turning diameter 5m Braking distance < 5 m Running distance 120-150kms Charging time ≤ 8h Parking brake hand brake for real wheel Speed control Pedal control/ automatic transmission Power Specification Motor 4KW DC motor (for L6E) Electric system 12V DC Charger 48V 20A Controller 48V Battery 6V*200AH*8PCS (L6E)Gel battery Battery type lead-acid free maintenance battery Weight of battery 35*8=280kgs Battery life recharging for 800 times Chassis System Suspension Systerm Front:McPherson independent suspens

Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.
