LED Wall Washer

CE ROHS LED wall washer

CE ROHS LED wall washer is part of our LED Wall Washer range, produced on our own lines in Jiangmen, Guangdong. It runs on AC100-240V / 12V-24V DC, rated IP65, supplied with CE ROHS documentation.

Model: BL-LWALL-12W
Input Voltage: AC100-240V / 12V-24V DC
LED Type: 1W Epistar
Output: 100LM/W
Protection: IP65
Certificates: CE ROHS

Request A Quote Request A Sample

Talk to an engineer on WhatsApp 0086-13902885704 · Manufactured in Jiangmen, Guangdong since 1998

CE ROHS

Product Overview

CE ROHS LED wall washer is part of our LED Wall Washer range, produced on our own lines in Jiangmen, Guangdong. It runs on AC100-240V / 12V-24V DC, rated IP65, supplied with CE ROHS documentation.

Key Benefits

Why Buyers Specify The CE ROHS LED wall washer

SAVE ENERGY

DIMMABLE

EASY INSTALLATION

CERTIFICATION & WARRANTY

WIDE APPLICATION

Specifications

Full published specification for CE ROHS LED wall washer. Ask us on WhatsApp if you need a value confirmed against a specific production batch.

Electrical

Power	12*1W
Input Voltage	AC100-240V / 12V-24V DC
working frequency	50-60Hz

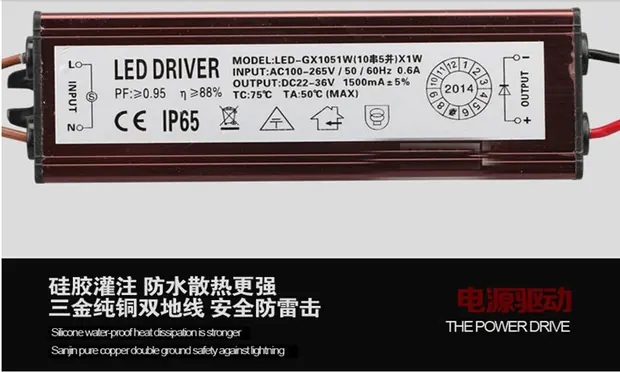

LED Driver	constant current

Light Output

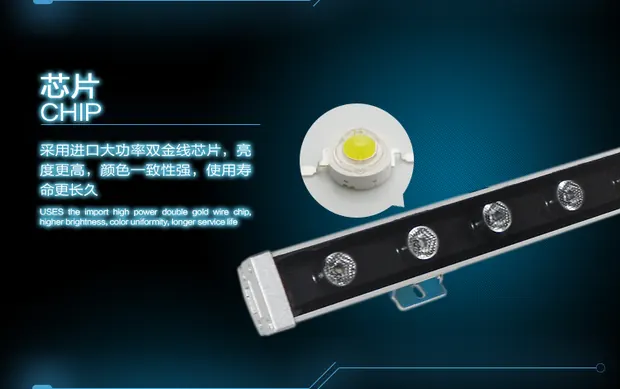

Chip Brand	1W Epistar
CRI	>80
lighting effect	100LM/W
Lumen	1200lm
Lens angle	15° / 30° / 45° / 60°
Color temperature	Red, yellow, blue, Green, white, warm white, Natural white, RGB

Construction

lamp size(MM)	10004647mm

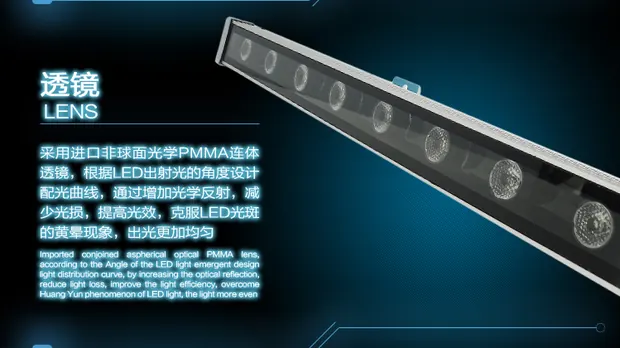

lens material	optical glass

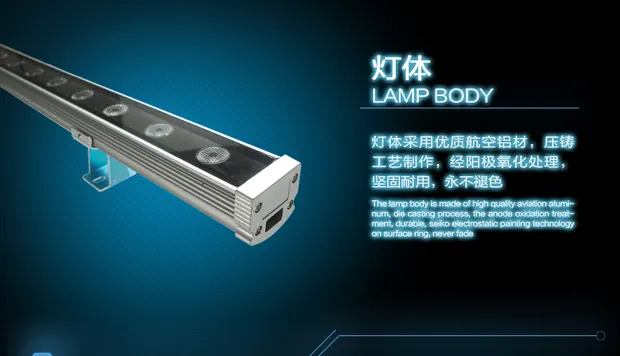

material	Aluminum

Environment

Operating temperature	-25℃ to +65℃
IP Rate	IP65

Commercial

Item Number	BL-LWALL-12W
Certificate	CE ROHS

Other Details

Controller system for RGB color	Build in IC controll Or DMX512

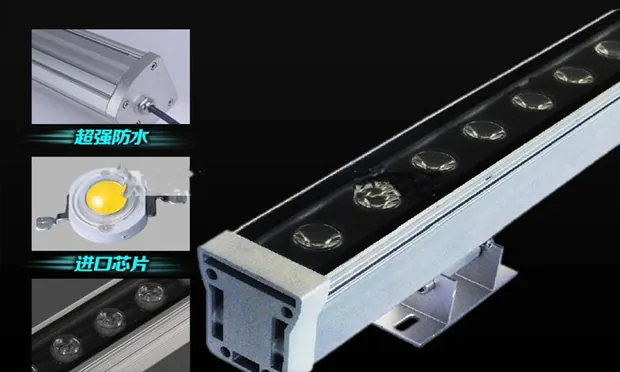

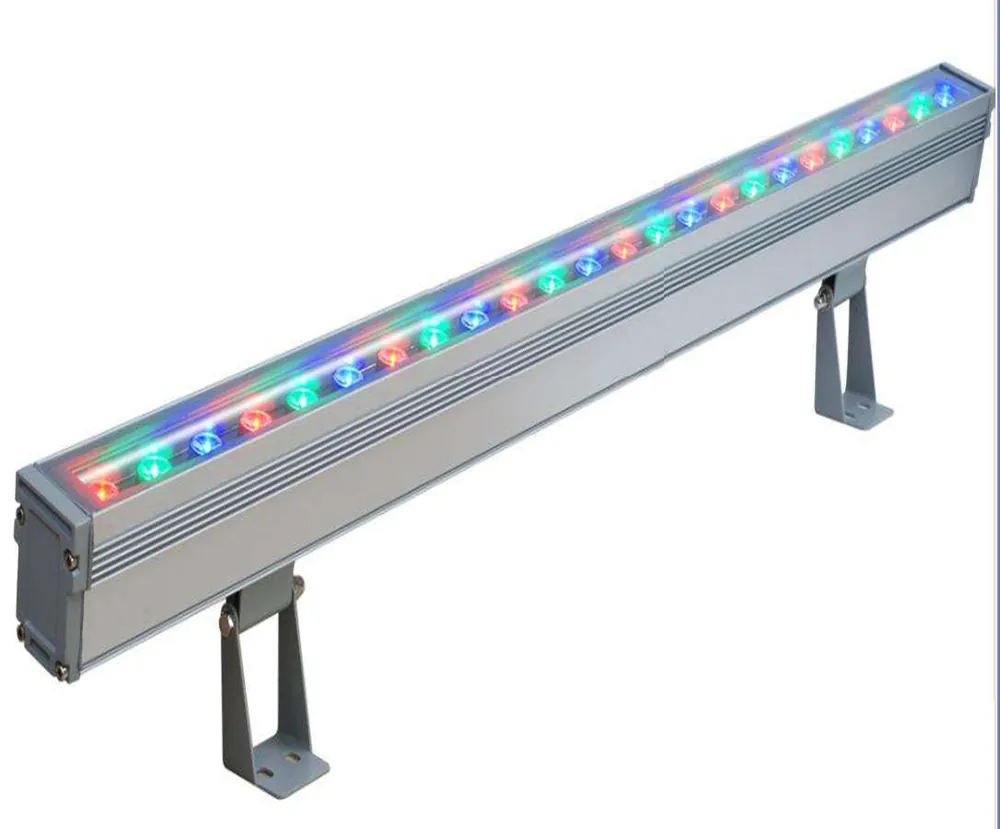

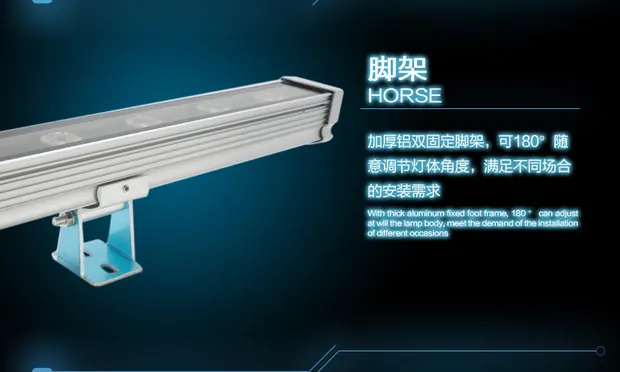

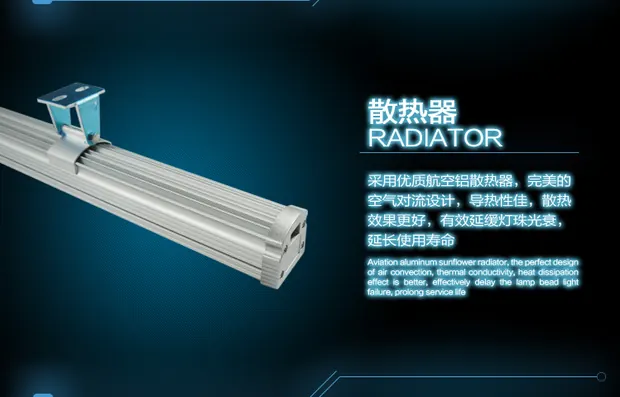

Product Detail Images

Photographs of the actual product as supplied from our Jiangmen factory.

Use Guide

Installation details that come straight from this model's own specification.

Waterproof Construction

IP65

Operating Temperature

-25℃ to +65℃

Compare With Other Models In This Range

Every value below is taken from the published datasheet of each model, so you can line up the differences before you ask for a quotation.

	CE ROHS LED wall washer This product	CE ROHS 20W LED underground lamp	CE ROHS 9W LED underground lamp	CE ROHS 6W LED underground lamp
Input Voltage	AC100-240V / 12V-24V DC	AC90-230V AC / 24V AC	AC90-230V AC / 24V AC	AC90-230V AC / 24V AC
LED Type	1W Epistar	—	—	—
Power	12*1W	0.92	0.92	0.92
Lumen	1200lm	—	—	—
Protection	IP65	IP66	IP66	IP66
Size	10004647mm	—	—	—

Manufacturing And Quality

How This Product Is Built And Checked

01
Material Inspection

Incoming material is carefully inspected and selected before it reaches the line.
02
Assembly

Our QC team follows every unit along the assembly line on our 6 production lines in Jiangmen.
03
Aging Test

Aging test of more than 24.5 hours is run before shipping.
04
Final Inspection

Load test, high-voltage test, grounding conduction test and install test on the finished light.

Quality Control Process Factory Tour Certification Library

Customization Options

Beauty STC Lighting has concentrated on commercial LED light manufacturing for over 15 years and offers professional R&D, patented design and manufacturing experience for customised products.

OEM and ODM production with your brand, packaging and carton artwork.
Patented design and manufacturing experience from our own R&D team.
Certification documents issued against your model number where the construction allows.

See The OEM & ODM Service

Certifications For This Range

This model is supplied with CE ROHS documentation.

ETL TUV CE UKCA PSE RoHS Certificates

View All Certificates

FAQ

CE ROHS LED wall washer FAQ

Can a third-party inspection be arranged before delivery?

Yes.BEAUTY STC is quite confident with our products and has passed many international certifications .You can arrange an inspector in you side or we can assist you to do that.

Why your product comes with a high cost performance?

Firstly, our product operated under ETL and CE standards and we test the products one by one to make sure each single unit workswell enough.

Do you accept customize design?

Yes, we are offering OEM and ODM service as well .If you have any good idea, we can help you realize it.

Are the products safe enough?

Our products have been tested thoroughly and are certificated by numerous internationally recognized regulatory bodies and safety organizations, including USA ETL, UL and European TUV, SGS, CE and RoHS.

Do you sell to individual customers directly?

No, we are manufacturer and only for wholesale. We have distributors in many countries, the end users can buy from them.

How can I get the sample from you?

If you are interested on our products, please contact us directly, we can send the free sample for checking the quality, but the custom should pay for the express fee.

How can I make the order?

You can email us or chat to our sales online. We have published our sales team and the contact info on the contact page. You can let us know what would you like to order and we will make PI for your confirmation. After you make the payment, we will process your order.

Are you a truly factory

Yes we are a factory has almost 16 years experience on producing. Welcome to visit us any time you want.
