Name: CY3B Series Rodless Cylinder
Brand: BETRE
SKU: CY3B

Specifications And Dimensions

The tables and drawings below are reproduced from the Betre product catalogue for this model.

Rodless Cylinder CY3B Series

Specification

Bore size(mm)	6	10	15	20	25	32	40	50	63
Fluld	Air
Proof pressure	1.05MPa
Max.operating pressure	0.7MPa
Min.operating pressure	0.16	0.16	0.16	0.16	0.15	0.14	0.12	0.12	0.12
Amblent and fluld temperature	-10 to 60℃ (No freezing)
Piston speed	50 to 500 mm/s
Cushion	Rubber bumper
Lubrication	Not required (Non-lube)
Stroke length tolerance(mm)	0 to 250 st: +1.0~0 , 251 to 1000 st: +1.4~0, 1001 st to: +1.8~0
Mounting orientation	Horizontal,Inclined,Vertical Note)
Mounting nut(2 pcs.)	Standard equipment (accessory)
Magnet holding force(N)	19.6	53.9	137	231	363	588	922	1471	2256

Note) When vertically mounting, it is impossible to perform an intermediate stop by means of a pneumatic circuit.

Strokes

Bore size (mm)	Standard stroke (mm)	Maximum available stroke(mm)

6	50,100,150,200	300
10	50,100,150,200,250,300	500
15	50,100,150,200,250,300,350,400,450,500	1000
20	100,150,200,250,300,350,400,450,500,600, 700, 800	1500
25		3000
32
40	100,150,200,250,300,350,400,450,500,600,700, 800,900,1000	3000
50		5000
63

Note 1) Long stroke specification (XB11) applies to the strokes exceeding 2000 mm.
Note 2) The longer the stroke, the larger the amount of deflection in a cylinder tube. Pay attention to the mounting bracket and clearance value.
Note 3) Intermediate stroke is available by the 1 mm interval.

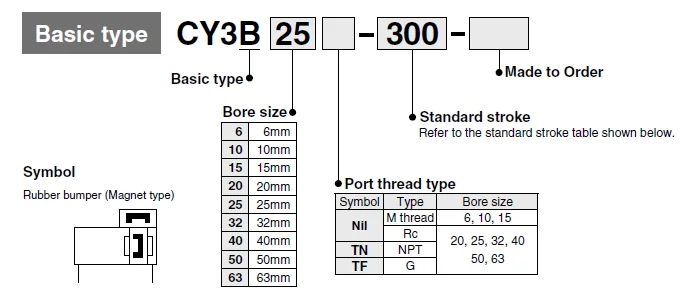

Ordering Information

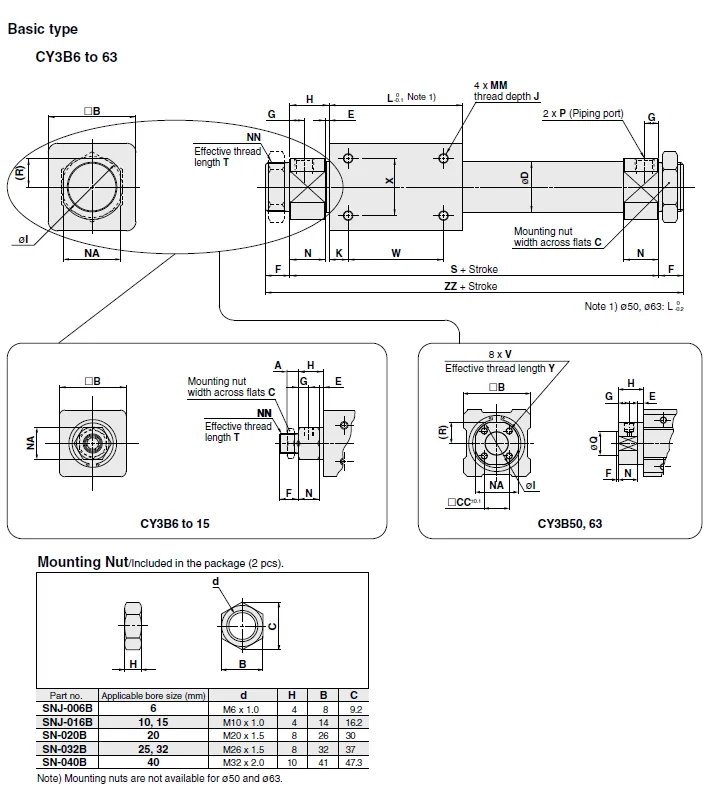

Dimension

Model	A	B	C	CC	D	E	F	G	H	I	J	K	L	MM	N	NA	NN	Q		R	S	T	V	W	X	Y	ZZ	P (Piping port)
																												Nil	TN∗	TF∗
CY3B6	4	17	8∗	-	7.6	4	8∗	5	13.5∗	-	4.5	5	35	M3×0.5	9.5∗	10∗	M6×1∗	-		-	62∗	6.5	-	25	10	-	78∗	M3×0.5∗	-	-
CY3B10	4	25	14	-	12	1.5	9	5	12.5	-	4.5	4	38	M3×0.5	11	14	M10×1	-		-	63	7.5	-	30	16	-	81	M5×0.8	-	-
CY3B15	4	35	14	-	16.6∗	2	10	5.5	13	-	6	11	57	M4×0.7	11	17	M10×1	-		-	83	8	-	35	19	-	103	M5×0.8	-	-
CY3B20	8	36	26	-	21.6∗	2∗	13	7.5∗	20	28	6	8	66	M4×0.7	18∗	24	M20×1.5	-		12∗	106	10	-	50	25	-	132	Rc1/8	NPT1/8	G 1/8
CY3B25	8	46	32	-	26.4∗	2∗	13	7.5∗	20.5	34	8	10	70	M5×0.8	18.5∗	30	M26×1.5	-		15∗	111	10	-	50	30	-	137	Rc1/8	NPT1/8	G 1/8
CY3B32	8	60	32	-	33.6∗	2∗	16	8∗	22	40	8	15	80	M6×1	20∗	36	M26×1.5	-		18∗	124	13	-	50	40	-	156	Rc1/8	NPT1/8	G 1/8
CY3B40	10	70	41	-	41.6∗	3∗	16	11	29	50	10	16	92	M6×1	26∗	46	M32×2	-		23∗	150	13	-	60	40	-	182	Rc1/4	NPT1/4	G 1/4
CY3B50	-	86	-	32	52.4∗	8	2	14	33	58∗	12	25	110	M8×1.25	25	55	-	30	-0.007	27.5∗	176		M8×1.25	60	60	16	180	RC1/4	NPT1/4	G 1/4
																			-0.037
CY3B63	-	100	-	38	65.4∗	8	2	14	33	72∗	12	26	122	M8×1.25	25	69	-	32	-0.007	34.5∗	188		M10×1.5	70	70	16	192	RC1/4	NPT1/4	G 1/4
																			-0.043

Note 2) The astrisk denotes the dimensions which are different from the CY1B series. Note 3) Mounting nuts can be screwed on only for the effective thread length of the head cover (T dimension). When mounting a cylinder, consider the thickness of flange, etc.
