ADVU Series Compact Cylinder is listed in the pneumatic cylinders section of the Betre catalogue under the Compact Cylinder series. It is manufactured by YUEQING BETRE AUTOMATION CO., LTD. in Yueqing, Zhejiang, and supplied to automation machine builders and distributors in China and export markets.

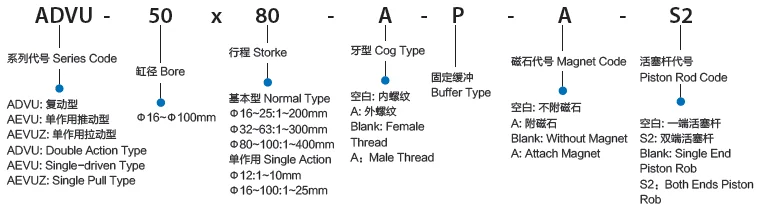

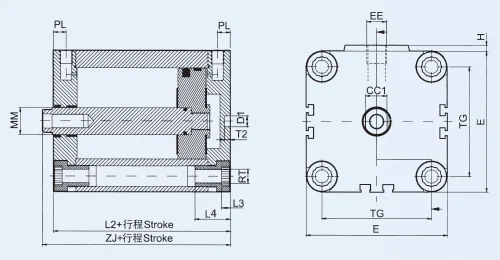

The tables and drawings below are reproduced from the Betre product catalogue for this model.
| Bore Size(mm) | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | |||
| Action | Double Acting, Single Rod/Double Rod | |||||||||||
| Fluid | Air | |||||||||||
| Ensured Pressure Resistance | 1.5MPa | |||||||||||
| Operating Pressure Range | ADVU - -P-A | 0.12~1.0MPa | 0.1~1.0MPa | 0.08~1.0MPa | 0.06~1.0MPa | |||||||
| ADVU - -P-A-S2 | 0.13~1.0MPa | 0.12~1.0MPa | 0.1~1.0MPa | 0.8~1.0MPa | ||||||||
| Ambient and Fluid Temp. | -20~80℃ (No freezing) | |||||||||||
| Port Size | M5 | G1/8" | G1/4" | |||||||||
| Piston Rod Thread | Female Thread | M4 | M5 | M6 | M8 | M10 | M12 | |||||
| Male Thread | M8 | M10×1.25 | M12×1.25 | M16×1.5 | M20×1.5 | |||||||
| Cushion | Rubber Bumper | |||||||||||
| Bore size | D1 | E | EE | H | L2 | L3 | L4 | MM | PL | RT | T2 | TG | ZJ | CC1 |
| 16 | 6 | 29 | M5 | 1 | 38 | 4 | 18.5 | 8 | 8 | M4 | 4 | 18 | 41 | 6 |
| 20 | 6 | 35.5 | M5 | 1.5 | 38 | 4 | 18.5 | 10 | 8 | M5 | 4 | 22 | 41 | 8 |
| 25 | 6 | 39.5 | M5 | 1.5 | 39.5 | 4 | 18.5 | 10 | 8 | M5 | 4 | 26 | 43.5 | 8 |
| 32 | 6 | 49.5 | G1/8 | 2 | 44.5 | 5 | 22 | 12 | 8 | M6 | 4 | 32 | 49.5 | 10 |
| 40 | 6 | 59.5 | G1/8 | 2.5 | 45.5 | 5 | 22 | 12 | 8 | M6 | 4 | 42 | 51 | 10 |
| 50 | 6 | 68 | G1/8 | 2.8 | 46.5 | 5 | 22 | 16 | 8 | M8 | 4 | 50 | 53 | 14 |
| 63 | 8 | 86 | G1/8 | 4 | 50 | 6 | 26 | 16 | 8 | M10 | 4 | 62 | 56 | 14 |
| 80 | 8 | 106 | G1/8 | 4 | 56 | 6 | 26 | 20 | 8.5 | M10 | 4 | 82 | 62 | 17 |
| 100 | 8 | 128 | G1/4 | 5 | 66.5 | 8 | 26 | 35 | 10.5 | M10 | 4 | 103 | 76.5 | 22 |
