CY1S Series Rodless Cylinder | Pneumatic Cylinders

Name: CY1S Series Rodless Cylinder
Brand: BETRE
SKU: CY1S

Specifications And Dimensions

The tables and drawings below are reproduced from the Betre product catalogue for this model.

Rodless Cylinder CY1S Series

Specification

Bore size(mm)	6	10	15	20	25	32	40
Fluid	Air
Proof pressure	1.05MPa
Max.operating pressure	0.7MPa
Min.operating pressure	0.18 MPa
Amblent and fluid temperature	−10 to 60°C (No freezing)
Piston speed*	50 to 400 mm/s
Cushion	Rubber bumper/Shock absorber
Lubrication	Non-lube
Stroke length tolerance(mm)	0 to 250 st:+1.0/0 , 251 to 1000 st:+1.4/0 , 1001st or longer:+1.8/0
Magnetic holding force(N)	19.6	53.9	137	231	363	588	922

∗ In the case of setting an auto switch at the intermediate position, the maximum piston speed is subject to restrict for detection upon the response time of a load (relays,sequence controller,etc.).

Strokes

Bore size(mm)	Standard stroke(mm)	Maximum manufacturable stroke (mm)

6	50,100,150,200	300
10	50,100,150,200,250,300	500
15	50,100,150,200,250,300,350,400,450,500	750
20	100,150,200,250,300,350,400,450,500,600,700, 800	1000
25		1500
32
40	100,150,200,250,300,350,400,450,500,600,700, 800,900,1000	1500

Note 1) Intermediate stroke is available by the 1 mm interval. (Produced upon receipt of order) Note 2) Minimum stroke available without auto switch or with one auto switch is 15 mm and minimum 25 mm for with 2 auto switches. Note 3) For 2 or more auto switches with stroke less than 25 mm (minimum 15 mm), consider “-X431” (2 switch rails).

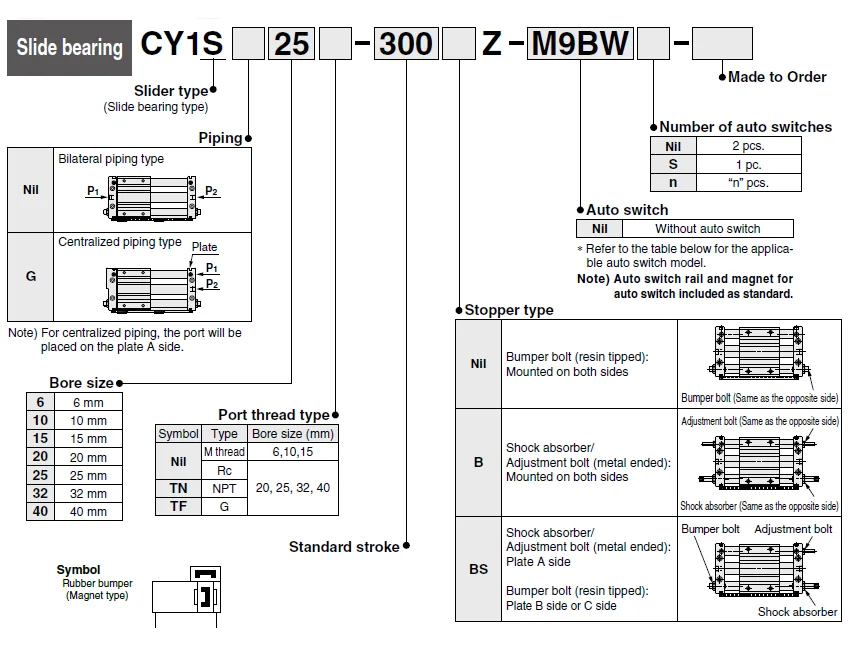

Ordering Information

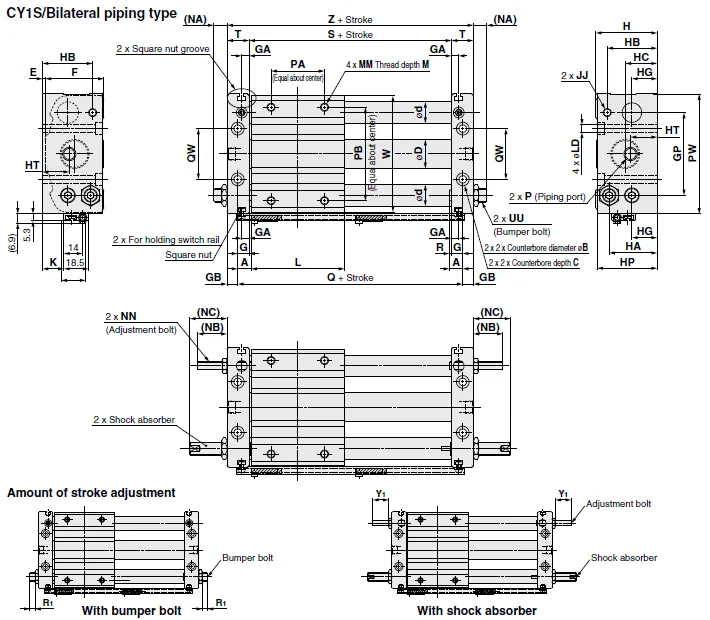

Dimension

Model	A	B	C	D	d	E	F	G	GA	GB	GP	H	HA	HB	HC	HG	HP	HT	JJ	K	L	LD	M	MM	NA


CY1S6-Z	6	6.5	3.3	7.6	8	2	25	5	5	5	30	27	20.5	20.5	15.5	8	26	15.5	M4x0.7	3	40	3.5	6	M4x0.7	11
CY1S10-Z	7.5	8	4.4	12	10	2.5	31.5	6.5	5	6	40	34	25	27	17	13.5	33	17	M4x0.7	6	45	4.6	6	M4x0.7	10.5
CY1S15-Z	7.5	9.5	5.4	16.6	12	2	38	6.5	5	6	52	40	28	29.5	20.5	15	39	20.5	M4x0.7	11	60	5.8	8	M5x0.8	10.5
CY1S20-Z	10	9.5	5.4	21.6	16	2	44	8.5	5.5	8	62	46	36	37.5	24	19	45	20	M6x1	16	70	5.8	10	M6x1	10.5
CY1S25-Z	10	11	6.5	26.4	16	2	52	8.5	5.5	8	70	54	40.5	40.5	27.5	21.5	53	21	M6x1	20	70	7	10	M6x1	12.5
CY1S32-Z	12.5	14	8.6	33.6	20	2	64	9.5	5.5	9	86	66	50	50	33	26	64	24	M8x1.25	26	85	9	12	M8x1.25	11.5
CY1S40-Z	12.5	14	8.6	41.6	25	2	74	10.5	5.5	10	104	76	55.5	55.5	38	27	74	27	M8x1.25	28	95	9	12	M8x1.25	10.5

Model	NB	NC	NN	P			PA	PB	PW	Q	QW	R	R1	Bumper bolt adjustable range (Both sides: R1x2)	S	T	UU	W	Y1	Adjustment bolt adjustable range (Both sides: Y1x2)	Z	Shock absorber
				P
				Nil	TN	TF
CY1S6-Z	14	19	M4x0.7	M3x0.5	-	-	25	25	49	52	16	1	7.5	15	42	10	M6x0.75	46	11.5	23	62	RJ0604N
CY1S10-Z	16.5	28	M4x0.7	M5x0.8	-	-	25	38	61	60	24	1	5.5	11	47	12.5	M8x1	58	14	28	72	RJ0806HN
CY1S15-Z	16.5	28	M4x0.7	M5x0.8	-	-	30	50	76	75	30	1	4.5	11	62	12.5	M8x1	73	14	28	87	RJ0806LN
CY1S20-Z	22	28	M6x1	Rc1/8	NPT1/8	G1/8	40	70	90	90	38	1.5	4.5	9	73	16.5	M10x1	87	18.5	37	106	RJ1007LN
CY1S25-Z	22	49	M6x1	Rc1/8	NPT1/8	G1/8	40	70	99	90	42	1.5	4.5	9	73	16.5	M14x1.5	96	18.5	37	106	RJ1412LN
CY1S32-Z	23.5	52	M8x1.25	Rc1/8	NPT1/8	G1/8	40	75	119	110	50	3	5.5	11	91	18.5	M20x1.5	116	18.5	37	128	RJ2015HN
CY1S40-Z	22.5	51	M8x1.25	Rc1/4	NPT1/4	G1/4	65	105	142	120	64	2	4.5	9	99	20.5	M20x1.5	139	17.5	35	140	RJ2015LN

Note) The above figures show the product with auto switches. Auto switch and switch spacer are shipped together with the product, but not assembled.
