CY1L Series Magnetically Coupled Rodless Cylinder is listed in the pneumatic cylinders section of the Betre catalogue under the Rodless Cylinder series. It is manufactured by YUEQING BETRE AUTOMATION CO., LTD. in Yueqing, Zhejiang, and supplied to automation machine builders and distributors in China and export markets.

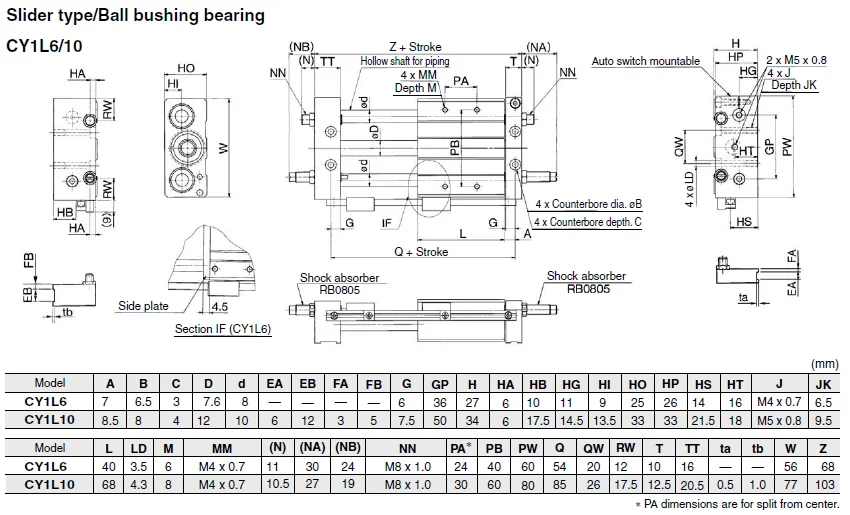

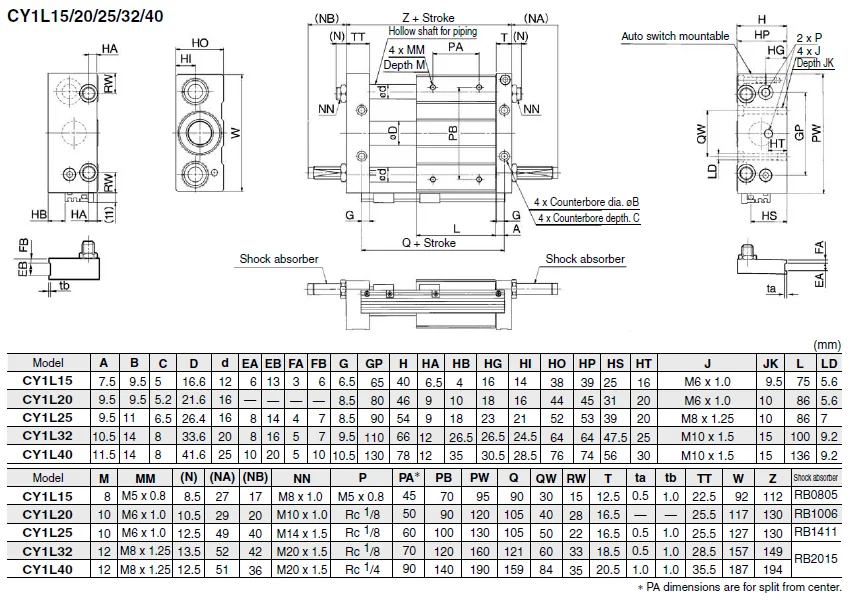

The tables and drawings below are reproduced from the Betre product catalogue for this model.

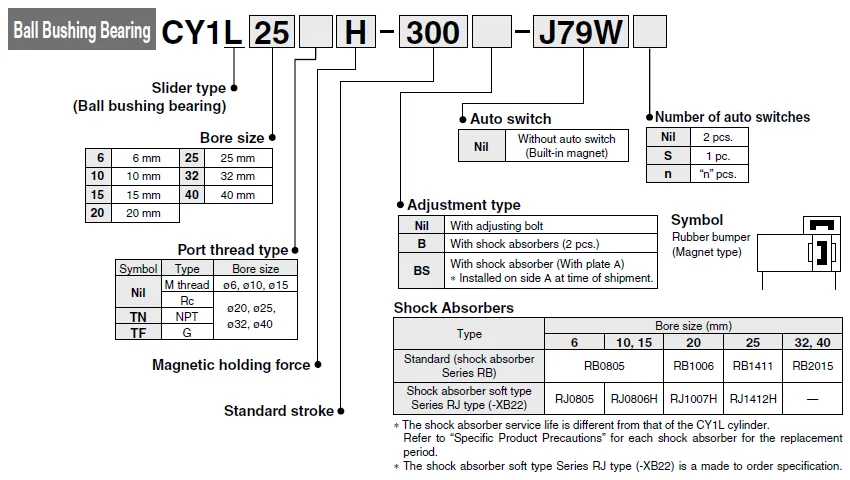

Magnetically Coupled Rodless Cylinder
Slider Type: Ball Bushing Bearing
Series CY1L
Specification
| Bore size(mm) | 6 | 10 | 15 | 20 | 25 | 32 | 40 | |||
| Fluid | Air | |||||||||
| Proof pressure | 1.05MPa | |||||||||
| Max.operating pressure | 0.7MPa | |||||||||
| Min.operating pressure | 0.18MPa | |||||||||
| Ambient and fluid temperature | –10 to 60°C (No freezing) | |||||||||
| Piston speed∗ | 50 to 500 mm/s | |||||||||
| Cushion | Rubber bumper/Shock absorber | |||||||||
| Lubrication | Not required (Non-lube) | |||||||||
| Stroke length tolerance(mm) | 0 to 250 st: +1.0, 251 to 1000 st: +1.4, 1001 st and up: +1.8 | |||||||||
| Holding force(N) | Type H | 19.6 | 53.9 | 137 | 231 | 363 | 588 | 922 | ||
| Type L | - | - | 81.4 | 154 | 221 | 358 | 569 | |||
| Standard equipment | Auto switch mounting rail | |||||||||
| Bore size(mm) | Standard stroke (mm) |
Maximum available stroke (mm) |
|||||||||
| 6 | 50,100,150,200 | 300 | |||||||||
| 10 | 50,100,150,200,250,300 | 500 | |||||||||
| 15 | 50,100,150,200,250,300,350,400,450,500 | 750 | |||||||||
| 20 | 100,150,200,250,300,350,400,450,500,600,700,800 | 1000 | |||||||||
| 25 | 1500 | ||||||||||
| 32 | |||||||||||
| 40 | 100,150,200,250,300,350,400,450,500,600,700,800,900,1000 | 1500 | |||||||||
