CY1B Series Rodless Cylinder is listed in the pneumatic cylinders section of the Betre catalogue under the Rodless Cylinder series. It is manufactured by YUEQING BETRE AUTOMATION CO., LTD. in Yueqing, Zhejiang, and supplied to automation machine builders and distributors in China and export markets.

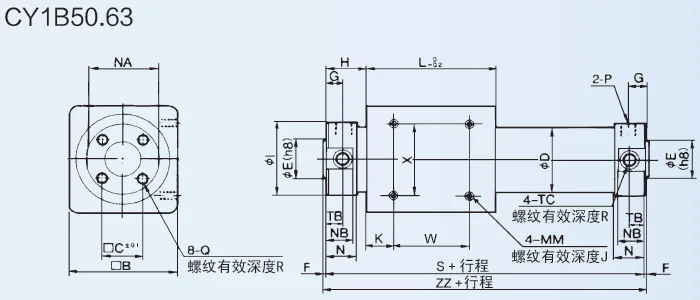

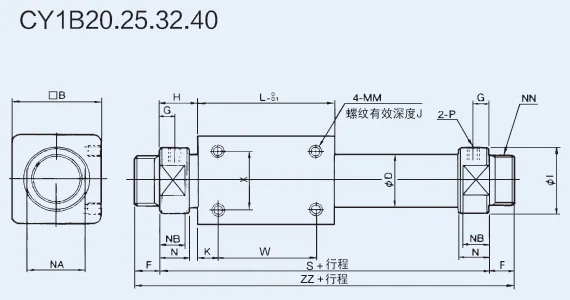

The tables and drawings below are reproduced from the Betre product catalogue for this model.
| Bore Size(mm) | 6 | 10 | 15 | 20 | 25 | 32 | 40 | 50 | 63 | ||
| Fluid | Air | ||||||||||
| Motion Pattern | Double Action | ||||||||||
| Ensured Pressure Resistance | 1.05MPa | ||||||||||
| Max. Operating Pressure | 0.7MPa | ||||||||||
| Min. Operating Pressure | 0.18MPa | ||||||||||
| Ambient & Medium Temp. | -10~60℃ (No freeze) | ||||||||||
| Working Frequency | 50~400mm/s | ||||||||||
| Buffer | Rubber Buffer | ||||||||||
| Stroke Allowable Error | 0~250:(+1.0~0) , 251~1000: (+1.4~0), 1001~:(+1.8~0) | ||||||||||
| Lubricate | No required | ||||||||||
| Port Size | M5X0.8 | Rc(PT)1/8 | Rc(PT)1/4 | ||||||||
| Model | Stroke Range | P | □B | □C | ΦD | ΦE (h8) | F | G | H | I | K | L | MMXJ | |
| CY1B20 | ~2000 | 1/8 | 36 | - | 22.8 | - | 13 | 8 | 20 | 28 | 8 | 66 | M4X0.7X0.6 | |
| CY1B25 | ~2000 | 1/8 | 46 | - | 27.8 | - | 13 | 8 | 20.5 | 34 | 10 | 70 | M5X0.8X8 | |
| CY1B32 | ~2000 | 1/8 | 60 | - | 35 | - | 16 | 9 | 22 | 40 | 15 | 80 | M6X1.0X8 | |
| CY1B40 | ~2000 | 1/4 | 70 | - | 43 | - | 16 | 11 | 29 | 50 | 16 | 92 | M6X1.0X10 | |
| CY1B50 | ~2000 | 1/4 | 86 | 32 | 53 | 30 | 2 | 14 | 33 | 58.2 | 25 | 110 | M8X1.25X12 | |
| CY1B63 | ~2000 | 1/4 | 100 | 38 | 66 | 32 | 2 | 14 | 33 | 72.2 | 26 | 122 | M8X1.25X12 | |
| NB | NN | QXR | S | TB | TCXR | W | X | ZZ | ||
| 13 | M20X1.5 | - | 106 | - | - | 50 | 25 | 132 | ||
| 13 | M26X1.5 | - | 111 | - | - | 50 | 30 | 137 | ||
| 15 | M26X1.5 | - | 124 | - | - | 50 | 40 | 156 | ||
| 19 | M32X2.0 | - | 150 | - | - | 60 | 40 | 182 | ||
| 23 | - | M8X1.25X16 | 176 | 14 | M12X1.25X7.5 | 60 | 60 | 180 | ||
| 23 | - | M10X1.5X11.5 | 188 | 14 | M14X1.5X11.5 | 70 | 70 | 192 | ||
