ISUZU NPR 3-5cbm Mini Ready Mix Concrete Truck Philippines
Chassis: ISUZU NPRDrive Type: 4×2
48 spec rows · View details →
ISUZU Concrete Mixer Truck
ISUZU FTR 7cbm Transit Mixer Truck
Hot sale ISUZU 7m3 concrete mixer truck, ISUZU FTR LHD chassis, ISUZU 205HP diesel engine, mld 6-shift manual gearbox
- Chassis: ISUZU
- Engine: ISUZU engine
- Power: 205HP (151 KW)
- Overall Dimension: 8600x2500x3800 mm
- GVW / Kerb Weight: 16,000 kg / 12,000 kg
Overview
What This Truck Is For
The ISUZU FTR 7cbm Transit Mixer Truck is one of 4 ISUZU Concrete Mixer Truck models published on this site and it is built on a ISUZU chassis, in a 4×2 left-hand drive layout, with the ISUZU engine. Overall dimensions as 8600x2500x3800 mm, GVW and kerb weight as 16,000 kg / 12,000 kg, the emission level as Euro V.
Transit mixers that keep concrete turning between the batching plant and the pour. Ready-mix producers, construction contractors and precast operations.
This unit is listed under ISUZU Concrete Mixer Truck, one of 41 categories in the Autosen catalog. ISUZU concrete Mixer truck also called transit mixer vehicle, concrete delivery truck, transit mixing vehicle, cement mixer truck, concrete mixing truck, cement transportation truck, concrete truck. ISUZU mixer truck is manufactured using the cutting-edge technology and component
See all 4 ISUZU Concrete Mixer Truck models| Chassis | ISUZU |
|---|---|
| Engine | ISUZU engine |
| Power | 205HP (151 KW) |
| Overall Dimension | 8600x2500x3800 mm |
| GVW / Kerb Weight | 16,000 kg / 12,000 kg |
| Drive Type | 4×2 left-hand drive |
| Transmission | 9-speed front, 1 reverse |
| Emission | Euro V |
The factory table for this model carries 29 rows. 8 of them are published here; the full table is sent with the quotation.
Problems It Solves
Why Buyers Specify This Body Type
Concrete has a clock on it
Drum rotation keeps the load workable for a limited time. Journey length has to be inside that window, which is a routing decision as much as a truck decision.
Drum volume is quoted two ways
Geometric drum volume and rated mixing volume are different numbers. The one that matters for a delivery is the rated mixing volume.
Washout arrangement affects the yard
Water tank capacity and chute cleaning gear decide how much cleaning happens on site rather than back at the plant.
Before You Order
Three Lines To Check On The Table
- Rated mixing volume in cbm, not drum geometric volume
- Drum drive arrangement and water tank capacity
- Chute length and whether an extension is supplied
Where It Is Used
Fleets That Run This Vehicle
Industry pages group the catalog the way buying departments think about it.
Photos

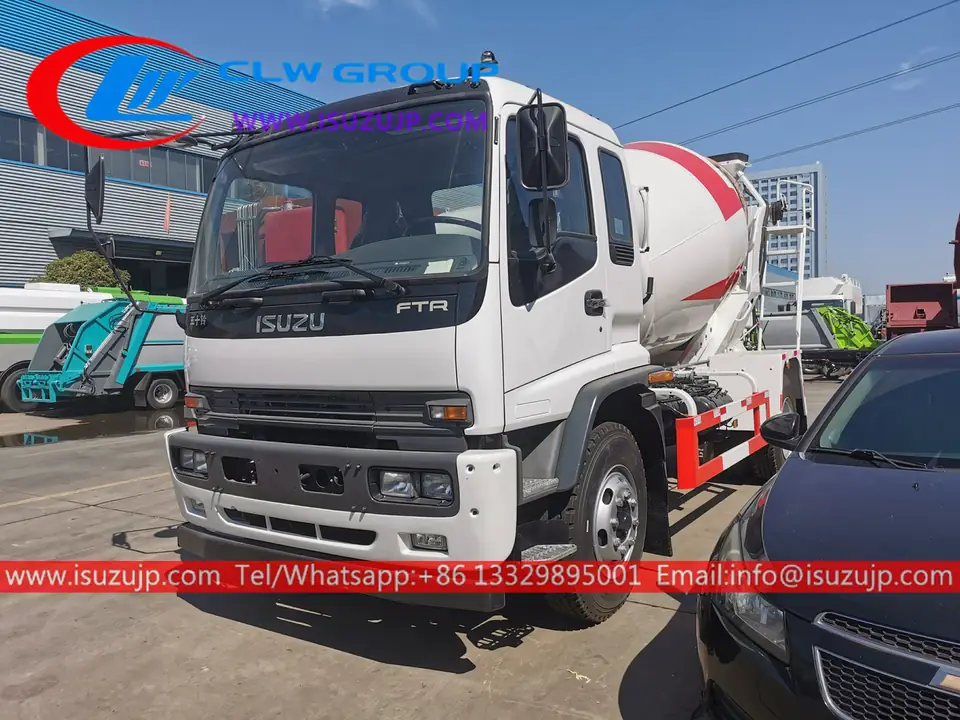

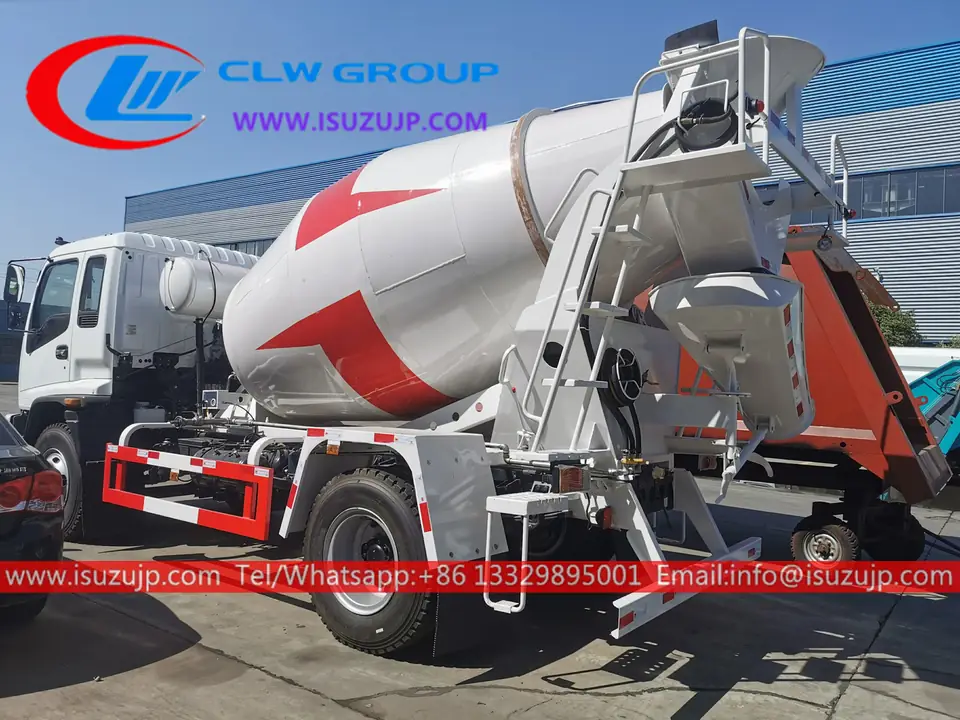

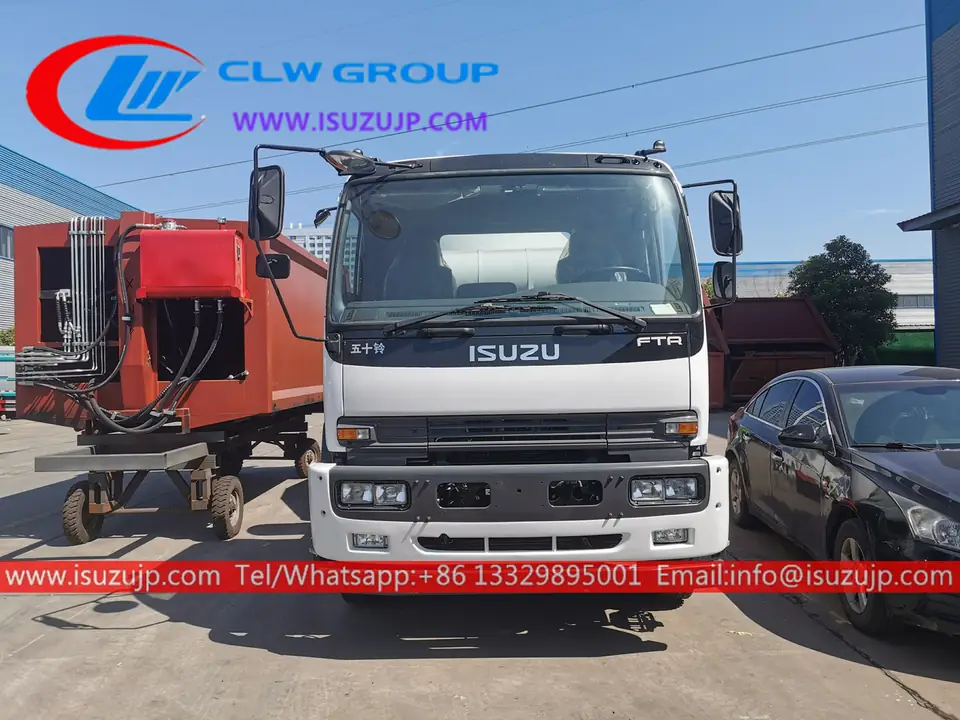

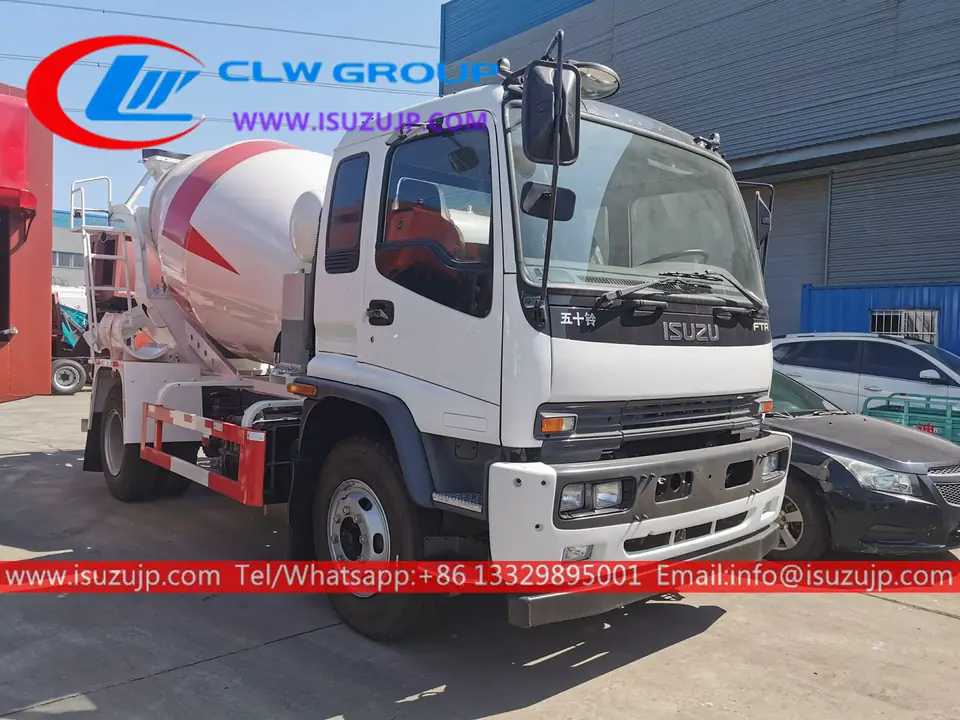

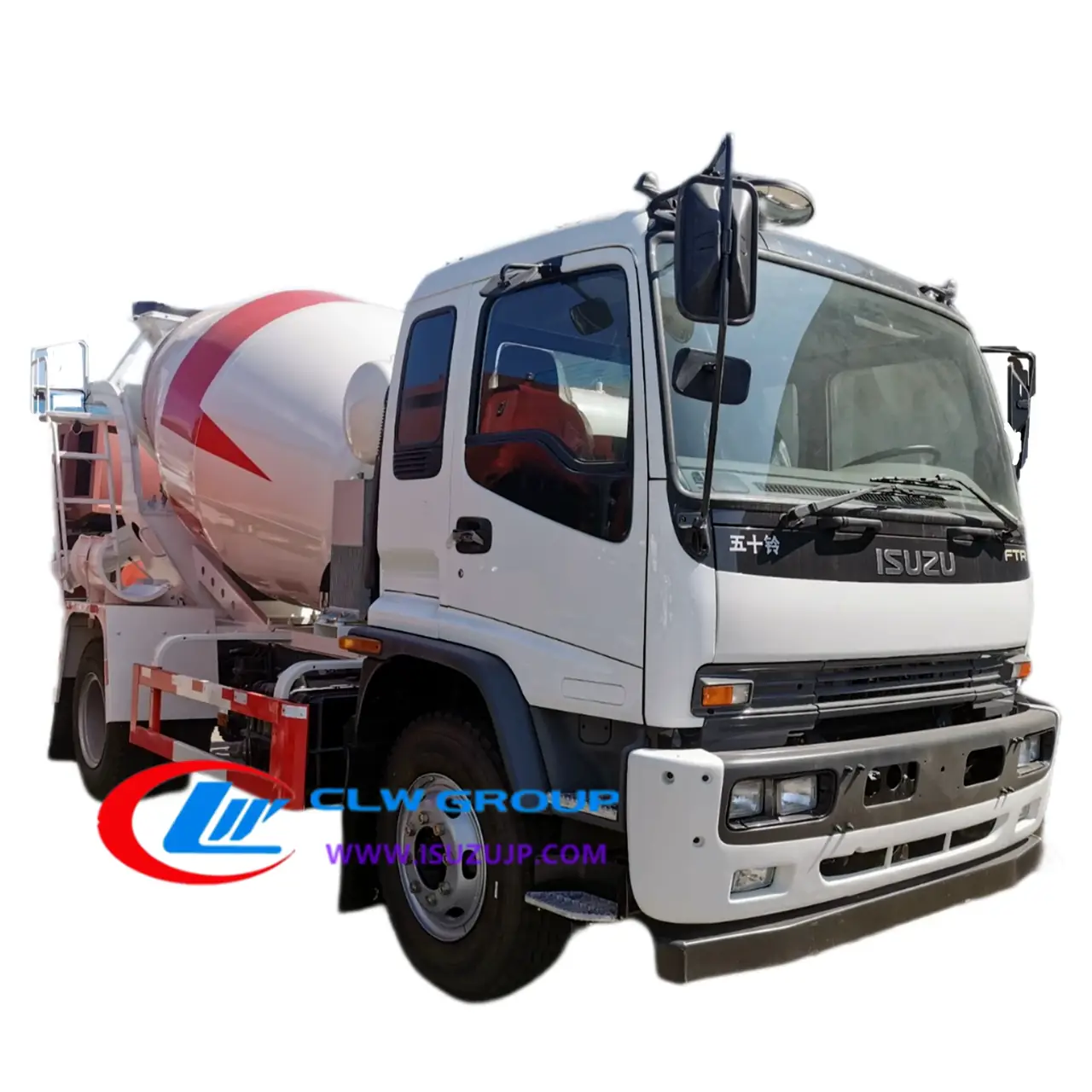

ISUZU FTR 7cbm Transit Mixer Truck In Detail
Photographs of this model as published by the builder. No rendering, no stock imagery.
From The Factory Description
What The Builder Says About This Model
ISUZU transit mixer truck also called Concrete mixer truck, self-loading Mixer truck, Concrete mixer drum truck, or transit mixer vehicle is made to transport and mix concrete up to the construction site. The concrete mixing transport truck maintains the material’s liquid state through agitation, or turning of the drum, until delivery. Our mixer truck is mainly used in cement mixing stations, the construction field, and other places. The capacity ranges from 2m3 to 18m3, meeting customers’ various needs. It is can be loaded and unloaded by itself.
Commercial Terms
How This Model Is Built Shipped And Paid For
| Shipping method | Ro-Ro vessel, bulk ship or 40ft container. |
|---|---|
| Payment | T/T 30% as deposit, 70% before delivery. Photos or videos of the truck are sent before the balance is paid. |
| Trade terms | EXW, FOB, CFR, CIF. |
| Lead time | Normally 30 days after the advance payment is received. The exact date depends on the items and the quantity ordered. |
| Custom build | Production can follow the customer's own technical drawings and specifications. |
| Testing | 100% test before delivery. |
| Export documents | CO, FORM E and FORM P with pre-shipment inspection. |
Related Models
Other ISUZU Concrete Mixer Truck Models
6×4 ISUZU GIGA 52meters Cement Pump Truck for Sale
Product Origin: ChinaBody Size: 12000x2500x4000 mm
4 spec rows · View details →
8×4 ISUZU GIGA 62meters Concrete Pump Truck for Sale
Product Origin: ChinaBody Size: 12000x2500x4000 mm
4 spec rows · View details →Questions
Questions About The ISUZU FTR 7cbm Transit Mixer Truck
Which chassis does the ISUZU FTR 7cbm Transit Mixer Truck use?
As published: chassis ISUZU, drive type 4×2 left-hand drive. Left- or right-hand drive is confirmed against the destination market before production starts.
What emission standard does the ISUZU FTR 7cbm Transit Mixer Truck meet?
The published emission level for this model is Euro V. Confirm the level your country requires for registration before the order is placed.
What are the overall dimensions of the ISUZU FTR 7cbm Transit Mixer Truck?
Published as 8600x2500x3800 mm. These dimensions decide whether the unit ships in a container or has to go by Ro-Ro or bulk vessel.
Can the ISUZU FTR 7cbm Transit Mixer Truck be built to our own drawing?
Yes. Production can follow the customer's technical drawings and specifications. Send the drawing with the enquiry so the chassis and body are quoted as one build.
What is your terms of shipping method?
Generally we ship the truck by Ro-Ro vessel, bulk ship or container.
What is your terms of payment?
T/T 30% as deposit and 70% before delivery. We show you photos or videos of the truck before you pay the balance.
What is your terms of delivery?
EXW, FOB, CFR and CIF.
Tell Us The Job And We Will Quote The Truck
Send the destination port and the capacity you need. We reply with a price for the ISUZU FTR 7cbm Transit Mixer Truck or the closest model in the catalog.
