Industrial Control Panels

Contactors changeover switches connectors and meters for distribution boards

A distribution or control board pulls several of these product lines together: contactors for the switched circuits a changeover switch for a second supply connectors for the wiring and a panel meter for local indication. The modular products are built for standard DIN rail so they sit alongside the breakers already in the board.

What Makes This Application Hard

  • Board width is fixed and every module has to earn its space
  • Contactor noise is a problem in occupied buildings
  • Wiring time drives the cost of the finished panel
  • A second supply has to be selected without any risk of back feeding

How These Components Answer It

  • Modular contactors on standard DIN rail with up to four poles
  • AC and DC coils with silent operation and low power consumption
  • Push in and lever connectors with DIN rail carriers to speed up wiring
  • Changeover switches in the width of a mini circuit breaker with a transparent label window

Recommended Products

Components For This Application

Contactors

All 39 Models →

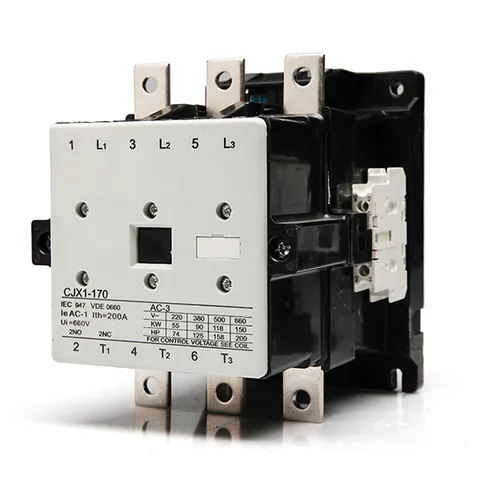

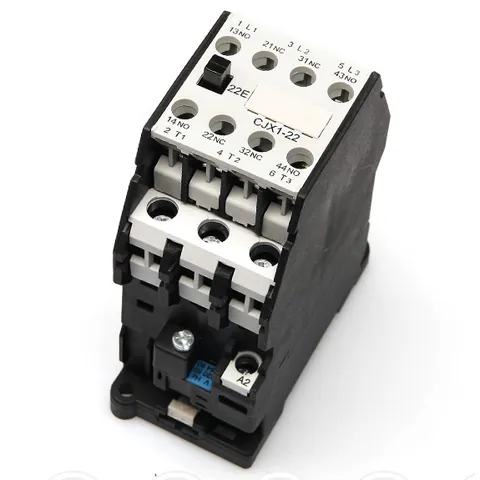

CJX1-110 Contactors CJX1-110 Model: CJX1-110/ 3TF50 · Rated Current AC3: 110A CJX1-12 Contactors CJX1-12 Model: CJX1-12/ 3TF41 · Rated Current AC3: 12A CJX1-140 Contactors CJX1-140 Model: CJX1-140/ 3TF51 · Rated Current AC3: 140A CJX1-16 Contactors CJX1-16 Model: CJX1-16/ 3TF42 · Rated Current AC3: 16A

Manual Changeover Switch

All 1 Models →
BSF125 Modular Changeover Switch Manual Changeover Switch BSF125 Modular Changeover Switch Model: BSF125 · Pole: 1P

Fast Wiring Connectors

All 11 Models →
DIN Rail Mounted Connector Carrier Fast Wiring Connectors DIN Rail Mounted Connector Carrier SC-101 Fast Wiring Connectors SC-101 SC-102 Fast Wiring Connectors SC-102 SC-103D Fast Wiring Connectors SC-103D

Instruments & Meters

All 8 Models →
D69-20 Instruments & Meters D69-20 Measuring Range: AC 100-500V · Working Power: w/t working power D69-21 Instruments & Meters D69-21 Measuring Range: AC 0-500V · Working Power: 220VAC D69-22 Instruments & Meters D69-22 Measuring Range: AC 0-199.9mV 0-1.999mV 0-19.99V 0-199.9V 0-500V · Working Power: 220VAC D69-30 Instruments & Meters D69-30 Measuring Range: DC 0-199.9mV 0-1.999mV 0-19.99V 0-199.9V 0-500V · Working Power: AC or DC 9-12V

FAQ

Industrial Control Panels Questions

Which standards do the contactors follow
The modular contactors are designed according to IEC 60947-4-1 and IEC 61095. The CJX2 series follows IEC60947-4-1 and GB14048.4. The changeover switch is listed to IEC60947-3 and IEC60669.
What coil voltages are available
The modular contactors are listed with coil voltages of 24VAC 48VAC 120VAC and 220VAC and the technical text also lists 12 Vac/dc 24 Vac/dc 48 Vac/dc 230 Vac and 220 Vdc options. Each product page carries the coil voltages for that model.

Talk Through Your Application

Describe the voltage current and cycle count and we will point you at the models that fit.
