Manual Changeover Switch

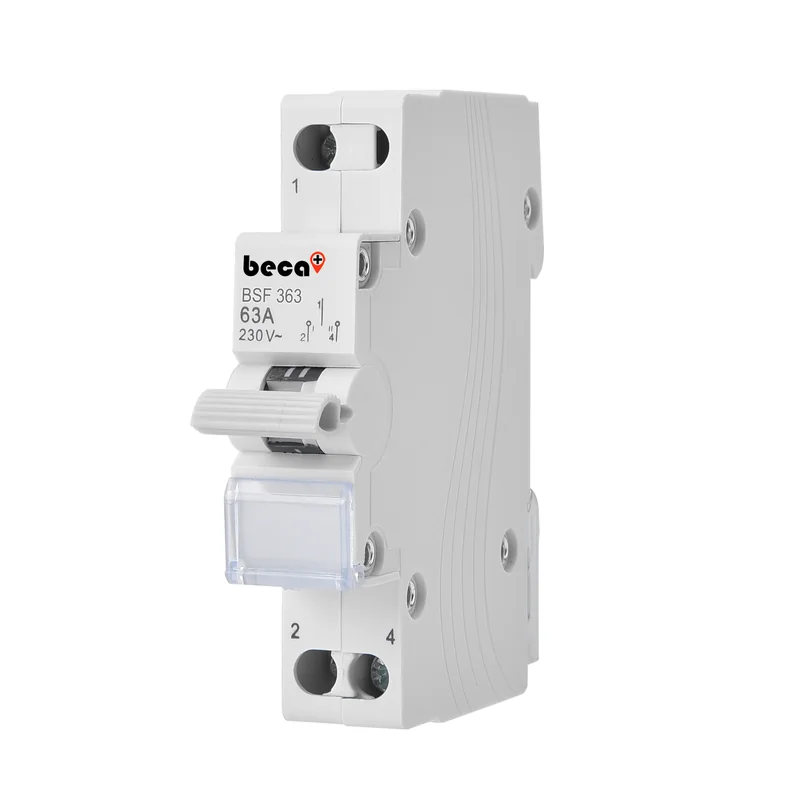

BSF125 Modular Changeover Switch
Modular Changeover Switch
Product Overview
BSF125 modular changeover switch is a new generation of power changeover switch independently developed by our company. It realizes dual power switching up to 63A with only the size of mini circuit breaker case, which has the advantages of small size, high-cost efficiency, high reliability, long life and easy installation.
A modular changeover switch switches a house’s electricity supply from the general grid power supply to a “generator system” in case of power outage. The changeover switch connects to the main power grid, generator or alternate source and the house wiring. When you switch or “Change over” all the power on that circuit changes from either Grid or Generator.
Features
Key Features
Why This Model Is Specified
- Modular structure design
- Standard DIN rail mounting
- Maximum current up to 63A
- With transparent label window
- Mechanical lifespan>100000times
- Electrical lifespan>5000times
Who It Is For
- Installers fitting generator backup to a consumer unit
- Panel builders needing a dual supply selector on DIN rail
- Distributors supplying modular switchgear
Problems It Solves
- Switching a supply between grid and generator without back feeding
- Fitting a changeover function into the width of a mini circuit breaker
- Making the selected source visible to whoever opens the board
Where It Is Used
- Grid to generator changeover in homes and small buildings
- Dual supply selection inside distribution boards
Specifications
Technical Data And Dimensions

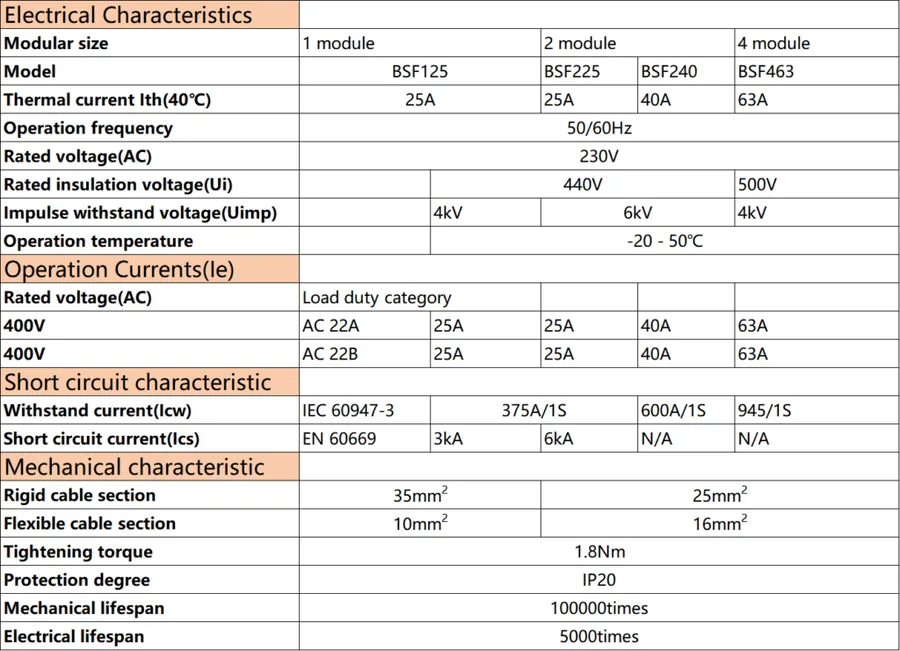

Specification

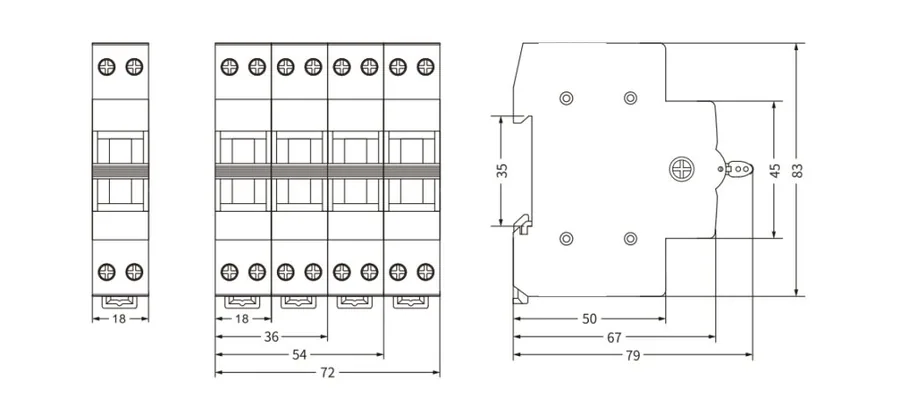

Overall Size
Quality And Certification
The products have been certified by CCC CE and RoHS and qualified by UL in the US and KEMA in the UK. Assembly is carried out in a dustless workshop and finished units are checked on dedicated testing equipment.
See The Factory →Customisation And Ordering
Send the model number the quantity and the coil or supply voltage you need and we will confirm the variant before you order. Drawings can be sent by email and we will come back with what is possible.
Email Your Requirement →Related Products
