Contactors

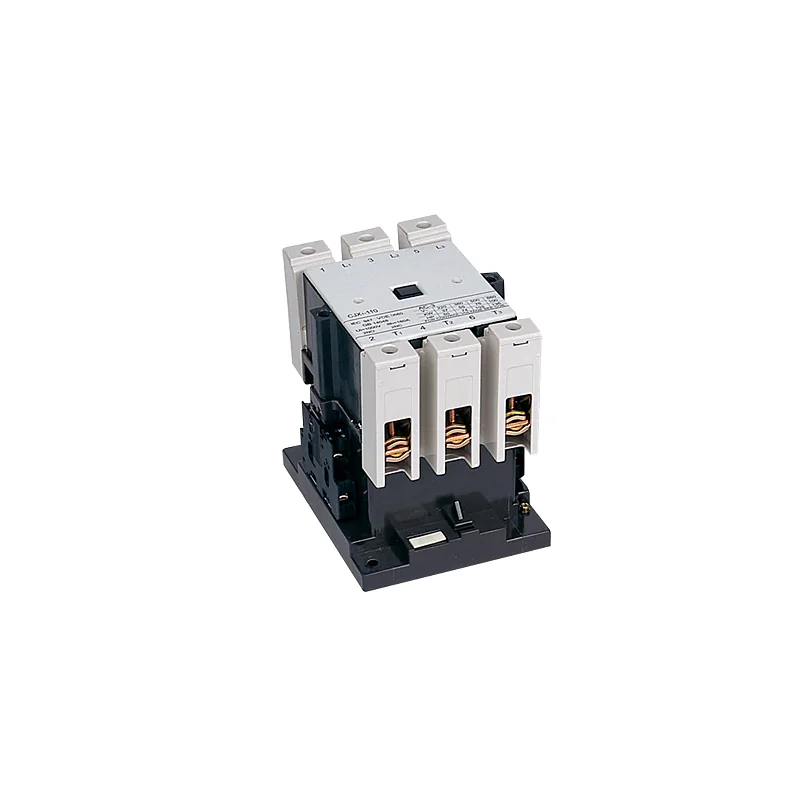

CJX1-110
CJX1
Product Overview
CJX1 Series AC contactor is suitable for the circuit of AC 50 (or60)Hz, rated operating voltage to 690V, the rated current up to 400A when the usage category of AC-3, rated operating voltage is 380V, for remotely connecting and breaking the circuit, and it can be combined with JRS2 (3UA) into electromagnet starter to protect the circuit’s over load produced by operation. This product confirms to: GB14048.4, IEC60947-4-1, etc. standards
Who It Is For
- Control panel and switchgear builders assembling motor starters and distribution boards
- OEMs building pumps fans compressors and HVAC plant
- Electrical wholesalers and distributors stocking IEC rated contactors
Problems It Solves
- Remote switching of motor and lighting circuits without running load current to the operator
- Compact DIN rail switching where a full size contactor will not fit in the board
- Silent operation and low coil consumption in occupied buildings
Where It Is Used
- Motor starting including reversing and star delta arrangements
- Lighting heating and general control circuits in utility and industrial buildings
- Switching of lamp loads fans and pumps from a distribution board
Specifications
Technical Data And Dimensions
Specification
| Type | CJX1-9 CJX1-12 | CJX1-16 CJX1-22 | CJX1-32 | CJX1-45 CJX1-63 | CJX1-75 CJX1-85 | CJX1-110 CJX1-140 | CJX1-170 CJX1-205 | CJX1-250 CJX1-300 | CJX1-400 CJX1-475 | |
| Mechanicalendurance(×10 6 ) | 10 | 10 | 10 | 8 | 8 | 8 | 8 | 8 | 8 | |
| Conventionalthermal current(A) | 20 | 30 | 45 | 80 | 100 | 160 | 210 | 300 | 400/550 | |
| Rated insulationvoltage(V) | 660 | 660 | 660 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | |
| Rated(380V)operatingcurrent(A) | AC-3 | 9/12 | 16/22 | 32 | 45/63 | 75/85 | 110/140 | 170/205 | 250/300 | 400/475 |
| AC-4 | 3.3/4.3 | 7.7/8.5 | 15.6 | 24/28 | 34/42 | 54/68 | 75/96 | 110/125 | 150 | |
| Power ofcontrollablemotor(KW)AC-3 | 380V | 4/5.5 | 7.5/11 | 15 | 22/30 | 37/45 | 55/75 | 90/110 | 132/160 | 200/250 |
| 660V | 5.5/7.5 | 11 | 23 | 39/55 | 67 | 100 | 156 | 235 | 375 | |
| Power ofcontrollablemotor(KW)AC-4 | 380V | 1.4/1.9 | 3.5/4 | 7.5 | 12/14 | 17/21 | 27/35 | 38/50 | 58/66 | 81 |
| 660V | 2.4/3.3 | 6/6.6 | 13 | 20.8/24 | 29.5/36 | 46.9/60 | 66/86 | 100/114 | 140 | |
| Frequencyof operation(l/h) | AC3 | 1000 | 750 | 750 | 1200/1000 | 1000/850 | 1000/750 | 700/500 | 700/500 | 500/420 |
| AC4 | 250 | 250 | 250 | 400/300 | 300/250 | 300/200 | 200/130 | 200/130 | 150 | |
| Electricalendurance(×10 6 ) | AC3 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 |
| AC4 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | |
| Operating voltagerange of coil | (0.8~1.1)Ue | |||||||||
| Powerconsump-tion of coil | Atracting(VA) | 10 | 10 | 12.1 | 17 | 32 | 39 | 58 | 84 | 115 |
| Starting(VA) | 68 | 69 | 101 | 183 | 330 | 550 | 910 | 1430 | 2450 | |
| Rated insulationvoltage of auxitiarycontacts(V) | 690 | 690 | 690 | 690 | 690 | 690 | 690 | 690 | 690 | |
| Conventionalthermal current ofauxitiary contacts(A) | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | |
| Ratedoperatingcurrent ofauxitiarycontacts(A) | AC15380/220 | 6/10 | 6/10 | 4/6 | 4/6 | 4/6 | 4/6 | 4/6 | 4/6 | 4/6 |
| DC13220V | 0.45 | 0.45 | 0.48 | 0.48 | 0.48 | 0.48 | 0.48 | 0.48 | 0.48 | |
| Ratedvoltage ofthe controlcoil(V) | 50Hz | 24,36,48,110,127,220,380,etc | ||||||||
| 60Hz | 24,110,220,440,etc. | |||||||||
Outline
| Type | A max | B max | C max | a | b |
| CJX1-9,12 | 45 | 78.5 | 104(90) | 35+0.31 | 60+0.37 |
| CJX1-16,22 | 46 | 85 | 114 | 35+0.31 | 75+0.37 |
| CJX1-32 | 74 | 85 | 108 | 50+0.31 | 75+0.37 |
| Type | A max | B max | C max | a | b | φ |
| CJX1-45,63 | 91(114) | 120 | 124 | 70+0.6 | 100+0.2 | 4.8 |
| CJX1-75,85 | 102(125) | 135 | 142 | 80+0.6 | 100+0.2 | 5.5 |
| CJX1-110,140 | 122(145) | 156 | 154 | 100+0.2 | 130+0.8 | 6.5 |
| CJX1-170,205 | 140(163) | 185 | 190 | 100+0.2 | 160+0.8 | 7 |
| CJX1-250,300 | 150(173) | 205 | 200 | 120+0.2 | 180+0.8 | 9 |
| CJX1-400,475 | 165(188) | 205 | 225 | 130+0.8 | 180+0.8 | 9 |
Quality And Certification
The products have been certified by CCC CE and RoHS and qualified by UL in the US and KEMA in the UK. Assembly is carried out in a dustless workshop and finished units are checked on dedicated testing equipment.
See The Factory →Customisation And Ordering
Send the model number the quantity and the coil or supply voltage you need and we will confirm the variant before you order. Drawings can be sent by email and we will come back with what is possible.
Email Your Requirement →Related Products
