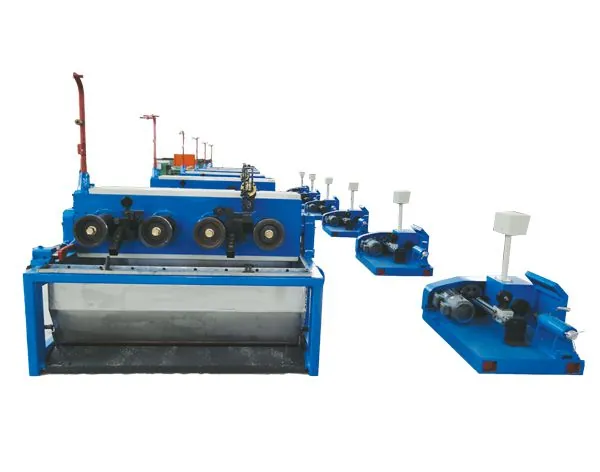

Turnover Wet Wire Drawing Machine manufactured by Ningbo Anchors Precision Machinery Co., Ltd.

Wire Drawing Machine

Turnover Wet Wire Drawing Machine

Wire drawing machines reduce rod and wire to the diameter the forming line needs, in dry, wet, straight line, inverted and combined configurations.

  • Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
  • Full manufacturer parameter table on this page
  • Machine video available on request
  • Rapid response technical team for operation and troubleshooting
Request a Quote Talk to an Engineer Email Us

Have a drawing? Send it straight to WhatsApp or email — there is no form to fill in.

Salient Features

Turnover wet wire drawing machine manufactured by pingsheng is applicable for high speed drawing of high intensity copper plated steel wire used for curtain steel wire.

Features:matching with SG120,SG165 vertical take-up machine or SG195,SG255 horizontal take-up machine;AC variable-frequency speed adjustment,PLC digital communication control,constant tension adjustable,touch screen,perfect safety system,automatic diagnosis,human-machine dialogue,etc.

Main Technical Parameters

Equipment Model LT160-23-260 LT160-21-275 LT320-17-360 LT320-15-360
Applicable Production Galvanized steel wire,high carbon steel wire Copper clad steel wire,resistance wire High carbon ,high-intensity steel wire CO-protected welding wire
Drawing dies 23 21 17 15
Outlet range 0.10-0.5mm 0.15-0.5mm 0.5-1.0mm 1.0-1.6mm
Maximum speed 20m/s-1 18m/s-1 10m/s-1 8m/s-1
