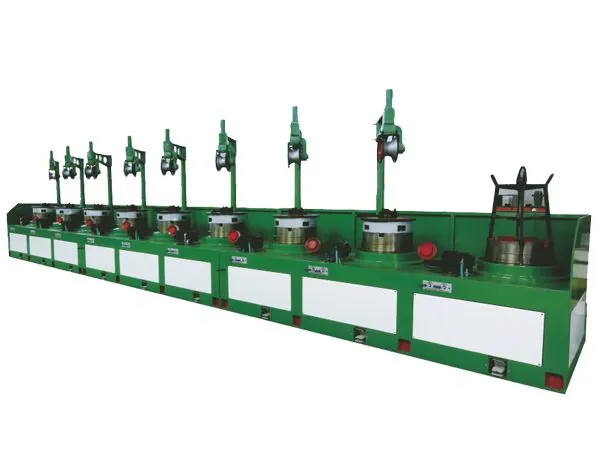

OTO Type Wire Drawing Machine LW9/560 Controlied by PLC

Wire drawing machines reduce rod and wire to the diameter the forming line needs, in dry, wet, straight line, inverted and combined configurations.

Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
Full manufacturer parameter table on this page
Machine video available on request
Rapid response technical team for operation and troubleshooting

Request a Quote Talk to an Engineer Email Us

Have a drawing? Send it straight to WhatsApp or email — there is no form to fill in.

Salient Features

We are one of the earliest manufacturers of this wire drawing machine in China.Main products include steel wire rod pre-treatment production line,rough wire drawing line ,fine drawing line, gas welding wire, arc welding wire production line of high speed winding machine.
1.Rough wire drawing line:
Duck pay-off frame(Overhead pay-off frame)→Brake→Mechanical wire descaling machine→acid picking and drying →boronation→LW560 variable frequency speed regulation OTO type wire drawing machine→GS630 Spool take-up machine (ZX600 Coiler).
2.Fine wire drawing line:
Spool pay-off machine(Rotation pay-off machine)→LW400 high speed OTO type wire drawing machine→GS630 Spool take-up machine.
3.High speed winding:
Spool pay -off machine(with damping)→Tension devioe→high-speed winding machine.

Main Technical Parameters

Diameter of capstan	mm	560	400-360
Drawing dies	time	9	9
Maximum diameter of inlet wire	mm	φ6.5	φ3.0-φ2.5
Minmum diameter of outlet wire	mm	φ2.0	φ0.9-φ0.7
Total compression rate	%	90.53	91
Average compression rate	%	23.04	23.5
Maximum line speed	m/s	6	12
Motor power	Kw	18.5-30	7.5-11
Dimension	mm	12000x1850x2250	9000x1650x2250
Weight	t	2	1.5
Inlet wariable– frequency		PLC control	PLC control

M12*200MM High Speed Thread Rolling Machine

Other Models in Wire Drawing Machine

Same family, different size range and station count.

L Series Dry Type Continuous Wire Drawing Machine

Wire Drawing Machine

Wire Drawing Machine Major Auxiliary Equipment

Wire Drawing Machine

Straight Line Type Wire Drawing Machine

Wire Drawing Machine

Heavy Wet Wire Drawing Machine LT8.11.13.15.17/450-650

Wire Drawing Machine

Straight Line Wire Drawing Machine LZ9/1200+Spool Take-up Machine GS 1250

Wire Drawing Machine

Inverted Vertical Drawing Machine

Wire Drawing Machine

Inverted Wire Drawing Machine

Wire Drawing Machine

Combined Wire Drawing Machine LZ2/800+LT8-13/650

Wire Drawing Machine

All Wire Drawing Machine All Wire Processing Machinery How It Is Built

Questions and Answers

OTO Type Wire Drawing Machine LW9/560 Controlied by PLC FAQ

What is the OTO Type Wire Drawing Machine LW9/560 Controlied by PLC used for?

It belongs to the wire drawing machine family. Wire drawing machines reduce rod and wire to the diameter the forming line needs, in dry, wet, straight line, inverted and combined configurations. The structural description and the manufacturer parameter table on this page describe what this particular model covers.

Can I get the technical specification for my size range?

The parameter table on this page is the manufacturer table for the model range. Tell us the exact fastener diameter and length you run and we will confirm which line of the table applies.

Is this machine built by Anchors Machinery?

All equipment is built at the company works in Ningbo, Zhejiang, China, in an 18,000 square metre workshop with its own machining facilities.

Can it be supplied together with the upstream and downstream machines?

Yes. Anchors Machinery is a machine manufacturer as well as a solution provider and project contractor, so complete fastener and stamping production lines can be supplied rather than single machines only.

What support do I get after delivery?

A rapid response technical team instructs machine operation and helps solve problems that come up during production, so that machine efficiency and your output are protected after installation.

How do I request a price for this machine?

Send the part drawing or a photo plus the required size range and output per minute to [email protected] or by WhatsApp on +86 185 5689 5898. Quotations are prepared against the model and tooling configuration that suits your part.
