Wire Drawing Machine
Straight Line Type Wire Drawing Machine
Wire drawing machines reduce rod and wire to the diameter the forming line needs, in dry, wet, straight line, inverted and combined configurations.
- Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
- Full manufacturer parameter table on this page
- Machine video available on request
- Rapid response technical team for operation and troubleshooting
Have a drawing? Send it straight to WhatsApp or email — there is no form to fill in.
Salient Features
With the introduction, assimilation and absorption of the foreign advanced technology and its essence, the straight line type wire drawing machine developed & produced by our factory is kind of wire drawing equipment suitable for drawing the steel wires with higher tensile strength & performance. This kind of machine fits the production of type cords, bead wires, wire for steel ropes, stainless steel wires and CO2 gas shield welding wires, etc. The capstan diameter range of such series varies from 350-900mm, for which the Max. inlet wire size is up to 14mm and the Min. is down to 0.7mm.
The machine features the functions of Human Computer Interaction (HMI), motor overheat protection, abnormal water pressure protection, length, set length alarm and breakdown display, etc.; The plane double enveloping wormgear / worm and narrow V-shaped combined belts with low noise running are applied to the transmission structure; The capstan cooling employs the integration of narrow seam water cooling with air blowing cooling, to bring on a better cooling effect. The speed adjustment using AC Variable Frequency Inverters and PLC of SIEMENS make is a kind of high-end selection for electrical components, as is characteristic of higher efficiency, easier operation, high automation and wider technical range.

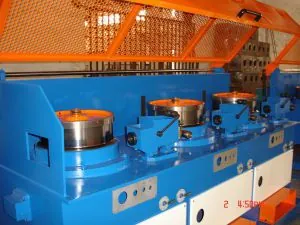

LZ12-560 Straight line type wire drawing machine
Main Specifications
| Item | Unit | LZ9/900 | LZ9/800 | LZ9/700 | LZ10/560 | LZ10/400 |
| Capstan diameter | mm | 900 | 800 | 700 | 560 | 400 |
| Passes of drawing | pass | 9 | 9 | 9 | 10 | 10 |
| Max. inlet diameter | mm | ø14-8 | ø10-8 | ø8-6.5 | ø6.5-5.5 | ø2.8-2.0 |
| Min. inlet diameter | mm | ø5-3 | ø5-3 | ø3-2.5 | ø2-1.8 | ø1.0-0.8 |
| Speed of drawing | m/min | 300 | 3600 | 480 | 720 | 840 |
| Inlet wire tensile strength | Mpa | <1300 | 1300 | 1300 | 1300 | 1300 |
| Total compressibility | % | 87.24-85.94 | 84.00-85.94 | 85.94-85.21 | 90.53-89.29 | 87.24-84.00 |
| Average compressibility | % | 20.45-19.58 | 18.42-19.58 | 19.58-19.13 | 21.00-20.02 | 18.61-16.74 |
| Motor power | kw | 110-90 | 90-55 | 75-55 | 45-22 | 15-7.5 |
