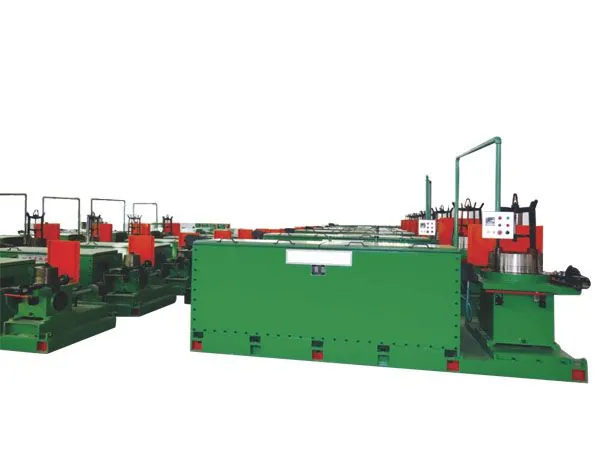

Heavy Wet Wire Drawing Machine LT8.11.13.15.17/450-650 manufactured by Ningbo Anchors Precision Machinery Co., Ltd.

Wire Drawing Machine

Heavy Wet Wire Drawing Machine LT8.11.13.15.17/450-650

Wire drawing machines reduce rod and wire to the diameter the forming line needs, in dry, wet, straight line, inverted and combined configurations.

  • Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
  • Full manufacturer parameter table on this page
  • Machine video available on request
  • Rapid response technical team for operation and troubleshooting
Request a Quote Talk to an Engineer Email Us

Have a drawing? Send it straight to WhatsApp or email — there is no form to fill in.

Salient Features

Reducer of the machine applies 8-module herringbone gear and the gear or take-up box is 10-module with speed ratio of 1:1.High-speed gear shaft material is 40Cr with high-frequency quenching,the round tower according to the user needs to be divided into:common ZG55 cast steel,common ZG55 cast steel with high-frequency quenching,common ZG55 cast steel with tungsten carbide coating Transmission bearings all use famous brand products,tale-up transmission system coupling sub-installation,the axis of the stress distribution is reasonable. Reducer box,water tank,take-up box are installed in the same base for easy installation and lifting.Surface of the water tank is painted high grade and quality paint,inside and outside of the electrical cabinet both use plastic-spraying process. It is divided into common control and frequency control. The electrical compinents used in all Chinese or international famous brand products.

Main Technical Parameters

Item Unit LT8/650-560 LT11/650-560 LT13/650-560 LT15/560-500 LT17/560-500 LT11/450 LT13/450 LT15/450 LT17/450
Diameter of capstan mm 650-560 650-560 650-560 560-500 560-500 450 450 450 450
Drawing dies time 8 11 13 15 17 11 13 15 17
Maximum diameter of inlet wire mm φ8-φ6.5 φ8-φ6.5 φ8-φ6.5 φ6.5-φ5.5 φ6.5-φ5.5 φ4.5 φ4.5 φ4.5 φ4.5
Minmum diameter of oulet wire mm φ3.7-φ3.0 φ2.7-φ2.2 φ2.5-φ2.0 φ1.6-φ1.4 φ1.4-φ1.2 φ1.7 φ1.4 φ1.2 φ1.0
Drawing line speed m/min 200 250 250 280 280 260 280 300 300
Inlet tensile strength Mpa ≤1150 ≤1150 ≤1150 ≤1150 ≤1150 ≤1150 ≤1150 ≤1150 ≤1150
Total compression rate % 78.7 88.54 90.53 93.94 95.36 85.73 90.23 92.89 95.06
Average compression rate % 15.91-17.58 17.88 16.58 17.05 16.52 16.22 16.44 16.16 16.22
Motor power Kw 160-132 160-132 160-132 132-110 132-110 90 75 75 75
Dimension mm 5800x2350x1800 5500x2200x1600
Weigh t 11 11 11 11 11 9.5 9.5 9.5 9.5

17B-4S Four Die Four Blow Bolt Former

Related Products

Other Models in Wire Drawing Machine

Same family, different size range and station count.

L Series Dry Type Continuous Wire Drawing Machine manufactured by Anchors Machinery

L Series Dry Type Continuous Wire Drawing Machine

Wire Drawing Machine

Wire Drawing Machine Major Auxiliary Equipment manufactured by Anchors Machinery

Wire Drawing Machine Major Auxiliary Equipment

Wire Drawing Machine

Straight Line Type Wire Drawing Machine manufactured by Anchors Machinery

Straight Line Type Wire Drawing Machine

Wire Drawing Machine

Straight Line Wire Drawing Machine LZ9/1200+Spool Take-up Machine GS 1250 manufactured by Anchors Machinery

Straight Line Wire Drawing Machine LZ9/1200+Spool Take-up Machine GS 1250

Wire Drawing Machine

Inverted Vertical Drawing Machine manufactured by Anchors Machinery

Inverted Vertical Drawing Machine

Wire Drawing Machine

Inverted Wire Drawing Machine manufactured by Anchors Machinery

Inverted Wire Drawing Machine

Wire Drawing Machine

OTO Type Wire Drawing Machine LW9/560 Controlied by PLC manufactured by Anchors Machinery

OTO Type Wire Drawing Machine LW9/560 Controlied by PLC

Wire Drawing Machine

Combined Wire Drawing Machine LZ2/800+LT8-13/650 manufactured by Anchors Machinery

Combined Wire Drawing Machine LZ2/800+LT8-13/650

Wire Drawing Machine

All Wire Drawing Machine All Wire Processing Machinery How It Is Built

Questions and Answers

Heavy Wet Wire Drawing Machine LT8.11.13.15.17/450-650 FAQ

What is the Heavy Wet Wire Drawing Machine LT8.11.13.15.17/450-650 used for?
It belongs to the wire drawing machine family. Wire drawing machines reduce rod and wire to the diameter the forming line needs, in dry, wet, straight line, inverted and combined configurations. The structural description and the manufacturer parameter table on this page describe what this particular model covers.
Can I get the technical specification for my size range?
The parameter table on this page is the manufacturer table for the model range. Tell us the exact fastener diameter and length you run and we will confirm which line of the table applies.
Is this machine built by Anchors Machinery?
All equipment is built at the company works in Ningbo, Zhejiang, China, in an 18,000 square metre workshop with its own machining facilities.
Can it be supplied together with the upstream and downstream machines?
Yes. Anchors Machinery is a machine manufacturer as well as a solution provider and project contractor, so complete fastener and stamping production lines can be supplied rather than single machines only.
What support do I get after delivery?
A rapid response technical team instructs machine operation and helps solve problems that come up during production, so that machine efficiency and your output are protected after installation.
How do I request a price for this machine?
Send the part drawing or a photo plus the required size range and output per minute to [email protected] or by WhatsApp on +86 185 5689 5898. Quotations are prepared against the model and tooling configuration that suits your part.
