Wire Drawing Machine
L Series Dry Type Continuous Wire Drawing Machine
Wire drawing machines reduce rod and wire to the diameter the forming line needs, in dry, wet, straight line, inverted and combined configurations. The published parameter table for this machine covers models 800, 560, 450, 350.
- Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
- Full manufacturer parameter table on this page
- Machine video available on request
- Rapid response technical team for operation and troubleshooting
Have a drawing? Send it straight to WhatsApp or email — there is no form to fill in.
Salient Features
Usage:The set of the wire drawing machines is a ideal equipment drawing wire stock high, medium and carbon steel, as well as copper,alumium, and alloy. The machines are applied to drawing wire in the factories such as wire-steel factory, metal mesh factory and nail making factory etc.
Structure:The equipment consists of main reduction box, die casing, wheel frame, wire brace and electeical control system. The spinning drawing blocks are driven by JZT or Y series motor, with gear coupling runs changeful gears to reduce speed. The drawing blocks are verticaly fixed in sealed box body. The gear pair are lubricated with oil.
In order to lower residual heat on the surface of the block, the cooling means is installed in interwall of the block.
The machine runs with carwl or linkage. The safety halt gear is installed by the position of operating block.
L-1-6/560 type
Main Specifications:
| Model | Units | 800 | 560 | 450 | 350 |
| Inlet wire tensile strength | kg/mm2 | – | δ>More than 110 | 128 | δ>140 |
| Max dia. of inlet wire | mm | 10-14 | 6.5 | 3.4 | 2.5 |
| Min dia. of outlet wire | mm | 6.0 | 2 | 1 | 0.75 |
| Drawing passes/Dia. of block | — | 1-800 | 1-6/560 | 1-7/450 | 1-6/350 |
| Max average compressibility | % | 25 | About 30 | About 20 | About 21 |
| Designed total compressibility | % | – | About 78-88.5 | About 77.9 | About 78 |
| Max speed of block | m/min | 0.4 | 245 | 346.9 | 200 |
| Motor power/Block | kw | 80 | 18.5-30 | 7.5-11 | 7.5-11 |
| Weight | kg | 4500 | 2000 | 1500 | 1000 |
| Overall dimensions | mm | 9730x3340x2020 | 1700x1150x1750 | 1520x810x1700 | 1400x800x1500 |
Horizontal Wire-drawing machine
Main Specifications
| Model | 500 | 400 |
| Wire drawing specification | 10 | 8 |
| Reel specification | ø500 | ø400 |
| Rotational speed/min | 25 | 25 |
| Motor power | 18.5 | 15 |
| Voltage(v) | 380 | 380 |
| Weight(kg) | 1300 | 1100 |
| Equipped with JZQ-type reduction box | 500 type | 400 type |
LD-1/550-1400 Vertial Drop Wire-drawing Machine
| Model | 1400 type | 1200 type | 1000 type | 800 type |
| Dia of block(mm) | 1400 | 1200 | 1000 | 800 |
| Max dia. of inlet wire(mm) | ø38 | ø28 | ø20 | ø12 |
| Min dia. of inlet wire(mm) | ø12 | ø12 | ø6 | ø6 |
| Speed of drawing V(m) | 30 | 40 | 50 | 70 |
| Designed compressibility | 25% | 25% | 25% | 25% |
| Motor power (kw) | 75-110 | 55-75 | 45-55 | 30-37 |
| Weight (kg) | 10000 | 8000 | 6000 | 5000 |
| Overall dimensions (mm) | 3000×2300 x2600 |
2800×2300 x2600 |
2500×2000 x2500 |
2300×1500 x2500 |
Spring Lock Washer Flat Wire Drawing Machine
Related Products
Other Models in Wire Drawing Machine
Same family, different size range and station count.
Wire Drawing Machine Major Auxiliary Equipment

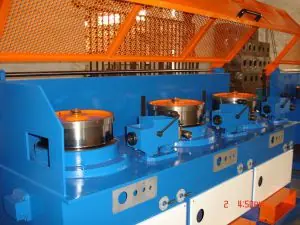

Straight Line Type Wire Drawing Machine
Heavy Wet Wire Drawing Machine LT8.11.13.15.17/450-650

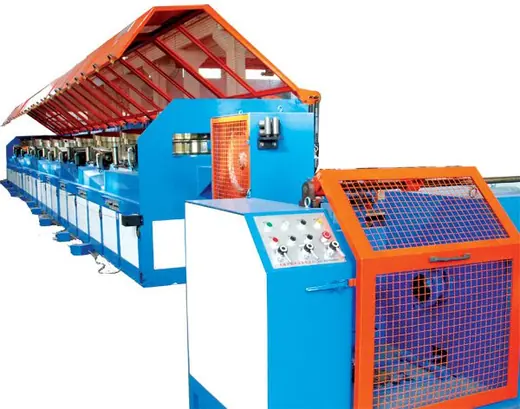

Straight Line Wire Drawing Machine LZ9/1200+Spool Take-up Machine GS 1250

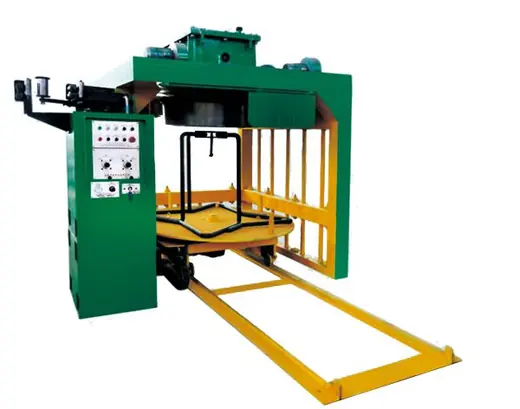

Inverted Vertical Drawing Machine
