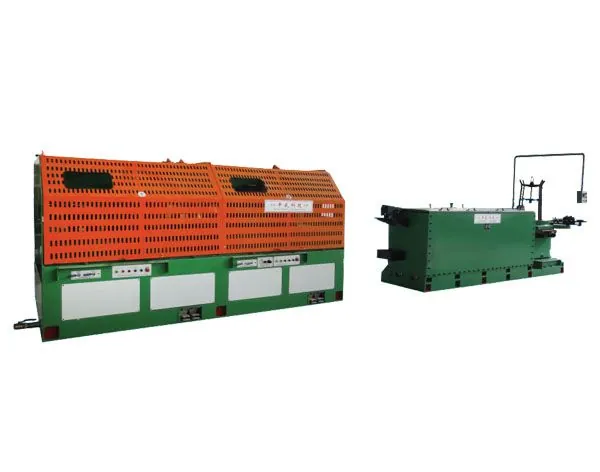

Combined Wire Drawing Machine LZ2/800+LT8-13/650

Wire drawing machines reduce rod and wire to the diameter the forming line needs, in dry, wet, straight line, inverted and combined configurations.

Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
Full manufacturer parameter table on this page
Machine video available on request
Rapid response technical team for operation and troubleshooting

Request a Quote Talk to an Engineer Email Us

Have a drawing? Send it straight to WhatsApp or email — there is no form to fill in.

Salient Features

This equipment is designed for large diameter steel wire rod,extending drawing process,the max inlet diameter is 10mm.LZ2/800 straight line wire drawing machine use hardened gear reducer,the manufacture technology is the same as straight line wire drawing machine.LT8-13/650 Wet wire drawing machine use 10 modulus herringbone gear,the bevel gear of take-up box use 12 modulus,and speed ratio is 1:1.

This equipment has the man-machine dialogue,motor over temperature protection,meter calculation,full meter alarm,fault display functions.The control type adopts the PLC control,is a kind of high efficiency,energy saving,convenient operation,high degree of automation,wide range of technology advanced drawing equipment,and with low investment cost,low maintenance cost,widely used for drawing big diameter wire rope and spring wire.

Main Technical Parameters

drawing big diameter wire rope and spring wire.

Item	Unit	Data
Maximum diameter of inlet wire	mm	φ10
Minmum diameter of oulet wire	mm	φ4.0- φ2.3
Drawing line speed	m/min	180-200
Inlet tensile strength	Mpa	≤1150
Total compression rate	%	84-95
Average compression rate	%	17-18
Motor power	Kw	55×2+160
Dimersions	mm	11000x4000x2000
