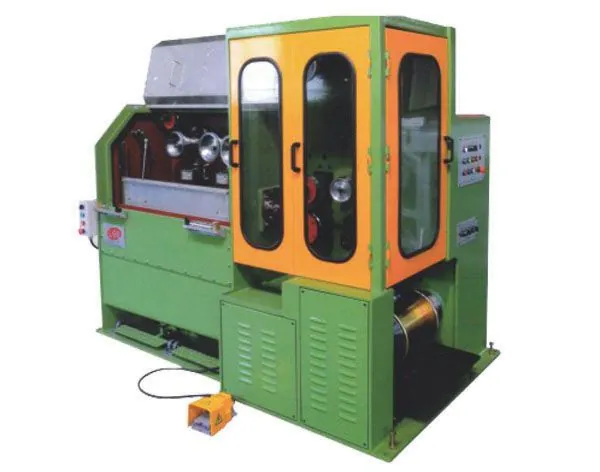

Fine Wire Drawing Machine
Wire drawing machines reduce rod and wire to the diameter the forming line needs, in dry, wet, straight line, inverted and combined configurations.
- Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
- Full manufacturer parameter table on this page
- Machine video available on request
- Rapid response technical team for operation and troubleshooting
Have a drawing? Send it straight to WhatsApp or email — there is no form to fill in.
Salient Features
This product is new equipment for solar photovoltaic industry,mainly applicable for precision drawing high carbon steel wire with micro diameter,is the most professional sawing silicon wafers machine.This machine is equipped with most mature control technology,especially using the advanced automatically take-up technology,with more than 10 years of professional manufacturing technology,broke through the conventional drawing equipment concept.This product has the following features:high intelligence,high stability,high durability,etc.It can meet a variety of inlet and outlet drawing process,low operation cost,high production efficiency,is typical high production capacity equipment.
Main Technical Parameters
| Equipment Model | LT160-23-260 | LT160-21-275 | LT320-17-360 | LT320-15-360 |
| Applicable Production | Galvanized steel wire,high carbon steel wire | Copper clad steel wire,resistance wire | High carbon ,high-intensity steel wire | CO-protected welding wire |
| Drawing dies | 23 | 21 | 17 | 15 |
| Outlet range | 0.10-0.5mm | 0.15-0.5mm | 0.5-1.0mm | 1.0-1.6mm |
| Maximum speed | 20m/s-1 | 18m/s-1 | 10m/s-1 | 8m/s-1 |
