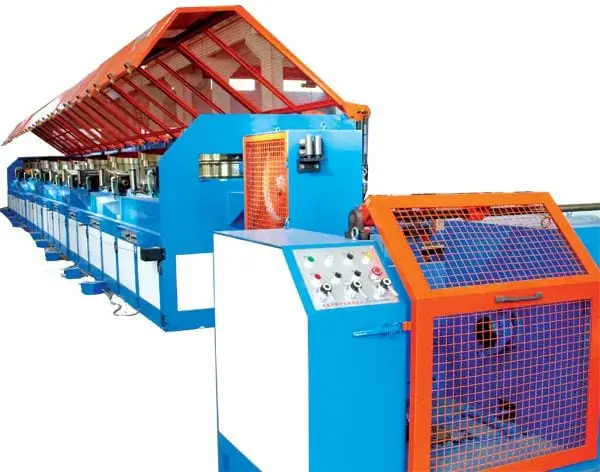

Straight Line Wire Drawing Machine LZ9/1200+Spool Take-up Machine GS 1250
Our straight line wire drawing machine applies advanced international technology,with digestion and absorption,the drawing machine is applicable for high…
- Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
- More than twenty years experience in cold and hot forging and metal stamping equipment
- Rapid response technical team for operation guidance and production support
Salient Features of Straight Line Wire Drawing Machine LZ9/1200+Spool Take-up Machine GS 1250
Our straight line wire drawing machine applies advanced international technology,with digestion and absorption,the drawing machine is applicable for high intensity and performance demand.It mainly applied for the production of P.C wire,steel curtain wire,bead wire,steel wire for rope,spring steel wire,stainless steel wire,gas welding wire,arc welding wire,etc.The capstan diameter of the series products is φ350-φ1200mm with maximum inlet diameter of φ14mm and minimum outlet diameter of 0.7mm.
The equipment contains the function of human-machine dialogue,over-temperature protection for motor,alarm for abnormal water pressure,fault display,etc.Its transmission structure is hardened gear reducer+narrow V belt or planar double worm gear reducer+narrow V belt with low noise.The capstan applies the combination of narrow water cooling and air cooling with good cooling effect.AC variable-frequency and Siemens PLC is used for speed adjustment.Generally,it is a kind of efficient and advanced drawing machine equipment with easy operation,high degree of automation and broad process scope.
Main Technical Parameters of Straight Line Wire Drawing Machine LZ9/1200+Spool Take-up Machine GS 1250
| Item | Unit | LZ9/1200-1000 | LZ9/1000-800 | LZ10/800 | LZ10/600(560) | LZ10/450(400) |
| Diameter of capstan | mm | 1200-1000 | 1100-800 | 800(700) | 600(560) | 450(400) |
| Drawing times | time | 9 | 9 | 10 | 10 | 10 |
| Maximum diameter of inlet wire | mm | φ14-φ10 | φ10-φ8 | φ9-φ6.5 | φ6.5-φ5.5 | φ4.5-φ2.5 |
| Minmum diameter of oulet wire | mm | φ5-φ3.5 | φ3.5-φ2.8 | φ2.8-φ2.0 | φ2.0-φ1.7 | φ1.4-φ0.8 |
| Drawing line speed | m/min | 300 | 360 | 480 | 720 | 840 |
| Inlet tensile strength | Mpa | ≤1300 | ≤1300 | ≤1300 | ≤1300 | ≤1300 |
| Total compression rate | % | 87.24 | 87.75 | 90.53 | 90.53 | 90.32 |
| Average compression rate | % | 20.45 | 20.8 | 21 | 21 | 20.83 |
| Motor power | Kw | 110-75 | 90-45 | 75-37 | 37-22 | 15-7.5 |
