Wire Drawing Machine

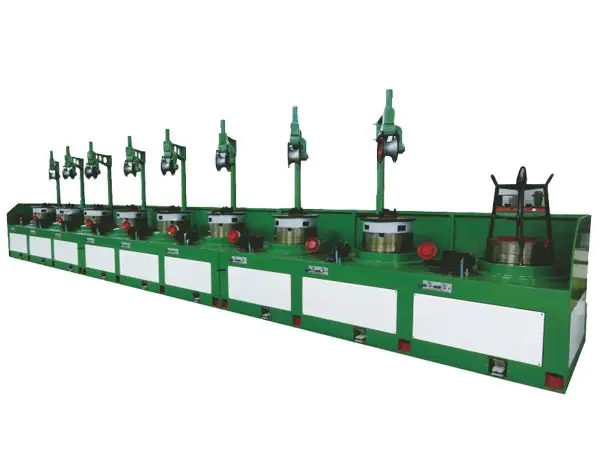

OTO Type wire drawing machine LW9/560 Controlied by PLC
Main products include steel wire rod pre-treatment production line,rough wire drawing line ,fine drawing line, gas welding wire, arc welding wire production…
- Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
- More than twenty years experience in cold and hot forging and metal stamping equipment
- Rapid response technical team for operation guidance and production support
Salient Features of OTO Type wire drawing machine LW9/560 Controlied by PLC
Main products include steel wire rod pre-treatment production line,rough wire drawing line ,fine drawing line, gas welding wire, arc welding wire production line of high speed winding machine.
1.Rough wire drawing line:
Duck pay-off frame(Overhead pay-off frame)→Brake→Mechanical wire descaling machine→acidpicking and drying →boronation→LW560 variable frequency speed regulation OTO type wire drawing machine→GS630 Spool take-up machine (ZX600 Coiler).
2.Fine wire drawing line:
Spool pay-off machine(Rotation pay-off machine)→LW400 high speed OTO type wire drawing machine→GS630 Spool take-up machine.
3.High speed winding:
Spool pay -off machine(with damping)→Tension devioe→high-speed winding machine.
Main Technical Parameters of OTO Type wire drawing machine LW9/560 Controlied by PLC
| Diameter of capstan | mm | 560 | 400-360 |
| Drawing dies | time | 9 | 9 |
| Maximum diameter of inlet wire | mm | φ6.5 | φ3.0-φ2.5 |
| Minmumdiameter of outlet wire | mm | φ2.0 | φ0.9-φ0.7 |
| Total compression rate | % | 90.53 | 91 |
| Average compression rate | % | 23.04 | 23.5 |
| Maximum line speed | m/s | 6 | 12 |
| Motor power | Kw | 18.5-30 | 7.5-11 |
| Dimension | mm | 12000x1850x2250 | 9000x1650x2250 |
| Weight | t | 2 | 1.5 |
| Inlet wariable– frequency | PLC control | PLC control |
