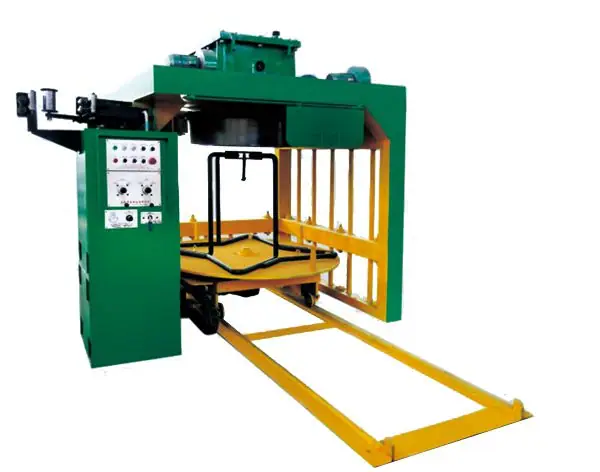

Inverted high speed vertical wire drawing machine
This Inverted high speed vertical wire drawing machine is developed for the non-slip drawing of medium & low carbon steel wire, stainless steel wire,special…
- Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
- More than twenty years experience in cold and hot forging and metal stamping equipment
- Rapid response technical team for operation guidance and production support
Salient Features of Inverted high speed vertical wire drawing machine
This Inverted high speed vertical wire drawing machine is developed for the non-slip drawing of medium & low carbon steel wire, stainless steel wire,special shaped steel wire and nonferrous metals with thick & medium diameter,especially suitable for the standard parts and supermarket shelf industry. The max inlet diameter is 40mm,and the capstan diamerer is 550-1400mm.
Transmission system adopts cycloid reducer,hardened gear reducer,or non-standard reducer.Electrical control system adopts international famous converter with stable performance.
Features:
1.It is suitable for large coil steel wire continuous production,can take up heavy and big diameter wires.
2.Easy operation,simple and reliable control,safety production and convenient maintenance.
3.Application of 3-phase AC variable-frequency speed adjustment system,realizes smooth speed regulation, and saves more than 30% electric power.
Main Technical Parameters of Inverted high speed vertical wire drawing machine
| Model | DL800 | DL1000 | DL1200 | DL1400 |
| Dia. Of capstan(MM) | 800 | 100 | 1200 | 1400 |
| Dia. Of inlet wire(MM) | φ5.5-φ8 | φ9-φ15 | φ17-φ25 | φ25-φ48 |
| Out coming dia.(MM) | φ4.5-φ7.3 | 7.69-φ13.6 | φ16.3-φ22.9 | φ23.6-φ47.2 |
| Intensity of material(Mpa) | ≤850 | ≤850 | ≤850 | ≤850 |
| Compression rate(%) | ≤25% | ≤20% | ≤15% | ≤15% |
| Max. drawing speed(M/Min) | 70 | 60 | 30 | 20 |
| Motor power(KW) | 37 | 55 | 90 | 110 |
