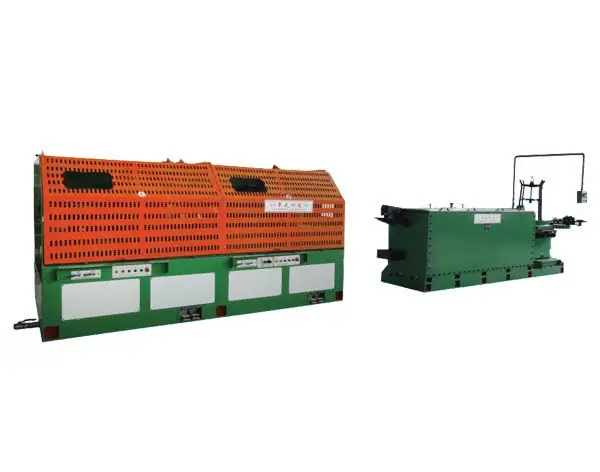

Combined Wire Drawing Machine LZ2/800+LT8-13/650
This equipment is designed for large diameter steel wire rod,extending drawing process,the max inlet diameter is 10mm.LZ2/800 straight line wire drawing…
- Motor power55×2 +160 Kw
- ItemData
- Maximum diameter of inlet wireφ10 mm
- Minmum diameter of oulet wireφ4.0- φ2.3 mm
- Drawing line speed180-200 m/min
- Inlet tensile strength≤1150 Mpa
- Total compression rate84-95 %
- Average compression rate17-18 %
- Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
- More than twenty years experience in cold and hot forging and metal stamping equipment
- Rapid response technical team for operation guidance and production support
Salient Features of Combined Wire Drawing Machine LZ2/800+LT8-13/650
This equipment is designed for large diameter steel wire rod,extending drawing process,the max inlet diameter is 10mm.LZ2/800 straight line wire drawing machine use hardened gear reducer,the manufacture technology is the same as straight line wire drawing machine.LT8-13/650 Wet wire drawing machine use 10 modulus herringbone gear,the bevel gear of take-up box use 12 modulus,and speed ratio is 1:1.
This equipment has the man-machine dialogue,motor over temperature protection,meter calculation,full meter alarm,fault display functions.The control type adopts the PLC control,is a kind of high efficiency,energy saving,convenient operation,high degree of automation,wide range of technology advanced drawing equipment,and with low investment cost,low maintenance cost,widely used for drawing big diameter wire rope and spring wire.
Main Technical Parameters of Combined Wire Drawing Machine LZ2/800+LT8-13/650
| Item | Unit | Data |
| Maximum diameter of inlet wire | mm | φ10 |
| Minmum diameter of ouletwire | mm | φ4.0- φ2.3 |
| Drawing line speed | m/min | 180-200 |
| Inlet tensile strength | Mpa | ≤1150 |
| Total compression rate | % | 84-95 |
| Average compression rate | % | 17-18 |
| Motor power | Kw | 55×2+160 |
| Dimersions | mm | 11000x4000x2000 |
